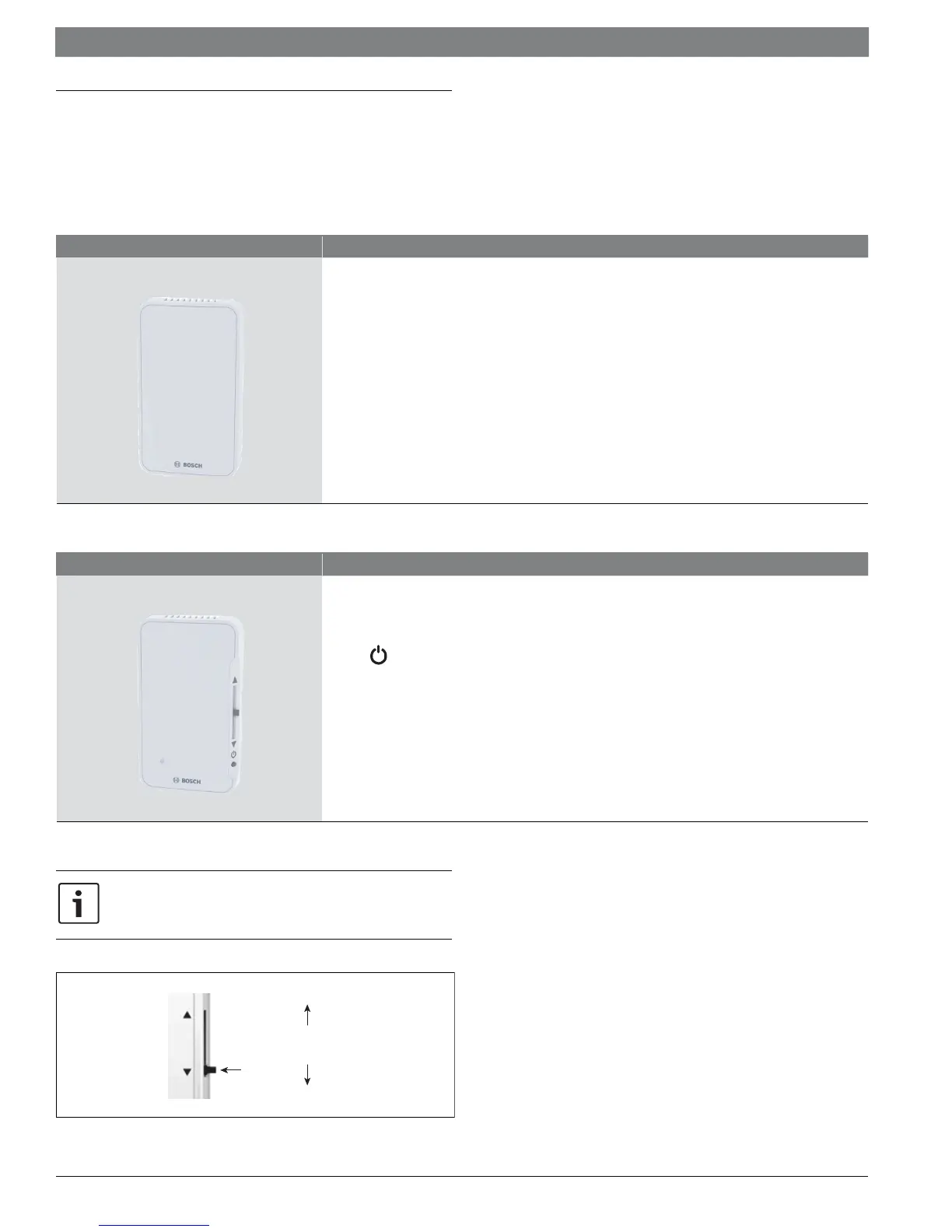

Installation & Operation Manual Bosch ZS Series Zone Sensors R1 | 7
Bosch Thermotechnology Corp. | 02 .2018
Data subject to change
5 Features
The ZS Series Zone Sensors are thermistor-based, communicating temperature
sensors that may optionally sense humidity or CO2 . The ZS Sensors are fi eld
installed and are wired to the Rnet port of the DDC Control Air 5600, 5830, or
6120 controller. A maximum of 5 ZS sensors may be daisy-chained and used for
applications where averaging of multiple readings for temperature is required.
Sensor Features
ZS Base
Local access port
No user control
Available in:
— Temperature only: ZS-1 (8733951033)
— Temperature with Humidity: ZS-1H (8733951034)
Table 5
Sensor Features
ZS Slidebar
Slide potentiometer for temperature setpoint adjustment to make the zone warmer or cooler
button to override the schedule and put the zone in an occupied state
Green LED to indicate occupied state
Local access port
Available in:
— Temperature only: ZS-1S (8733951035)
Table 6
Slide the sensor’s potentiometer up to make the zone warmer or down
to make it cooler. The control program determines how much you can
adjust the set point.(see fi gure# 2)
Figure 2
Slide
Warmer
Cooler
