English 11
Side Hinge Door Alignment Procedure
1. Open the door to
approximately 135°.

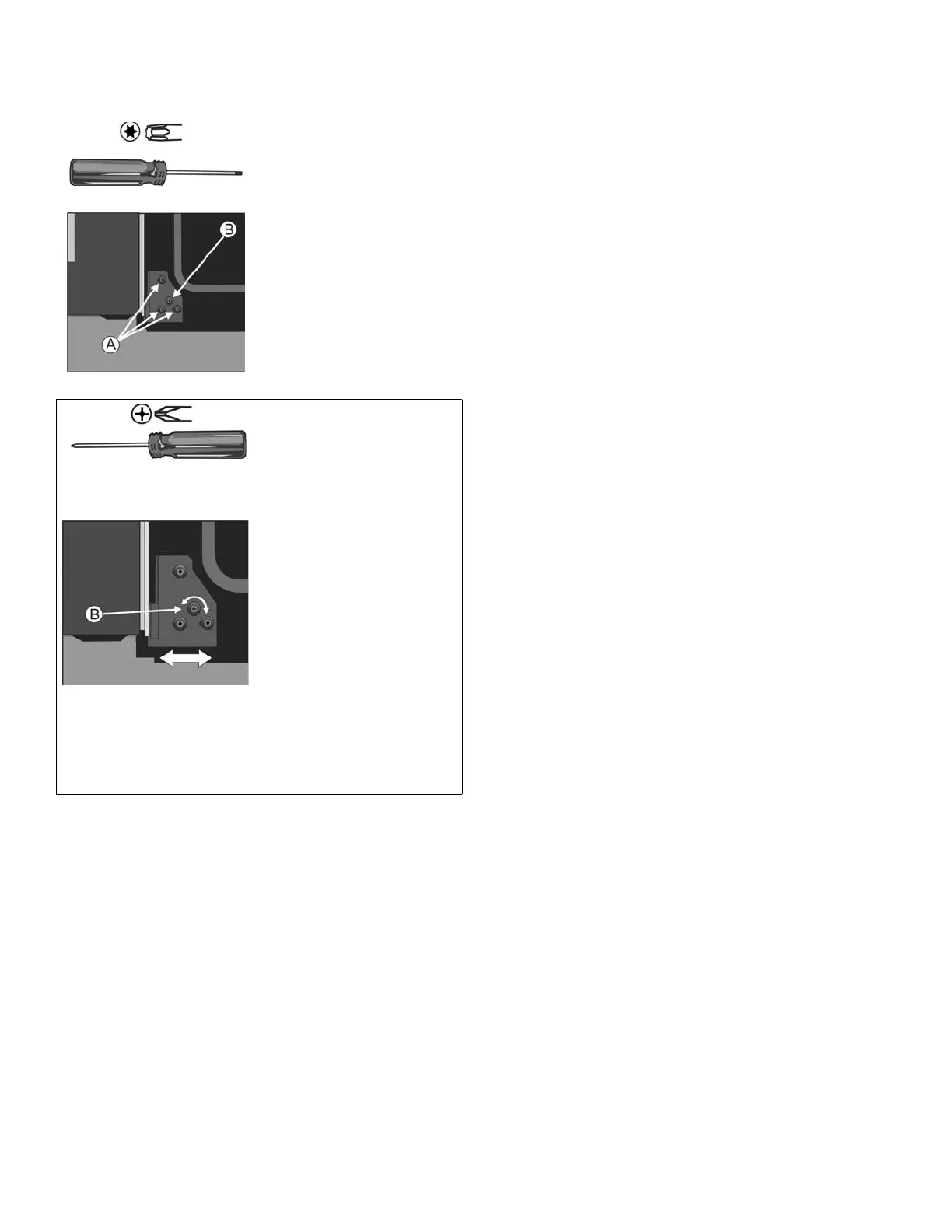

2. Using a Torx T-20 star-
head screwdriver,
loosen the 3 screws
(A) on the lower hinge
by 1 to 2 full turns.
Note: All adjustment is
made with the lower
hinge only. The upper
hinge is fixed in place
and cannot be
adjusted.
3. Using a #2 philip
s
head screwdriver, turn
the cam (B) right or left
to adjust the hinge
po
sition in the desire
d
direction.
Note: 1mm of hinge
movement (left or
right) will move the
door up or down
a
pproximately 1.5m
m
at the door catch.
4. Re-tighten the screws
before closing the
door to test. Be careful
not to overtighten.
5. Check for proper door
alignment. Repeat
adjustment procedur
e
as necessary.
