Installation Instructions
Bosch 96% AFUE Condensing Gas Furnace - BTC 770503101 J (06.2023)

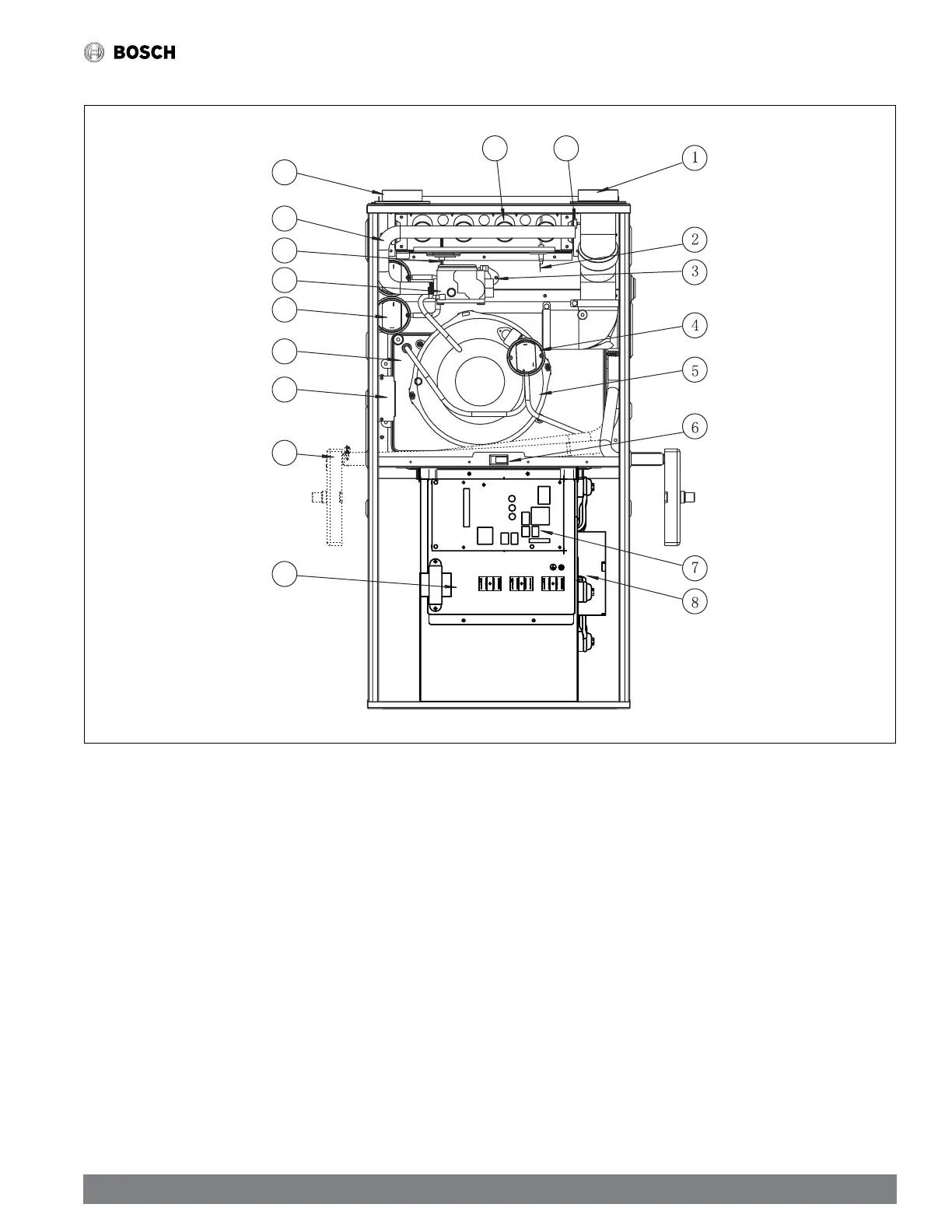

Figure 48
9
10
11
12
13
14
15
16
17
18
19
COMPONENT IDENTIFICATION:
1. Outlet Flue Vent
2. Flame Sensor
3. Chamber Limit Switch-Fixed
4. Condensate Overflow Switch
5. Inducer
6. Door Switch
7. Integrated Control Module
8. Blower
9. Transformer
10. Condensate Trap
11. Juction Box
Please contact your local installer or dealer for replacement parts.
12. Condensate Collector
13. Pressure Switch
14. Two-Stage Gas Valve
15. Hot Surface Ignitor
16. Gas Manifold
17. Air Inlet
18. Burner
19. Rollout Limit Switch
