English 9
23
7/8"
(606mm)
22
"
(559mm)
29
3/4"
(755mm)
28
1/2"
(724mm)
24
"
(610mm)
40
"
(1016mm)
38
1/8"
(968mm)
9
3/4"
(248mm)
27
13/16"
(706mm)
40
7/16"
(1027mm)

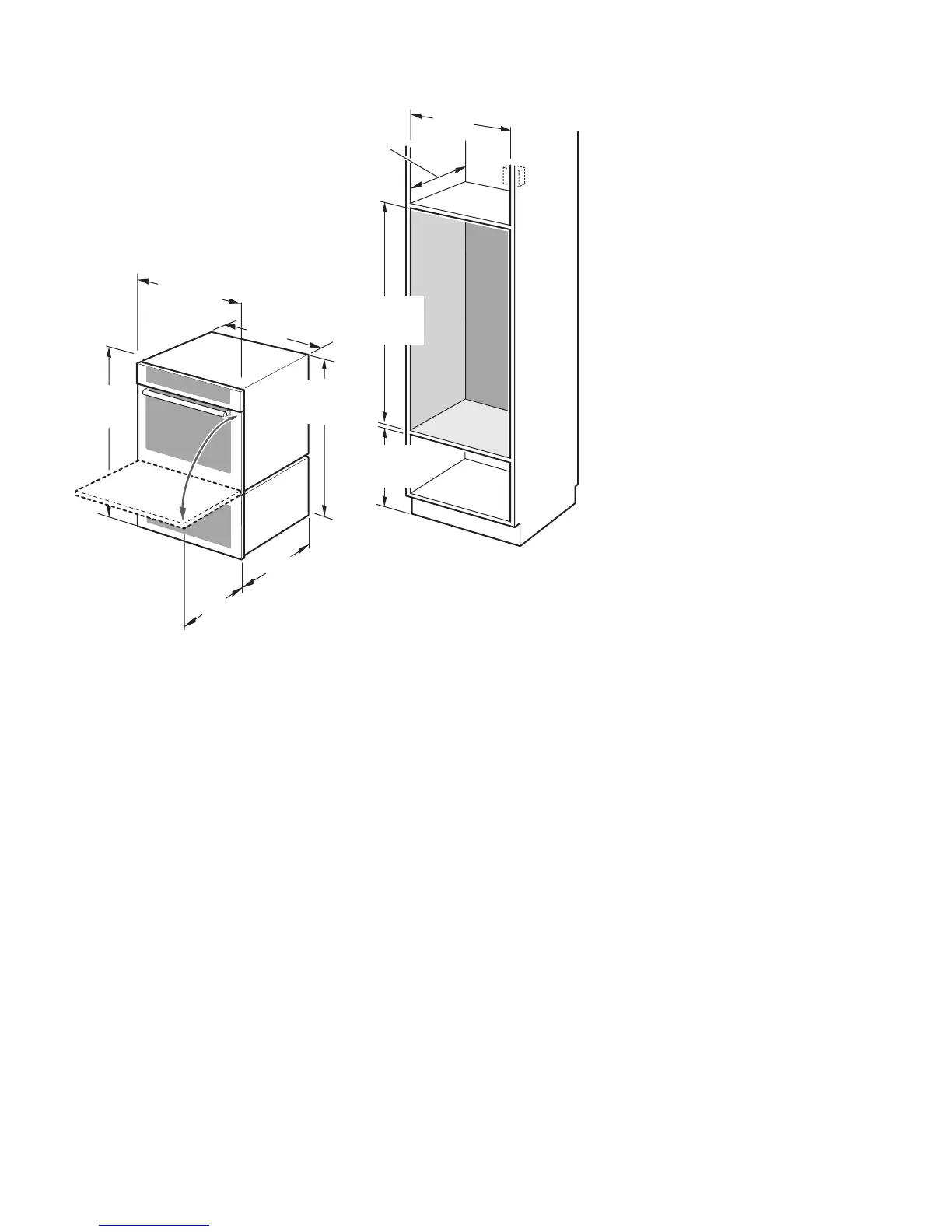

Combo Oven with Warming
Drawer 30”
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4”
space between the side of the oven
and the wall/door.
For oven support, install 2x4’s
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be located
above the unit to facilitate connecting
and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 290 lbs (132 kg).
