9 Disassembly Guide
This part is for reference, the photos may have slight differences with
your machine.
9.1 Models: 9K Regular: BMS500-AAS009-1CSXRA
9.1.1 Removing the panel plate
1. Stop operation of the system and turn “OFF” the power breaker.
2. Remove the big handle À rst, then remove the top cover (3 screws).
3. Remove the screws of front panel (7 screws).

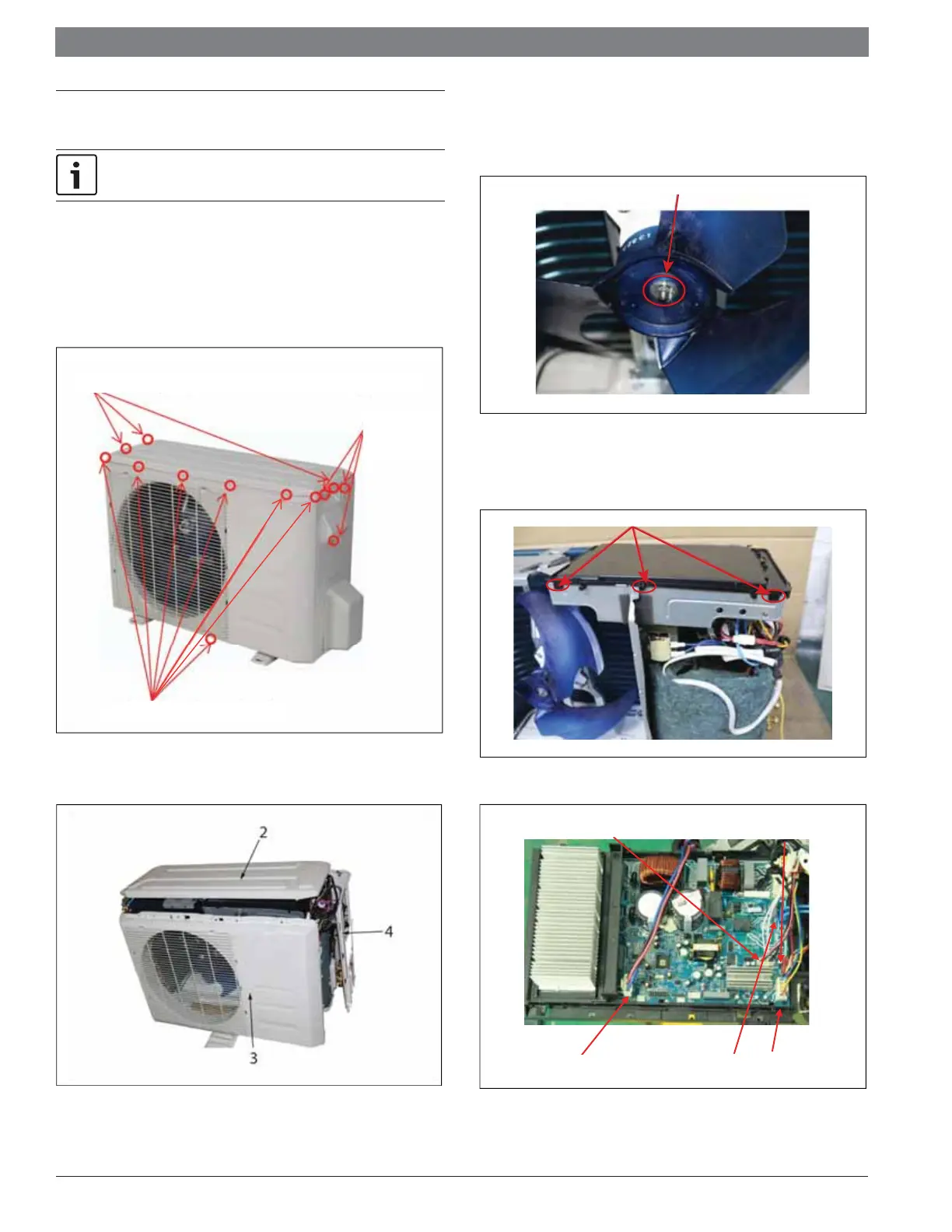

Figure 69
3 screws of
big handle
Screws of top panel (3 screws, 1 screw
is under the big handle)
Screws of front panel (7 screws)
4. Remove the screws of the right side panel (11 screws).
Figure 70
9.1.2 Removing the fan assembly
1. Remove the panel plate.
2. Remove the nut afÀ xing the fan, and remove the fan.
Figure 71
3. After removing the top cover, unÀ x the hooks and then open the electronic
control box cover.
Figure 72
Figure 73
T3, T4, T5 sensor Electronic expansion valve
compressor
4 way valve
Motor
To Next Page
