Service Manual
Bosch Climate 5000 Series Ductless Air Conditioner / Heat Pump Multi Zone Outdoor Units (01.2023)
9 Disassembly Guide
Pictures are provided as a reference only. Each unit will be different
depending on the your model number.
9.1 Outdoor Unit - BMS500-AAM018-1CSXRC

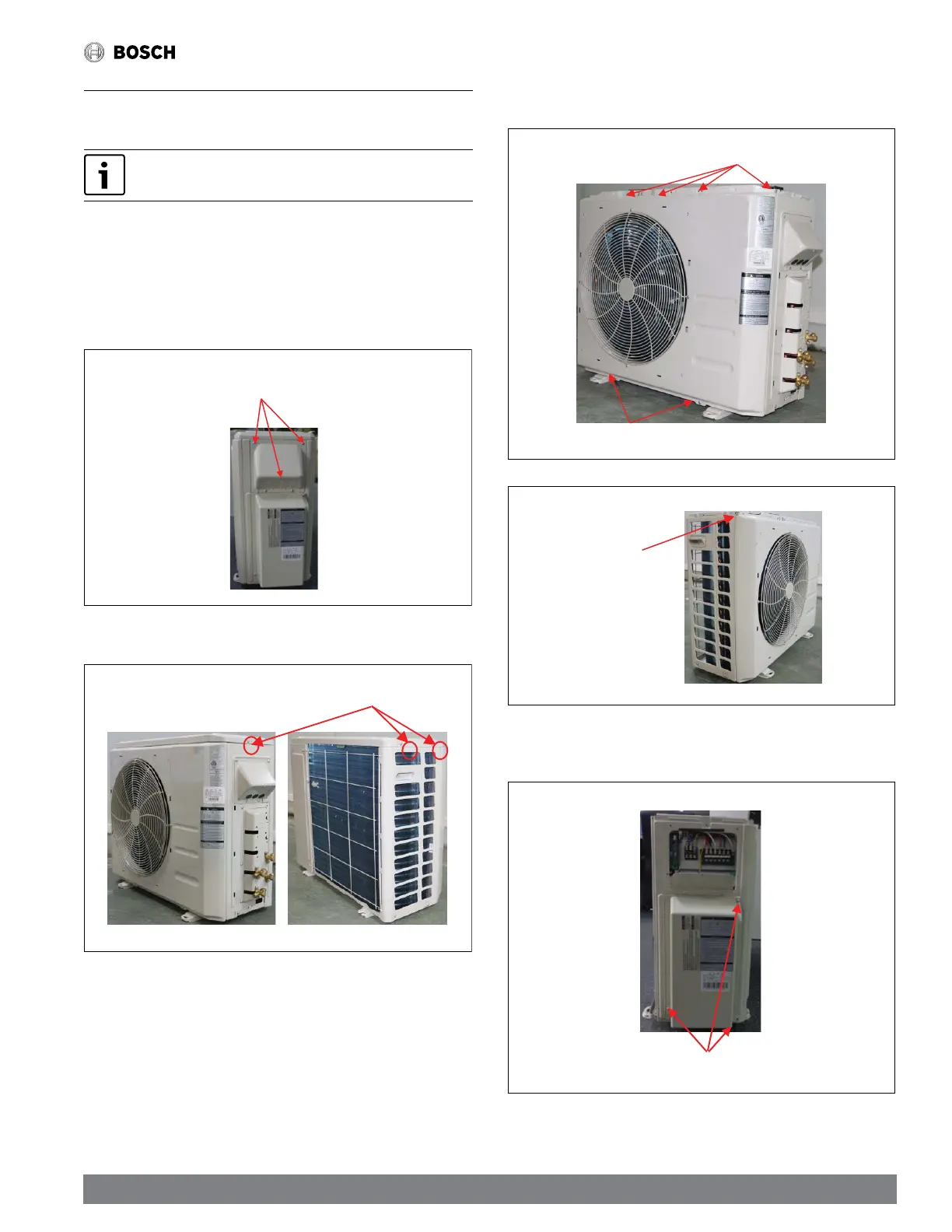

9.1.1 Removing the panel plates
1. Stop operation of the system and turn "OFF" the power at the disconnect.
2. Remove the big handle (3 screws).
Figure 92
Screws of
big handle
3. Remove the top cover (3 screws).
Figure 93
Screws
4. Remove the front panel (7 screws).
Figure 94
Screws of front panel
Screws of front panel
Figure 95
Screws of front panel
5. Remove the screws of water collector, and remove the water collector. (3
screws)
Figure 96
Screws of water collector
To Next Page
