Quad screen
To view quad displays:
– Press the quad key.
– A quad display of camera pictures appears on the active monitor.
Full-screen
To view a full-screen shot of a camera:
– Press a camera key.
– A full-screen shot of the camera that was selected appears.
Multi-screen
To view multi-screen displays on monitor A:
– Press the multi-screen key.
– A multi-screen display of camera pictures appears on the active monitor.
Sequence
To view a sequence of live camera pictures of several cameras:
1. Press the sequence key.
– A sequence of camera pictures appears, each for a pre-programmed dwell time.
2. Press the sequence key to stop sequencing.

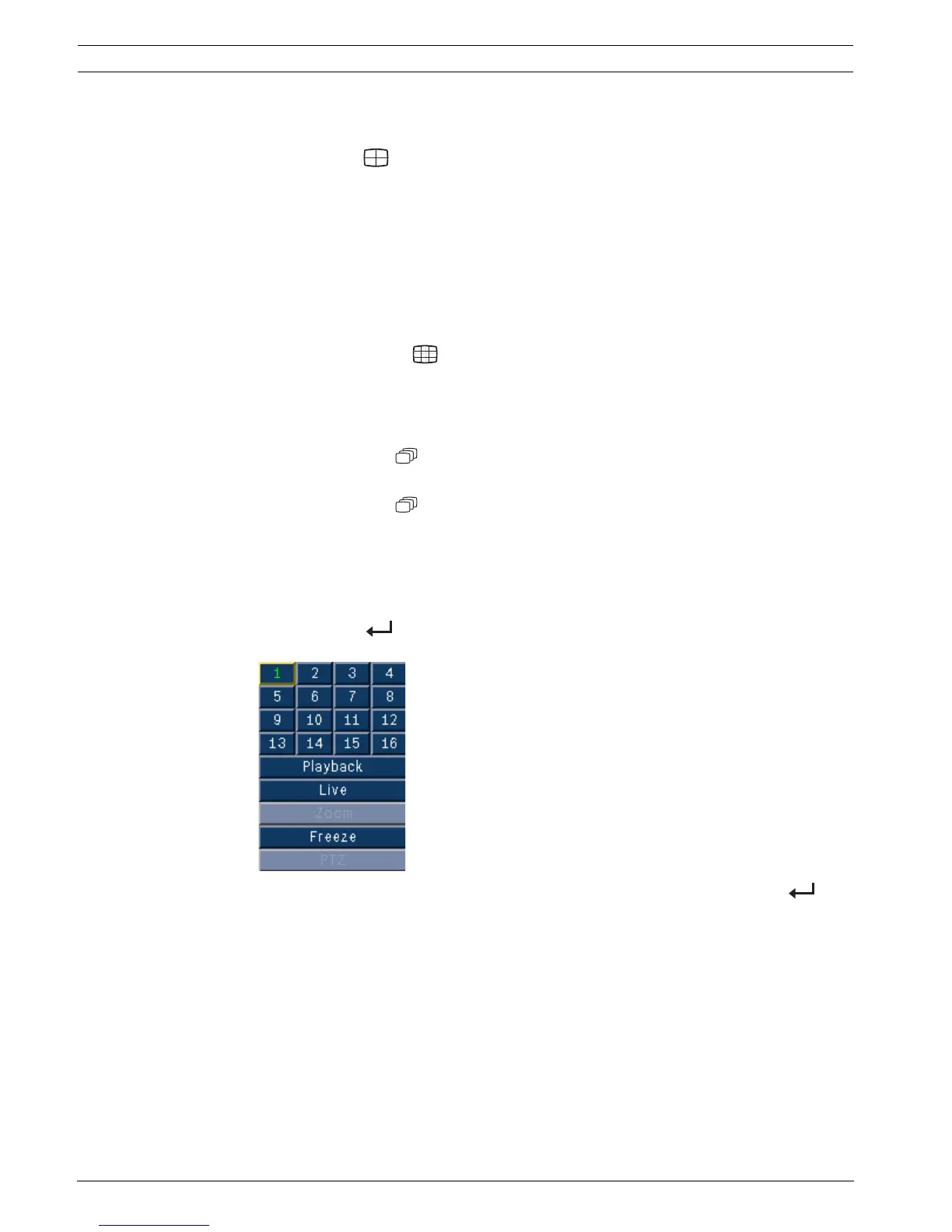

Cameo assignment
Assigning cameras to cameos in a quad or multi-screen view:
1. The cameo with the yellow border is the selected cameo.
2. Use the arrow keys to select a cameo.
3. Press the enter key to display the Cameo Menu.
4. Use the arrow keys to select a camera to put in the cameo and press the enter key.
5. Alternatively, right click a cameo with the mouse and choose a video input from the
Cameo Menu.
This cameo assignment is used in playback mode as well as in live mode.
