Bosch e103022 - Connecting Water and Electrical Lines

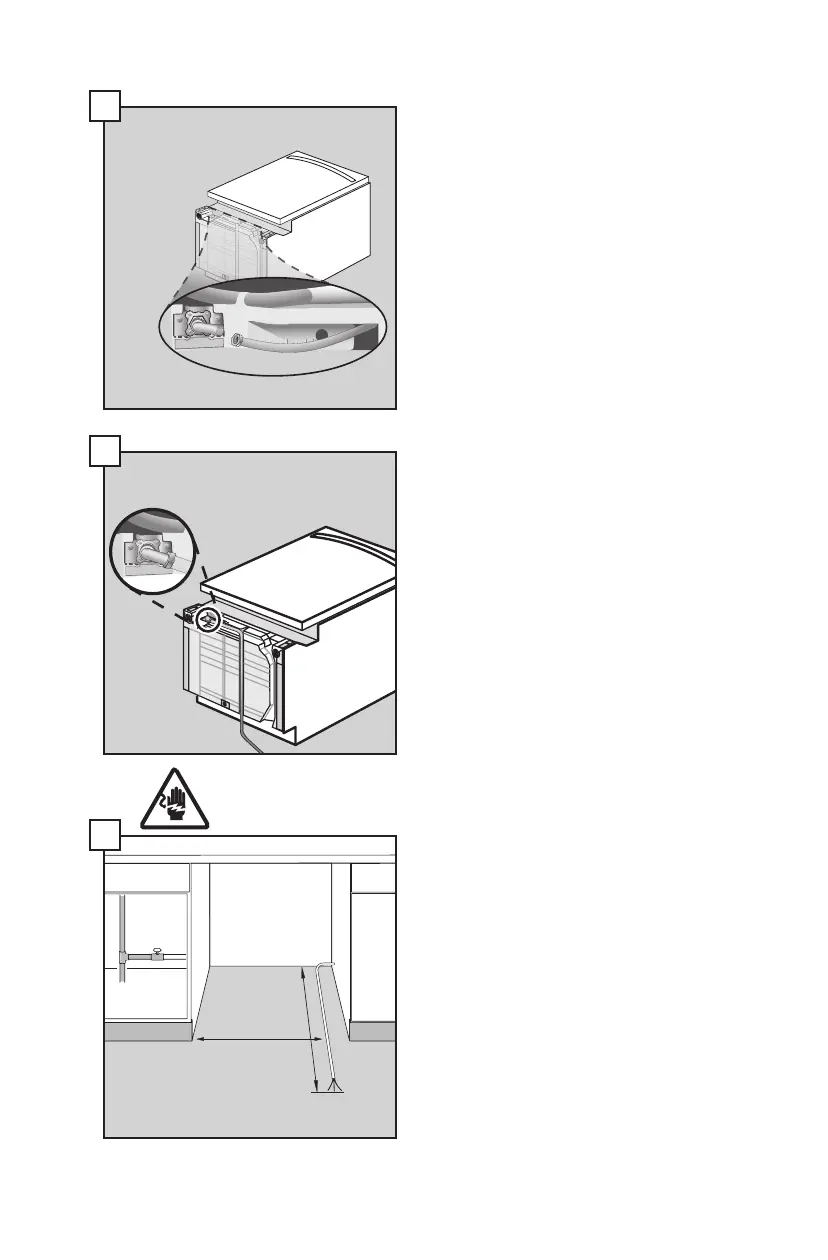

Attach 90° elbow joint to dishwasher
oriented as shown. Do not over-
tighten.
Attach hot water line to 90° elbow
and route underneath machine
toward hot water connection. Ensure
the hose does not contact any
moving parts beneath the unit.
Turn power off at fuse box. Extend
cable approximately 21" (533.4 mm)
from the opening’s left side. Extend
the cable 30" (762 mm) from the
back wall.
3
4
21"
(533.4 mm)
30"
(762 mm)
5
9
