Bosch EP018 - Wiring Diagrams Overview; UPM Status LED Blink Codes; Wiring Diagram Notes

Wiring Diagrams | 37EP Series
8733953041 (2019/01)
EP Series

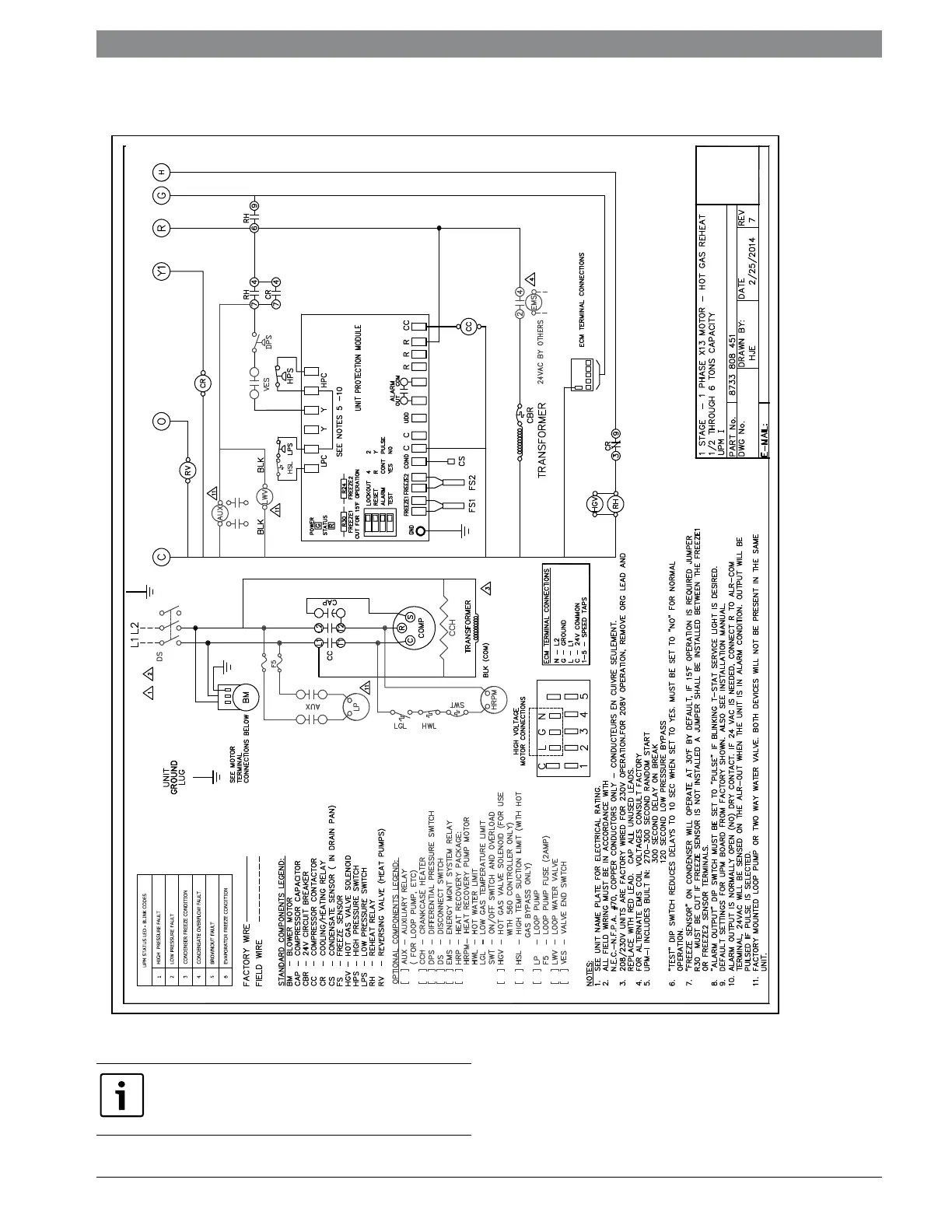

WIRING DIAGRAMS
Figure # 23
FOR REFERENCE ONLY Actual unit wiring
may vary from this example. Always refer to the
wiring diagram attached to the unit.
