Bosch FHP EC120 - Wiring Diagrams; Wiring Diagram for UPM II 2 Stage Economizer

Wiring Diagrams | 45EC Series
T111970289 (2015/01)EC Series

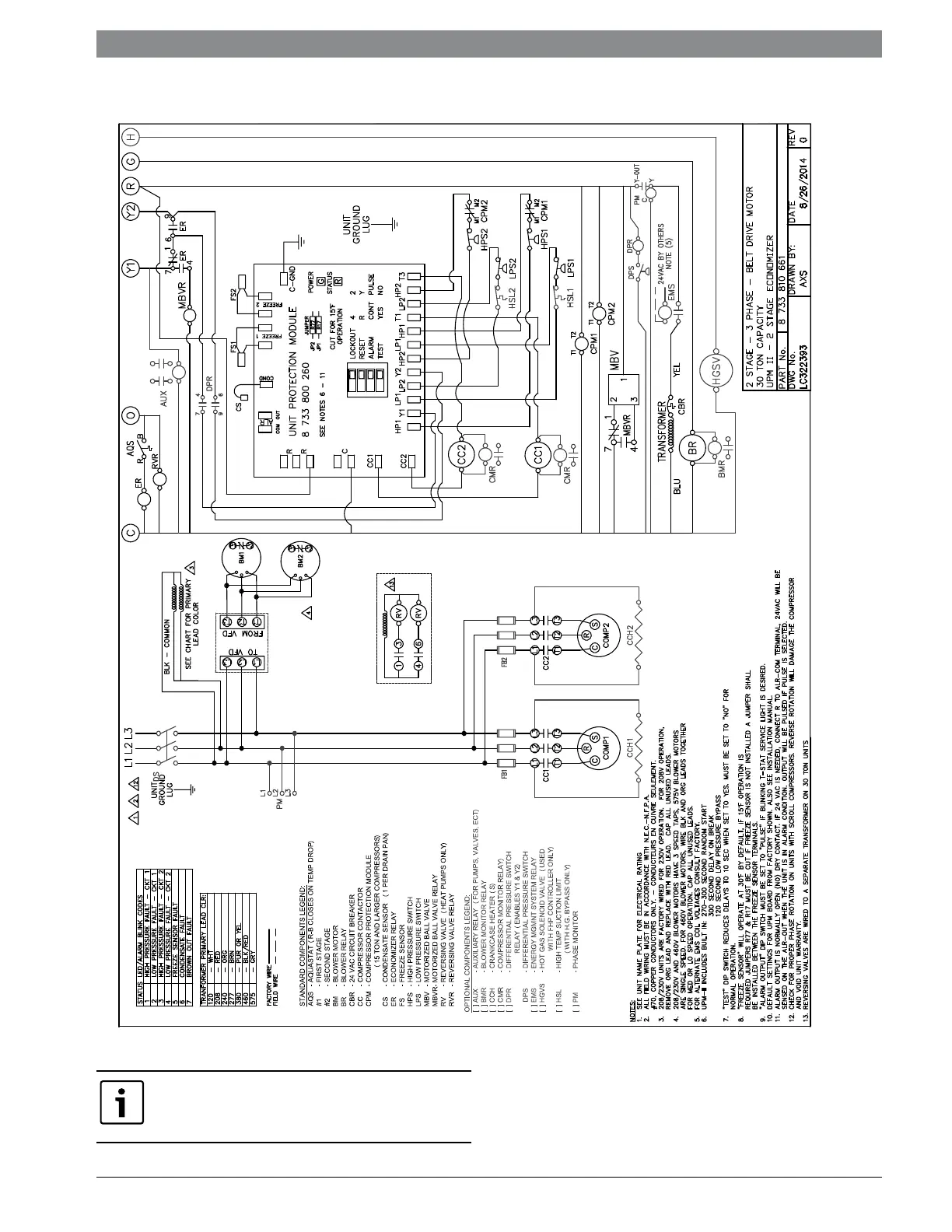

Figure # 30
FOR REFERENCE ONLY Actual unit wiring
may vary from this example. Always refer to the
wiring diagram attached to the unit.
