Minimum distance between sensor and fascia
The minimum distance between the sensor radome and the fascia or any other part of the
vehicle may not be smaller than 5 mm.
This is valid for fascia parts fulfilling the following requirements.

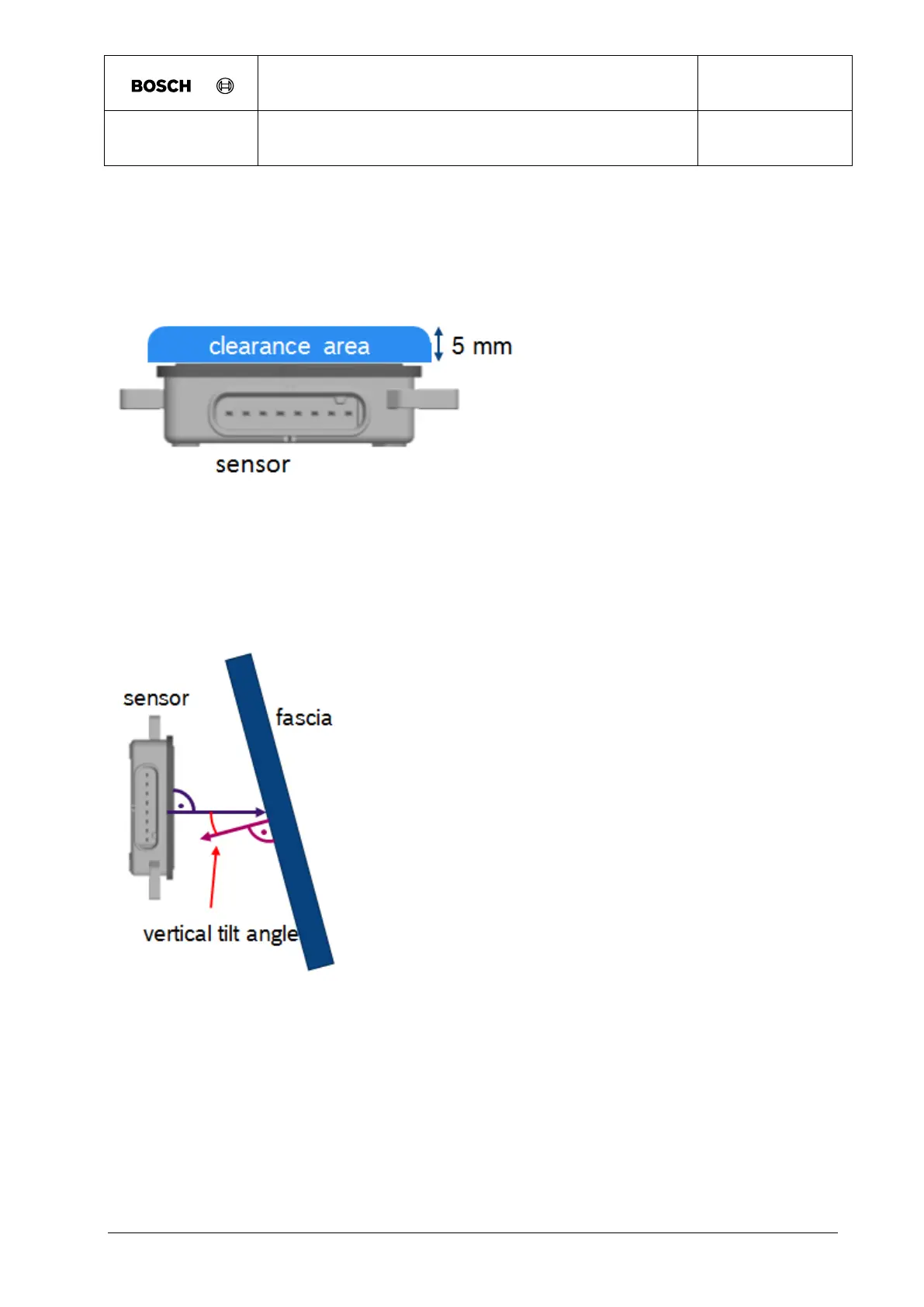

Figure: Minimum distance above sensor radome
Vertical tilt of fascia (FR5CP)
The vertical tilt angle between the sensor normal and the surface normal of the fascia shall be in
the range according to the following table.
Figure: vertical tilt angle of fascia to sensor normal
