2.1.1.3. Installation Hints
To enable the full performance of the radar sensor, it is recommended to use the following
installation hints and guidelines for the RF integration of the sensor.
Sensor rotation around radome normal (FR5CP)
The sensor shall not be rotated more than 1.5° around the normal of the radome surface.
Maximum angle between radar cone and fascia
The angle α between the radar beam inside the radar cone and the fascia may not be larger
than 70° anywhere inside the radar cone.

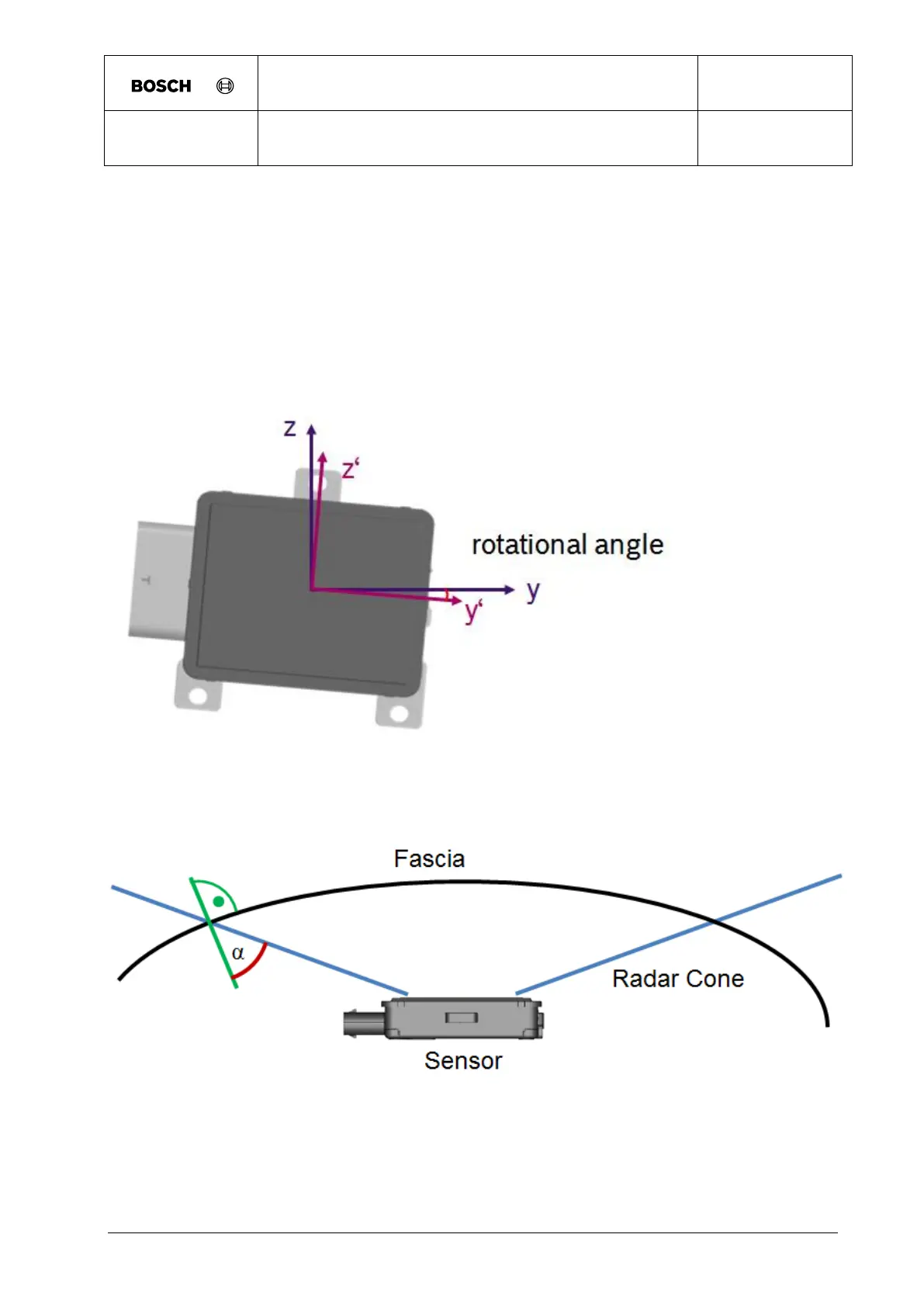

Figure: Maximum angle between fascia and radar cone
