Bosch Greenstar Applications Manual
Bosch Thermotechnology Corp.Data subject to change
Bosch
State
Bases
No. .
Changed
Released
Created
TK
02/20/15
Baseboard
Expansion
Tank
Auto-Fill
Air
Eliminator
Isolation
valve
Back-flow
preventer
Relief valve &
pressure gauge
Condensate
drain
Outdoor
air sensor
Comfort
Room
Control
Purge
Drain
DISCLAIMER: Application drawings
in this manual are conceptual only
and do not purport to address all
design, installation, code, or safety
considerations. The diagrams in
this manual are for reference use by
code officials, designers and
licensed installers. It is expected
that installers have adequate
knowledge of national and local
codes, as well as accepted industry
practices, and are trained on
equipment, procedures, and
applications involved. Drawings are
not to scale. Refer to the boiler,
control and module installer
manuals for additional detailed
information.
Gas
Supply
PRV
Relief piping
Bosch
CRC100 or
CRC200
Bosch
Note:Greenstar Internal circulator
can support a single zone loop
not to exceed 4 gpm at 12 feet of
head. See pump curves in
manual for pump capacities at
alternate flow rates.

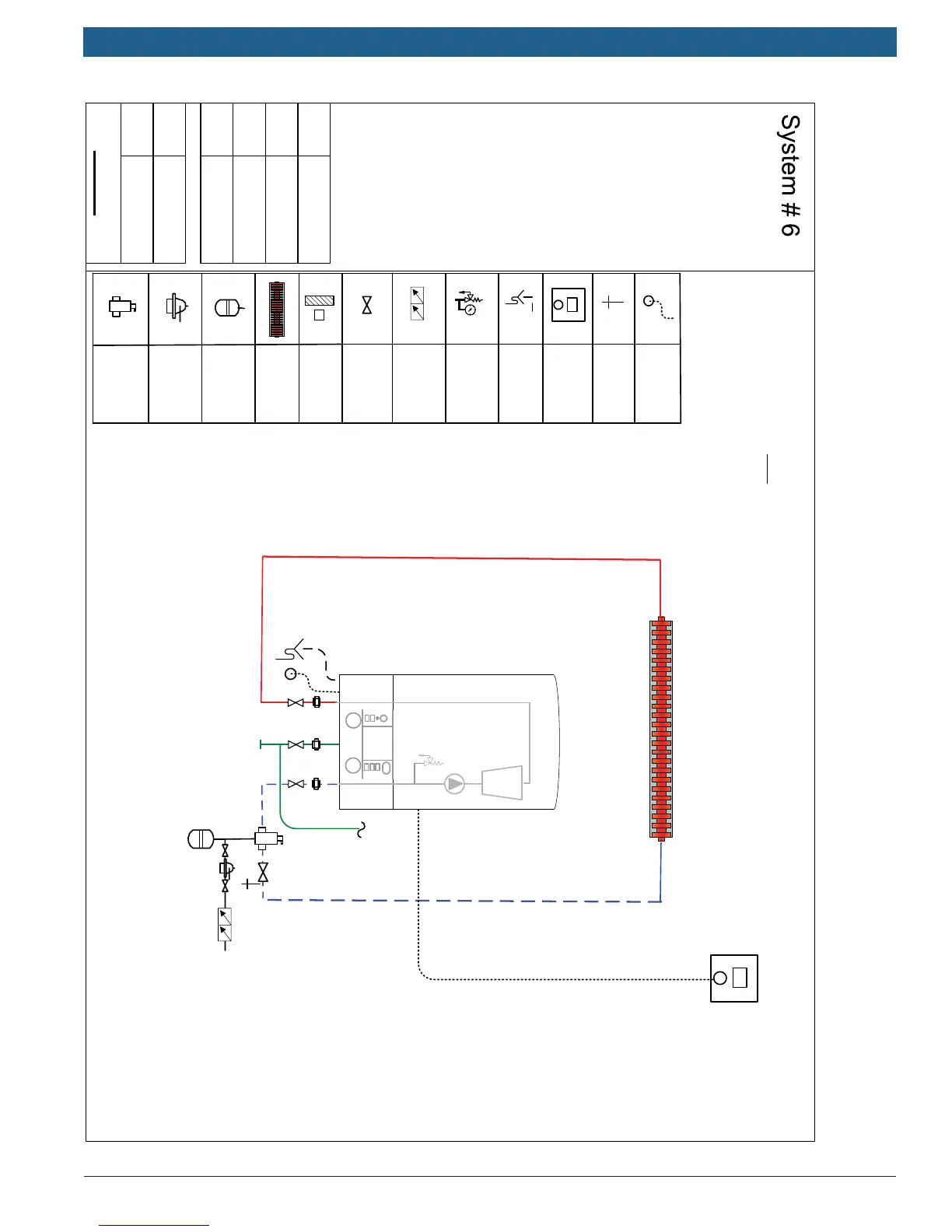

Single Zone
Heat only wall boiler
Baseboard
NSC Controls
To Next Page
