9000989331 Rev D English 13
7. Properly secure flexible conduit at knockout panel on
range and at supply side junction box. The wiring is
now complete.
Note: DO NOT connect electrical power to the range at this
time.
Complete the installation

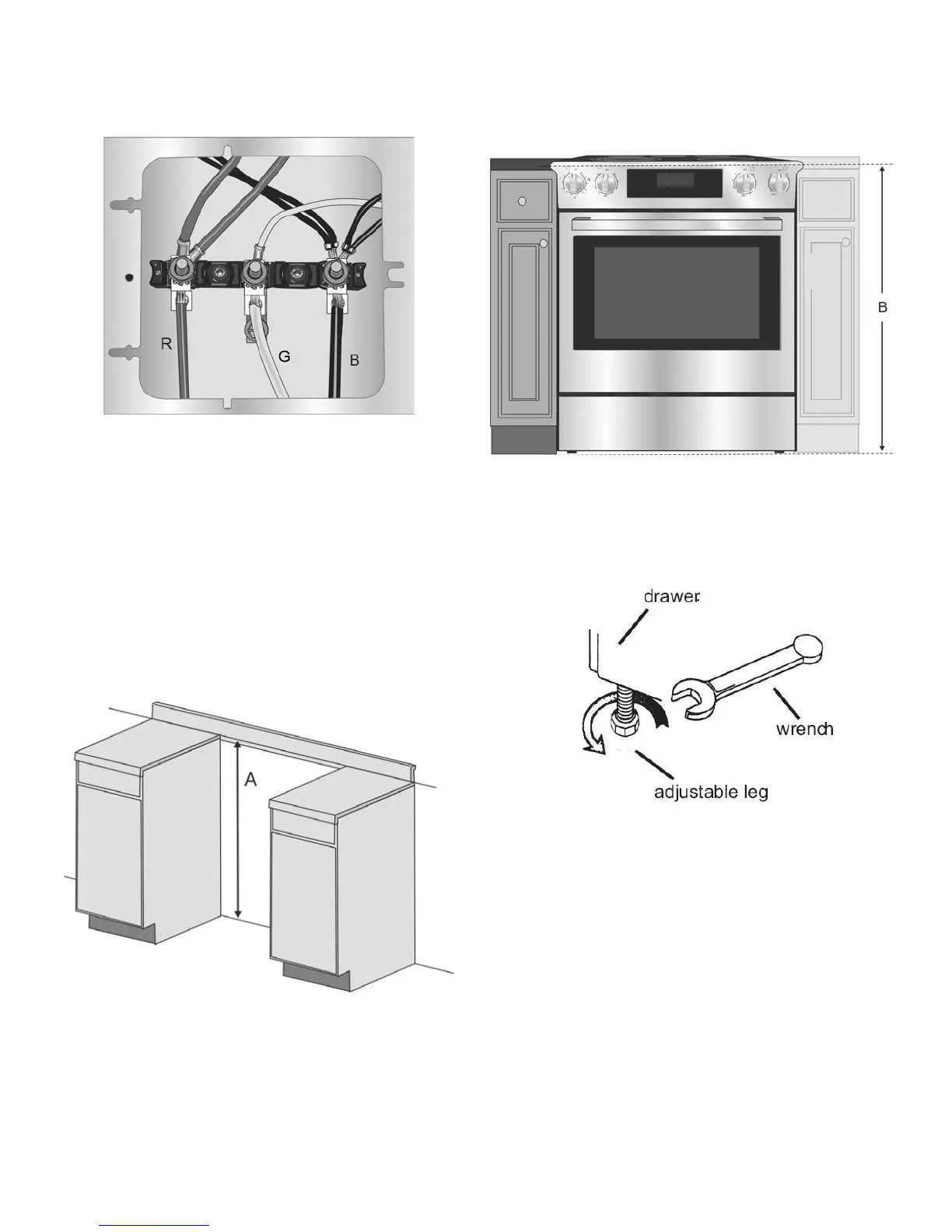

Adjust Leveling Legs
1. Make sure that the circuit breaker is off and then plug
range cord into the electrical outlet.
2. Line up range in front of opening.
3. Measure (A) back left corner of opening from floor to
the top of the countertop.
4. Measure the back left corner of the range to the bottom
of cooktop (B). Adjust leveling legsuntil this height is
the same as the corner dimension.
5. Repeat in the back right corner.
6. Use a 1¼ “ wrench to adjust front leveling legs so that
the height from the bottom of the cooktop to the floor
matches the height of the corresponding countertop
surface.
