Accessories for your appliance
Pedestal
The dryer can be mounted on a special pedestal for
easier loading and unloading.
Pedestal item number: WMZ20500
Stacking kits
The dryer can be stacked on a Bosch washer of the
same dimensions to save space.
Stacking kit without a shelf: WTZ20410
Stacking kit with a shelf: WTZ11400
Drying rack
A drying rack placed inside the dryer for drying wool
items, shoes, etc. is available.
Drying rack item number: WMZ20600
Accessories can be purchased from customer service or
your local dealer.
~ Customer service; Page 4

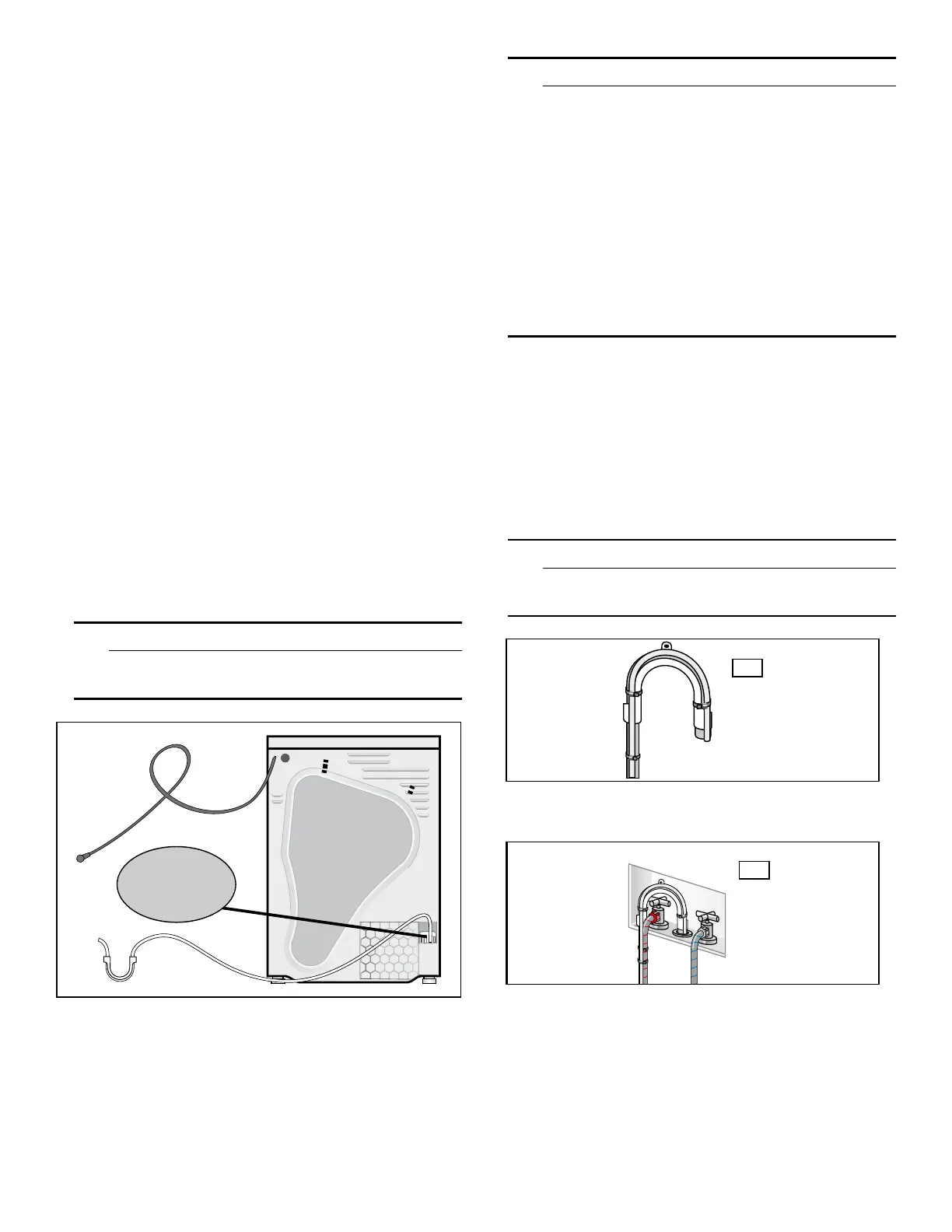

Installation - step by step
1.
Unpack the dryer.
2.
Remove all objects from the dryer drum.
3.
Check the dryer for visible damage.
4.
Position the dryer near the installation location.
5.
Disconnect the power cord and drain hose from their
clips on the back of the dryer.
9 CAUTION
Do not disconnect the drain hose from the sump/
pump connection at the bottom of the dryer.
NOTICE: Do not reuse an old or different drain hose.
Only use the drain hose included with the dryer.
6.
Connect the outlet end of the drain hose to a
standpipe or other drain inlet. Examples are shown
below.
9 CAUTION
APPLIANCE DAMAGE COULD OCCUR IF DRAIN
WATER FLOWS BACK INTO THE APPLIANCE
In all drain conditions, scenarios, or connections
you must ensure:
▯ The drain water from the hose is free flowing and
not obstructed allowing adequate water flow.
▯ Drain opening is not sealed in any way and
ventilated enough not to cause a back siphon.
▯ The end of the drain hose does not protrude into
the pumped out or standing water.
▯ Be sure to follow all local codes and regulations
in draining the condensate water to a suitable
drain.
Examples of connections:
▯ Plumbing box or Standpipe connection:
For most plumbing box installations (with adjacent
washer) the plastic elbow supplied with the dryer will
not be used and must be removed from the dryer
drain hose.
1.
Fasten the dryer drain hose to the washer drain/elbow
as shown in picture “A”. Secure with plastic ties
supplied.
9 CAUTION
Do not over tighten plastic ties pinching or
causing a restriction in the drain hose.
2.
Place drain hose assembly into standpipe as shown in
picture “B”.
(QVXUHWKHGUDLQKRVH
UHPDLQVFRQQHFWHG
WRVXPSSXPSRXWOHW
$
%
To Next Page
