Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
NOTE: For tool specifications refer to the nameplate on your tool.

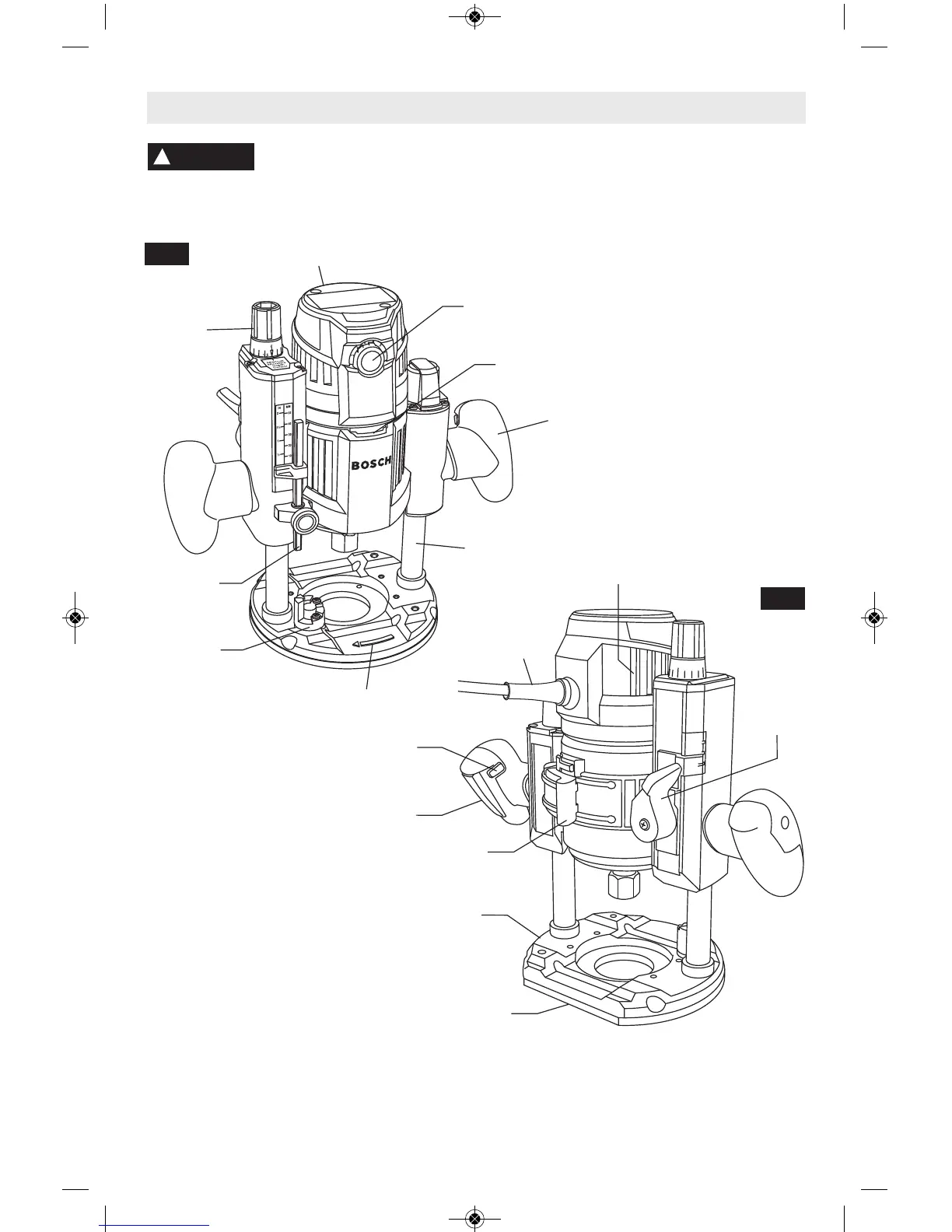

MRP23EVS Plunge Router
Bit Rotation Arrow
Trigger Switch
Base Clamp Lever
Sub-Base
MRP01
Plunge Base
Depth Stop
Turret
Depth Rod
Plunge
Posts
Plunge
Lock
Lever
Trigger Switch
"Lock-On" Button
Afterlock
Microfine
Depth
Adjustment
Control
Handles
Motor-to-Base 5v Control
Connection Track
Speed Control Dial
Cord
Swivel
MR23EVS Motor
Air Vents
