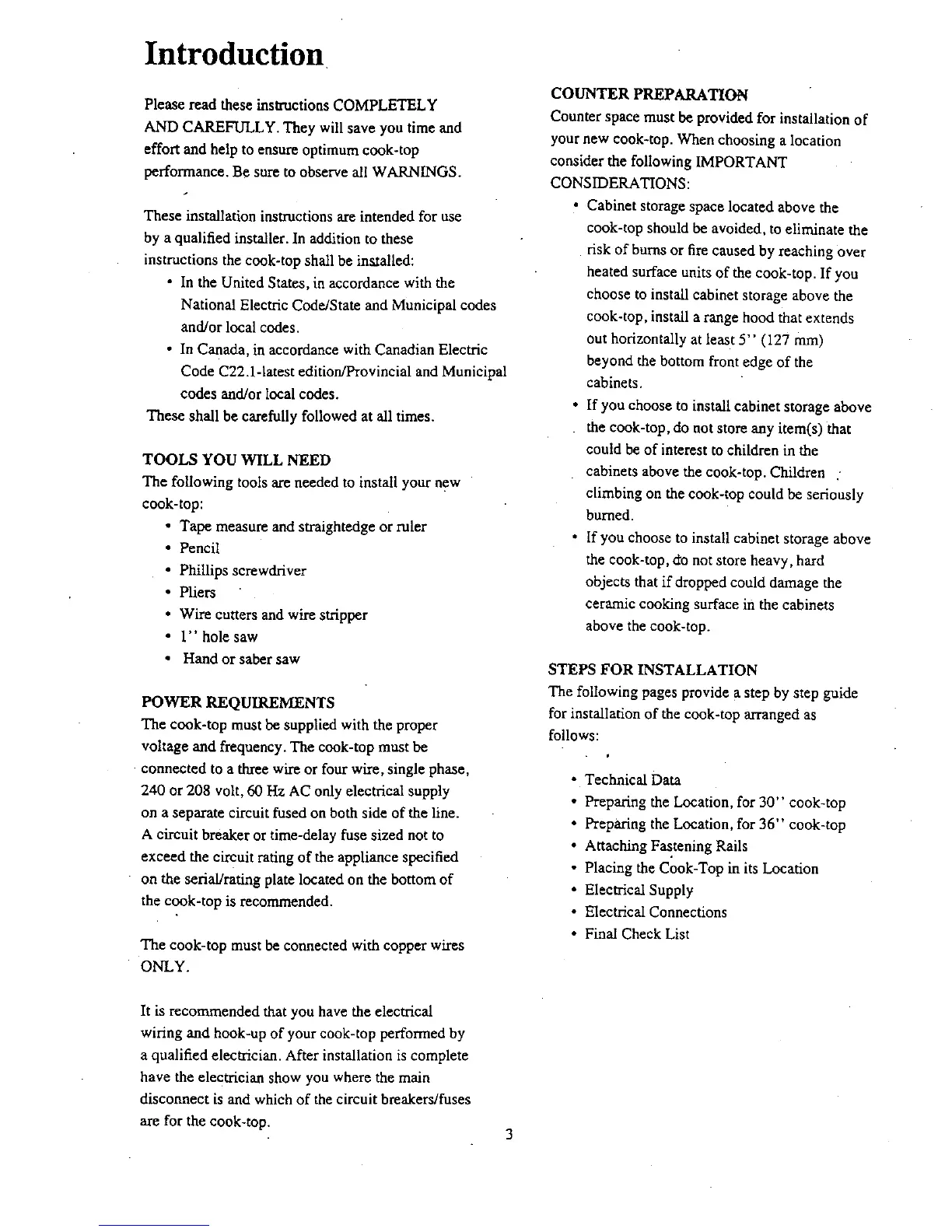

Introduction
Please read these instructions COMPLETELY
AND CAREFULLY. They will save you time and
effort and help to ensure optimum cook-top
performance. Be sure to observe all WARNINGS.
These installation instructions are intended for use
by a qualified installer. In addition to these
instructions the cook-top shall be incralled:
• In the United States, in accordance with the
National Electric Code/State and Municipal codes
and/or local codes.
• In Canada, in accordance with Canadian Electric
Code C22.1-1atest edition/Provincial and Municipal
codes and/or local codes.
These shall be carefully followed at all times.
TOOLS YOU WILL NEED
The following tools are needed to install your new
cook-top:
Tape measure and straightedge or ruler
Pencil
Phillips screwdriver
Pliers
Wire cutters and wire stripper
1" hole saw
Hand or saber saw
POWER REQUIREMENTS
The cook-top must be supplied with the proper
voltage and frequency. The cook-top must be
connected to a three wire or four wire, single phase,
240 or 208 volt, 60 Hz AC only electrical supply
on a separate circuit fused on both side of the line.
A circuit breaker or time-delay fuse sized not to
exceed the circuit rating of the appliance specified
• on the serial/rating plate located on the bottom of
the cook-top is recommended.
The cook-top must be connected with copper wires
ONLY.
COUNTER PREPARATION
Counter space must be provided for installation of
your new cook-top. When choosing a location
consider the following IMPORTANT
CONSIDERATIONS:
• Cabinet storage space located above the
cook-top should be avoided, to eliminate the
risk of burns or fire caused by reaching over
heated surface units of the cook-top. If you
choose to install cabinet storage above the
cook-top, install a range hood that extends
out horizontally at least 5" (127 mm)
beyond the bottom front edge of the
cabinets.
• If you choose to install cabinet storage above
• the cook-top, do not store any item(s) that
could be of interest to children in the
• cabinets above the cook-top. Children •
climbing on the cook-top could be seriously
burned.
• If you choose to install cabinet storage above
the cook-top, cto not store heavy, hard
objects that if dropped could damage the
ceramic cooking surface in the cabinets
above the cook-top.
STEPS FOR INSTALLATION
The following pages provide a step by step guide
for installation of the cook-top arranged as
follows:
Technical Data
Preparing the Location, for 30" cook-top
Preparing the Location, for 36" cook-top
Attaching F_tening Rails
Placing the Cook-Top in its Location
Electrical Supply
Electrical Connections
Final Check List
It is recommended that you have the electrical
wiring and hook-up of your cook-top performed by
a qualified electrician. After installation is complete
have the electrician show you where the main
disconnect is and which of the circuit breakers/fuses
are for the cook-top.
