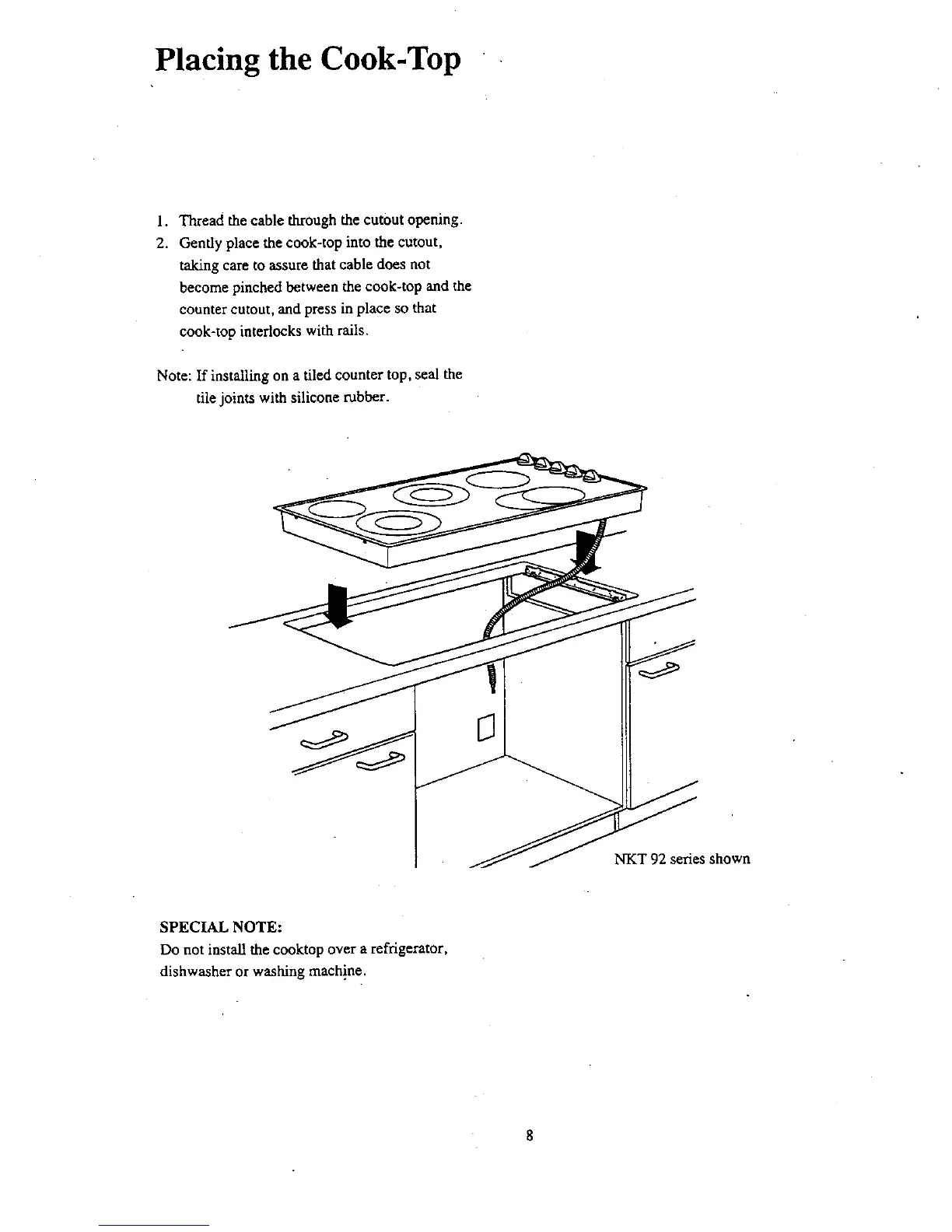

Placing the Cook-Top
1. Thread the cable through the cutout opening.
2. Gently place the cook-top into the cutout,
taking care to assure that cable does not
become pinched between the cook-top and the
counter cutout, and press in place so that
cook-top interlocks with rails.
Note: If installing on a tiled counter top, seal the
tile joints with silicone rubber.
NKT 92 series shown
SPECIAL NOTE:
Do not install the cooktop over a refrigerator,
dishwasher or washing roac!!he.
