3 Installation
3.1 Unpack unit
1 Remove the unit from the box, and discard the
packaging material according to local regulations.
2 Use your fingernails to carefully peel off the
protective plastic film. Do not use sharp or pointed
objects.
3.2 Connect unit to PLE-series
two-zone mixer (amplifier)
1 Connect the Plena Two-zone Call Station to the
PLE-series two-zone mixer or mixer amplifier using
a Cat-5 Ethernet cable (see figure 3.1). Either one of
the RJ-45 sockets can be used.
3.3 Make configuration settings
1 Make the configuration settings (see section 4.2).

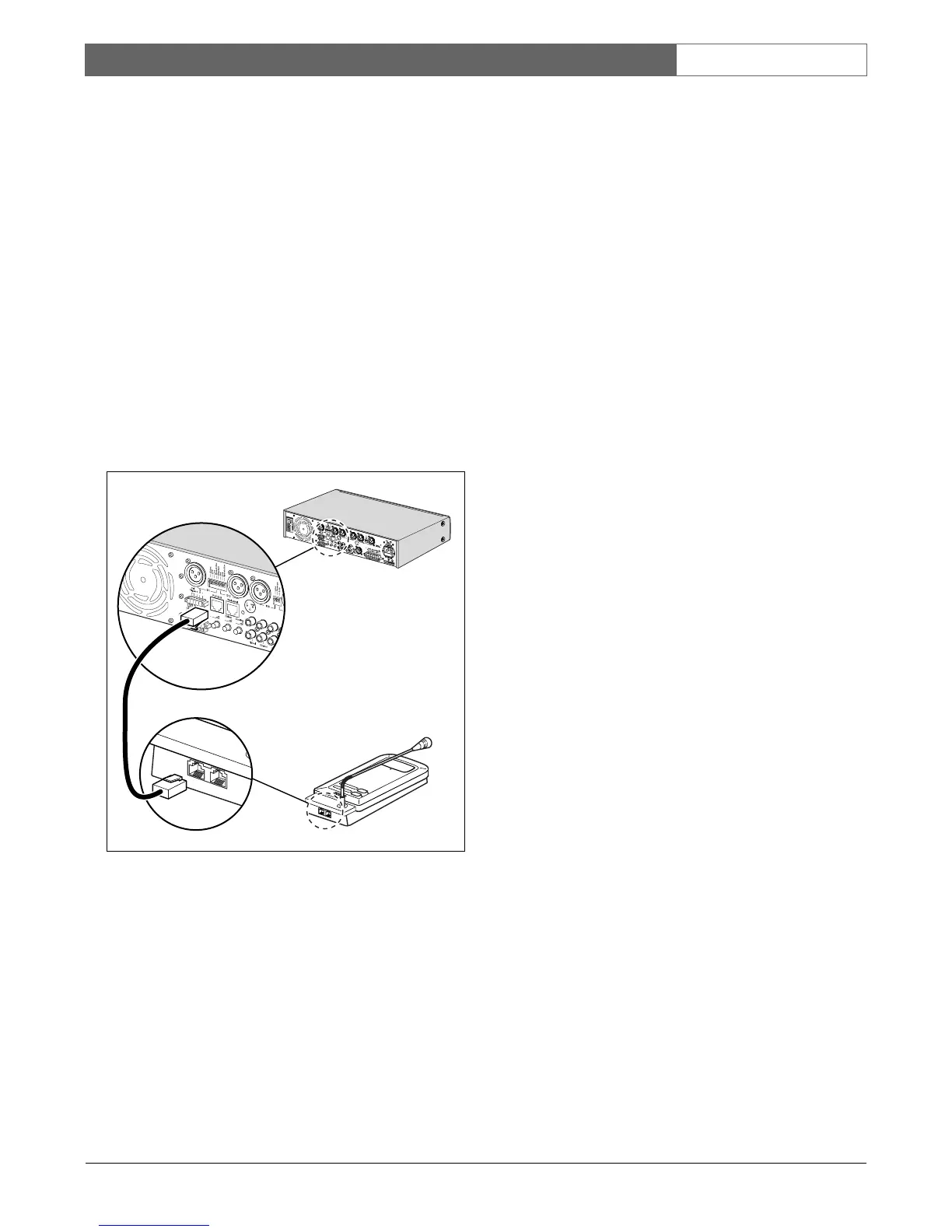

figure 3.1: Connecting the call station to the mixer or
the mixer amplifier
