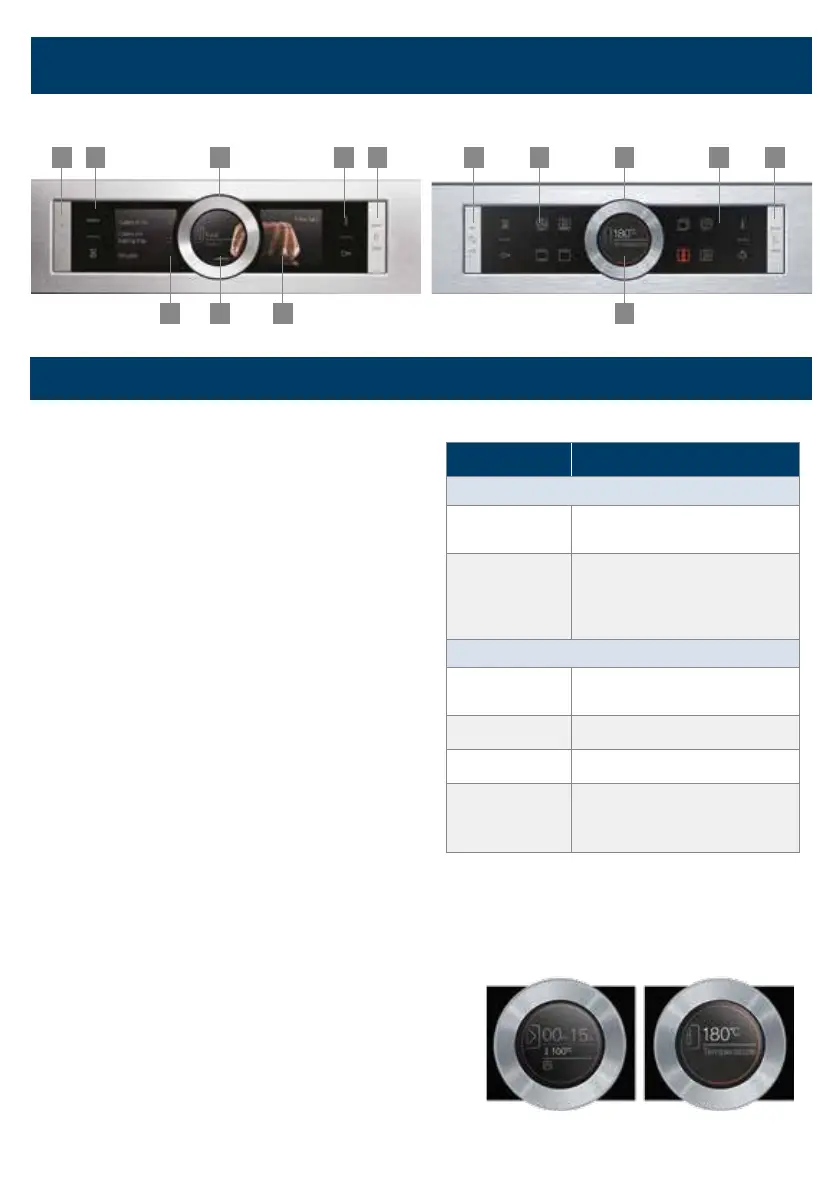

The Serie 8 control panel
Symbol Meaning
Buttons
On/Off Switching the appliance on
and off
Start/Stop
Starting, pausing or
cancelling an operation
then hold down for approx
3 secs.
Touch fields
Menu Opens the ‘Operating
modes’ menu
Timer Selects the timer
Information Displays information
Childproof
lock
Activating and deactivating
(hold down for approx. 4
secs) the childproof lock
1. Buttons
Pressure points on the buttons to the left and
right-hand side of the control panel activate
them. For glass fronted appliances, these two
button touch fields do not have a pressure point.
2.Touch fields
There are sensors under the touch fields.
Simply touch the respective symbol to select
the function.
3. Control wheel
The iconic control wheel is fitted so that you can
turn it indefinitely to the left or right. Press it
lightly and move it in the direction required using
your finger.
4. Display
You can see the current adjustment values,
options or notes in the display.
5. Touch-screen displays
You can see the current options in the touch-
screen displays. You can select these directly by
touching the appropriate text field. The text fields
change depending on the menu.
1 2 3 2 1
4 55
TFT Touchdisplay with ClearText & TFT Display
1 12 23
4
Control wheel display.
If you change a value, the control wheel display shows you
the current selection or change. Depending on the area and
length of the selection list, the display may be continuous or
divided in half.
When on, the wheel display turns red at second-long
intervals. After every full-minute, the segments turn red
again from the beginning.
