Bosch Rexroth Marex SB - General; System Components Overview

1
General
Overview Wiring Operation Error Analysis
Appendix
Adjustment
1 General
1.1 System components

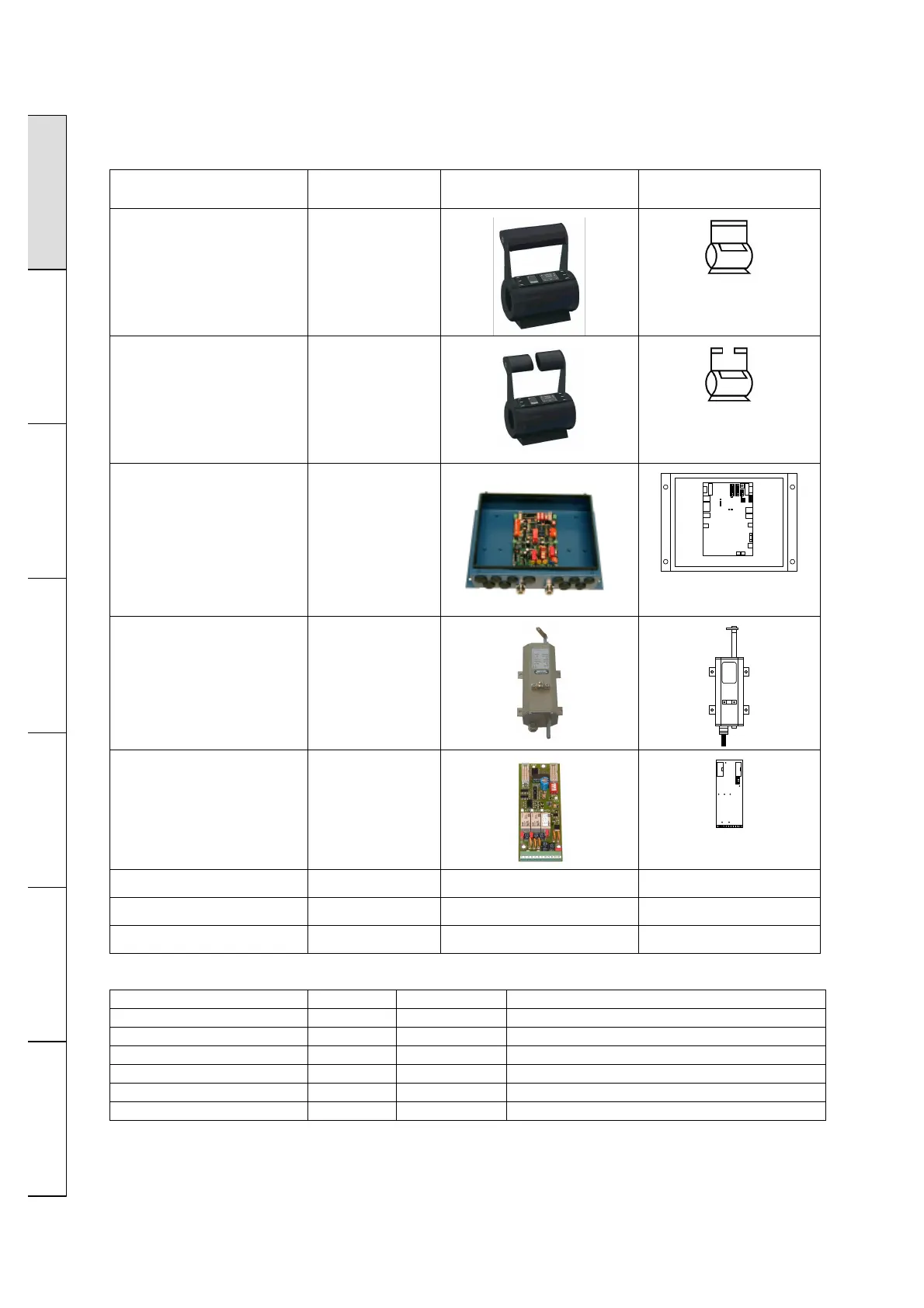

Designation Code No. Photo
Symbol
Control head
(single engine)
362 241 100 0
Control head
(twin engine)
362 241 000 0
Control unit 346 068 000 0
DC actuator 323 698 020 0
I/O-extension board 346 068 721 2
1
2
3
4
Synchro-board 346 068 730 2
Push-/Pull-cable 2m 323 699 415 2
Mounting kit 323 699 006 2
Additionally required:
Data cable LIYCY 4 x 1mm²
Supply cable Ölflex 100 2 x 2,5mm²
Throttle cable LIYCY 2 x 0,75mm² for electrical throttle control only
Gearing cable LIYCY 7 x 1mm² for electrical gear shifting only
Cable alarm LIYCY 2 x 0,75mm² if alarm system is connected
Cable start interlock LIYCY 2 x 0,75mm² if engine start interlock is connected
Cable idle gas LIYCY 2 x 0,75mm² if idle gas is connected
