6
General
OverviewWiringAdjustmentOperationError AnalysisAppendix

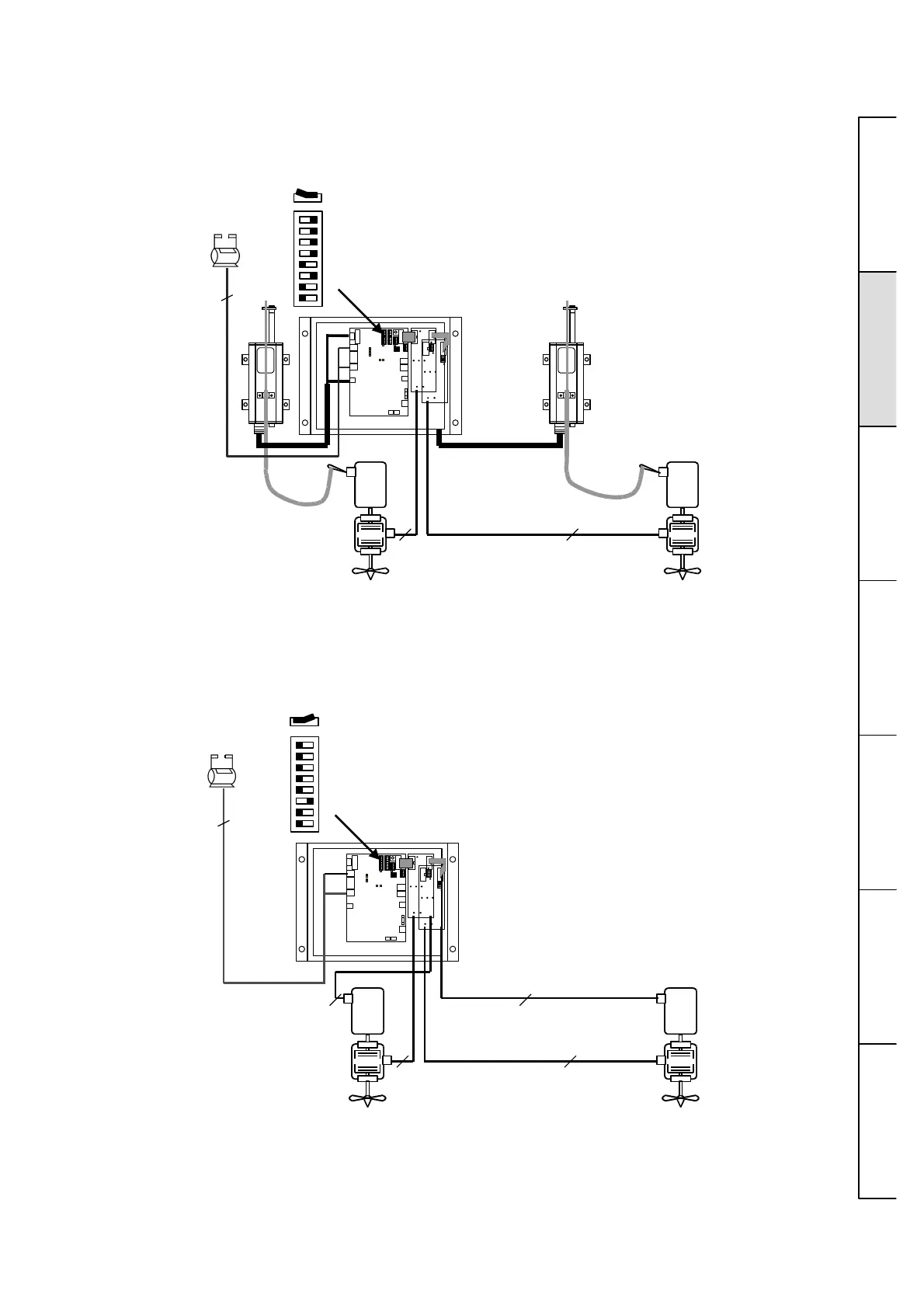

Twin engine – mechanical throttle control, electrical gear shifting
Throttle is adjusted by means of mechanical rods, gear shifting is controlled by 24 V-signals.
1
2
3
4
5
6
7
8
1
A1 A2
1
2
port starboard
70 mm
100 N
70 mm
100 N
24 V 24 V
I/O-extension board 1:
actuation gearing port
I/O-extension board 2:
actuation gearing starboard
shielded
cable
type LIYCY
4 x 1 mm
2
shielded cable
type LIYCY
7 x 1 mm
2
shielded cable
type LIYCY
7 x 1 mm
2
SYSCON
Twin engine – electrical throttle control, gear shifting electrical
Throttle is adjusted electrically (4 ... 20 mA), gear shifting is operated by 24V-signals.
1
2
3
4
5
6
7
8
1
1
2
port starboard
24 V 24 V
4...20 mA 4...20 mA
I/O-extension board 1:
actuation gearing port
actuation rpm port
I/O-extension board 2:
actuation gearing starboard
actuation rpm starboard
shielded
cable
type LIYCY
4 x 1 mm
2
shielded cable
type LIYCY
7 x 1 mm
2
shielded cable
type LIYCY
7 x 1 mm
2
shielded cable
type LIYCY
2 x 0,75 mm
2
shielded cable
type LIYCY
2 x 0,75 mm
2
SYSCON
