V. Theory of Operation
V. Theory of Operation
Top Rack Only
Top Rack Only

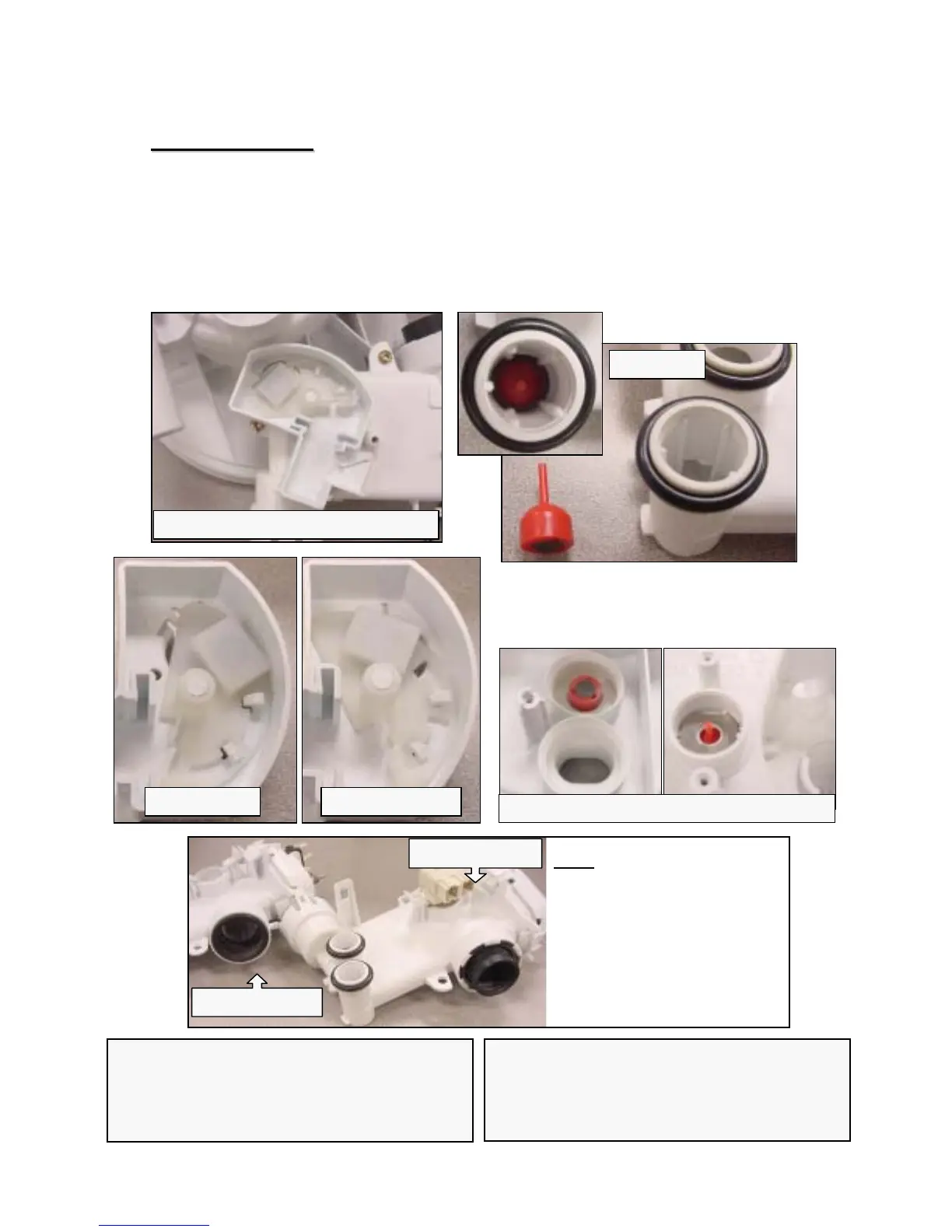

Models with the Top Rack Only feature have separate
actuators mounted underneath heater assemblies. The
actuator moves a magnetic plunger in the lower rack
heater port, diverting water to the top rack.
Heater with top rack actuator
Plunger
Where plunger engages sump
Both racks Top rack only
UC/06 heater
UC/11 heater
HINT: Do not use softer
bearing heater assemblies
(UC/11 & later) on older
UC/06 models since the
sump, circulation pump, base
and heater clamps/gaskets
have to be replaced as well
for the heaters to fit.
HINT: Models with water switches and
Top Rack Only have the Top Rack Only
parts integrated with the water switches.
No separate actuators are needed.
HINT: Models with water switches and
Top Rack Only have the Top Rack Only
parts integrated with the water switches.
No separate actuators are needed.
