VIII.
VIII.
Troubleshooting
Troubleshooting
All Dishwashers
All Dishwashers
–
–

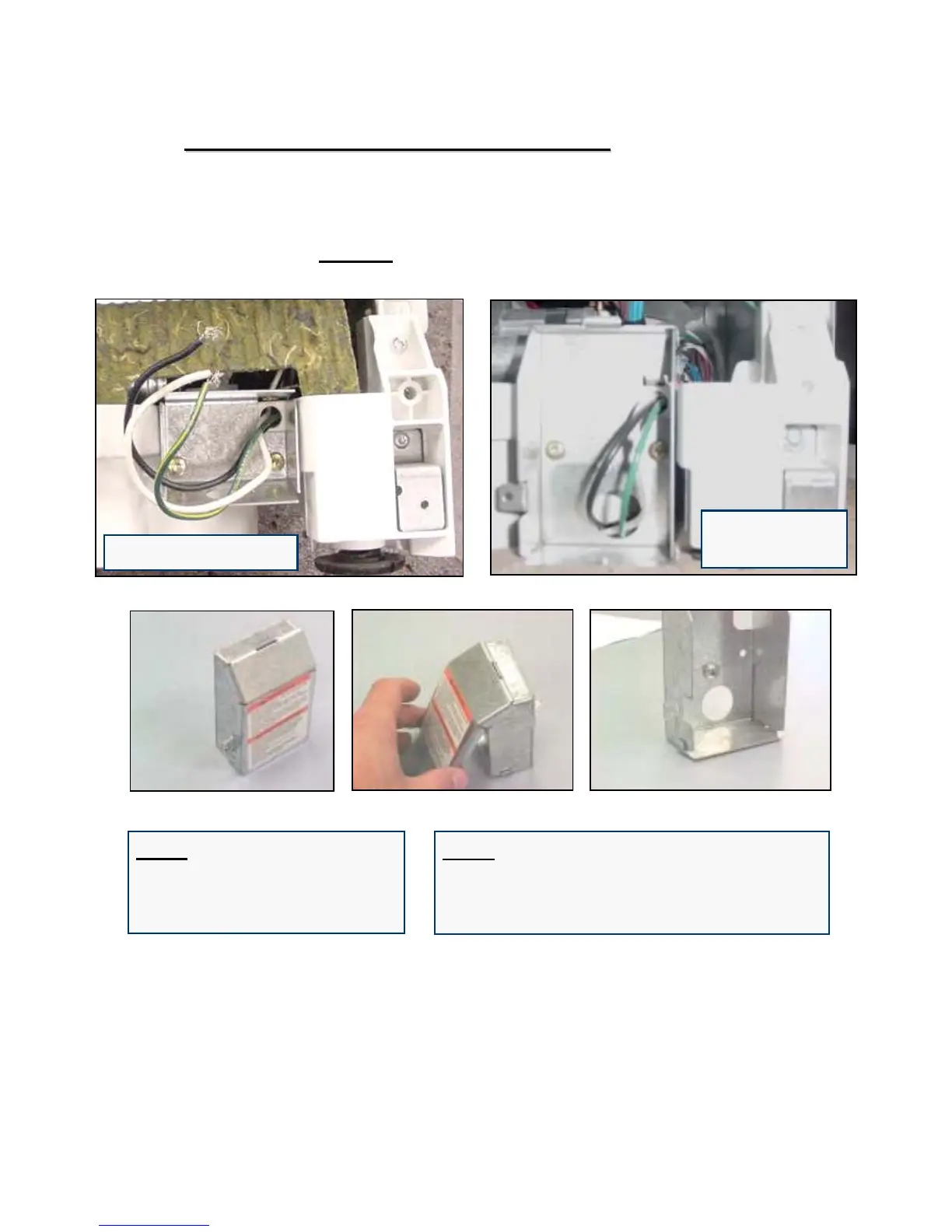

Terminal Box Covers
Terminal Box Covers
Since September, 2003, all dishwashers have
included larger terminal boxes (junction boxes/J-
boxes) with covers
.
Old terminal boxes
New terminal
boxes
New box with cover
Conduit exit shown
New box
with
cover
NOTE: Unlike old boxes
(where conduits exited bottom
of boxes), new terminal boxes
have rear conduit exits.
NOTE: Old terminal boxes met UL standards
– toe kicks were approved as terminal box
covers. There’s no need to change out old
terminal boxes.
