Bosch SHU4002 - To Remove & Install Door Latches for Integrated Models

56
VI.
VI.
Component Access/Replacement
Component Access/Replacement
Door Latches
Door Latches
–
–
Removal & Installation (2)
Removal & Installation (2)

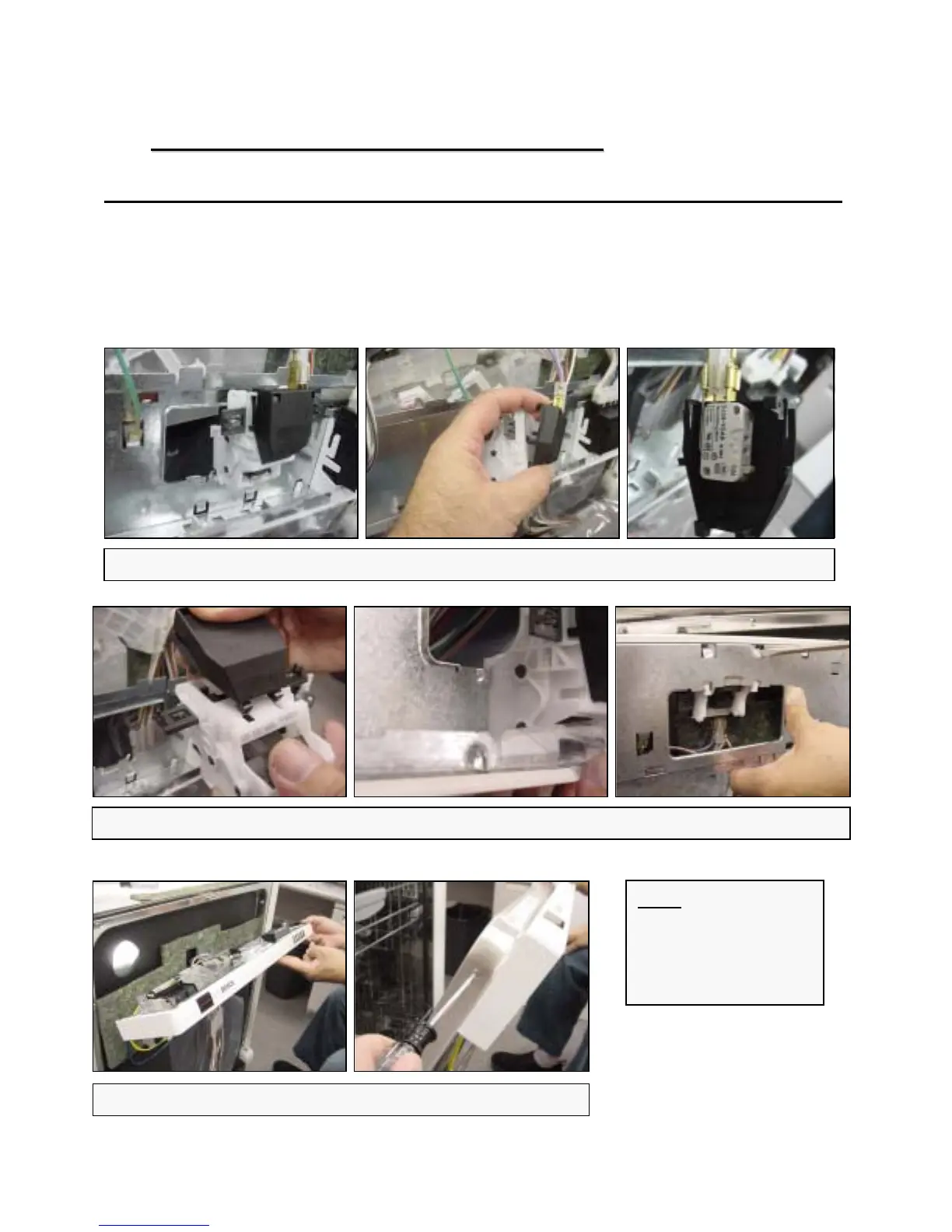

To remove & install door latches for integrated models (continued):
 Remove door latch from console.
 Disconnect wire harness, then remove microswitch & cover.
 Disconnect wires, then remove microswitch from cover.
 Replace microswitch, then reassemble.
Remove door latch Remove microswitch Microswitch
Replace cover (in slots) Insert latch into tabs Bend tabs back
HINT: Make sure
metal console tabs
are bent back
completely during
reassembly.
Replace fascia panel Replace screws
