Bosch SHX46A Repair Manual

4 COMPONENTS

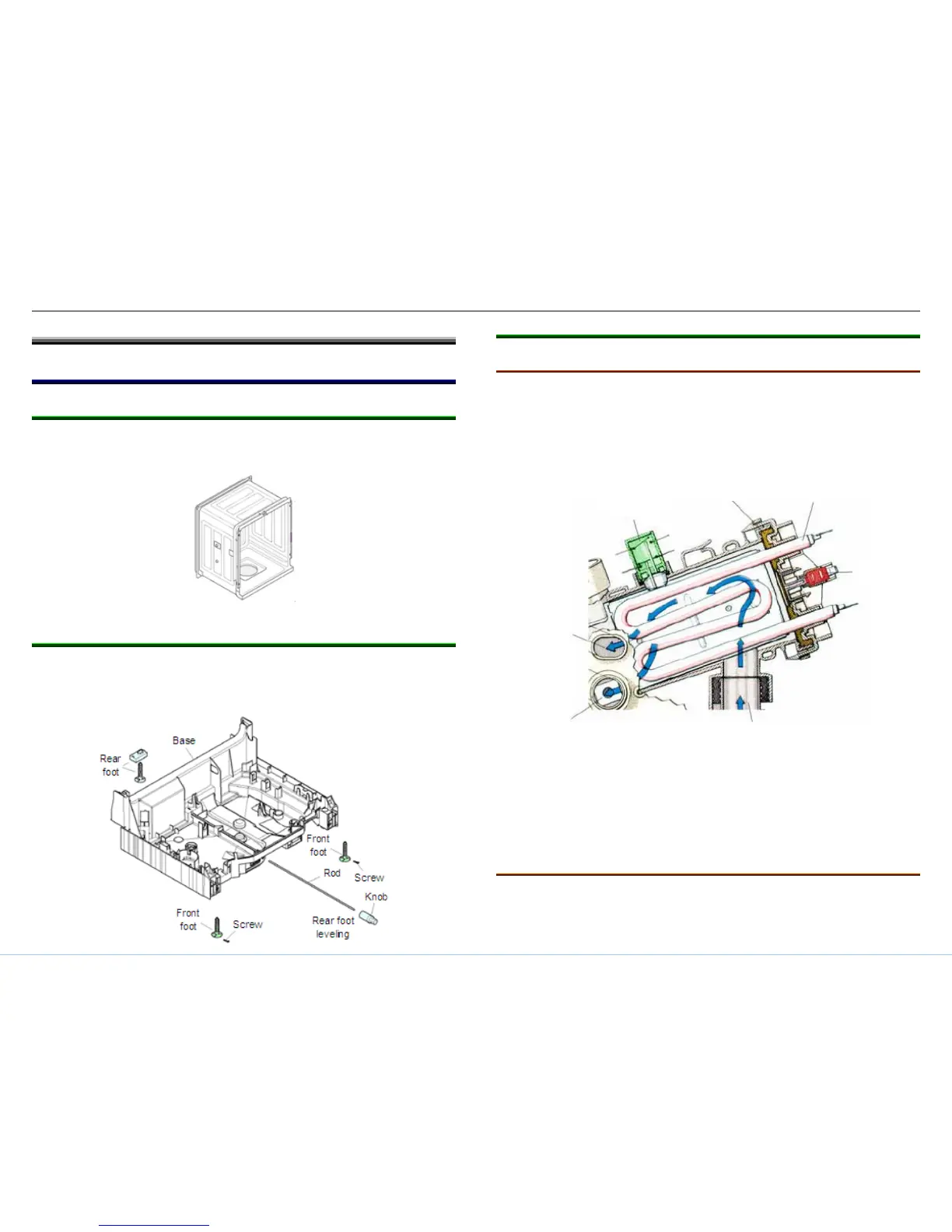

4.1 Dishwasher components
4.1.1 Tank
The tank, made of 304 stainless steel, isn’t available as a service
part.
4.1.2 Leveling feet (front and rear)
The base is supported by three leveling feet, two front and one
rear. The rear leveling foot is adjusted from the front. Front feet
have provisions for set screws (in installation parts bag).
4.1.3 Heater
4.1.3.1 Operation
Bosch dishwashers use flow-through heaters instead of exposed
elements, saving space and allowing taller tanks holding larger
dinner plates. Flow-through heaters prevent dishware damage
from exposed elements and allow water to be continuously
filtered and heated.
Heating element
Seal
NTC/Hi-limit
To upper
spray ar
m
To lower
spray arm
From circulation pump
Filtered water from the sump flows through the circulation pump
into the flow-through heater. All heaters are protected by a 185ºF
Hi-limit (high temperature cutout) and by a flow switch which
prevents heaters from operating when no water is flowing.
4.1.3.2 Heater ratings
 120 VAC, 60 Hz, 1200 W
 Heats water about 2ºF / minute
702_58300000148618_ara_en_a Page 10 of 42
Flow
switch
