5.3.3 Display modules
Some dishwashers have separate 3-digit display modules
mounted on the front of fascia panels.
Tools needed: T-20 Torx & flat blade screwdrivers.

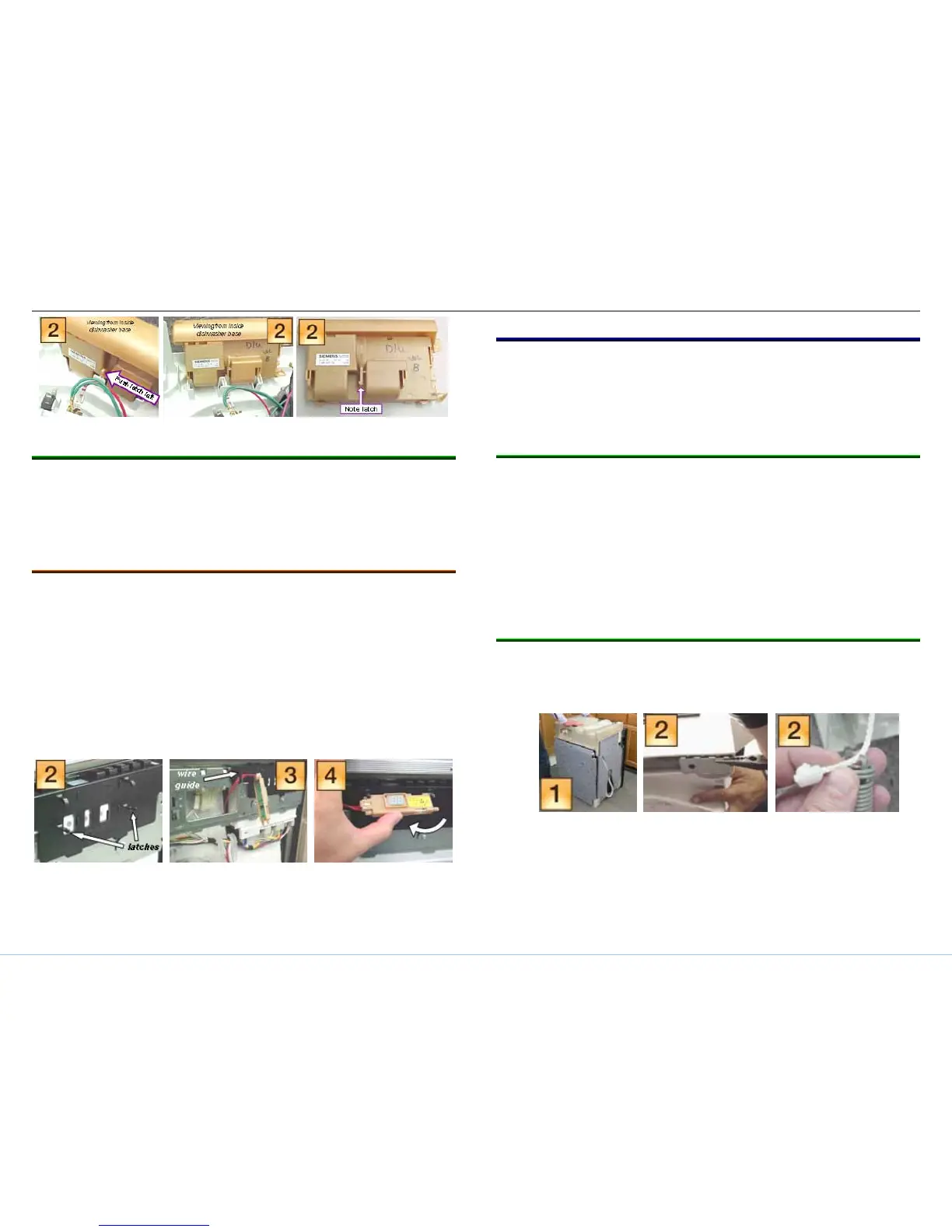

5.3.3.1 To remove / install display modules
1. Remove outer door & fascia panel – see section 5.3.1.
2. Disconnect wire harness and rotate display out from
display holder. Confirm latches are intact.
3. To install display, route display wire harness through
console opening, push harness onto pushbutton carrier
wire guide & connect terminal.
4. Insert display into top latches, then push bottom of display
up and rotate it into bottom latches.
5.4 Heaters
The heater & NTC can be accessed or measured from the right
side of the dishwasher, but can only be removed by dropping the
entire base (by flipping the dishwasher on its back) since they are
wedged underneath the tank.
5.4.1 For access to heaters & NTC’s
Tools needed: T-20 Torx screwdriver & pliers.
1. Remove outer door – see section 5.2.1
2. Remove toe kick – see section 5.2.2.
3. Remove right/left side panels – see section 5.2.3.
4. Raise right side of tank – see section 5.2.4.
5.4.2 To separate base from tank
1. Carefully lay dishwasher upside-down.
2. Carefully pull door springs out from base.
