4.1.17.1 Reed switch dispensers
The white plastic linkage opens the detergent dispenser door,
then cocks in place to dispense rinse-aid when the wax motor
operates again. After the 2nd operation, the linkage resets for
the next wash.
4.1.17.2 Optical dispensers
Optical dispensers are connected differently and can’t replace
reed switch dispensers.

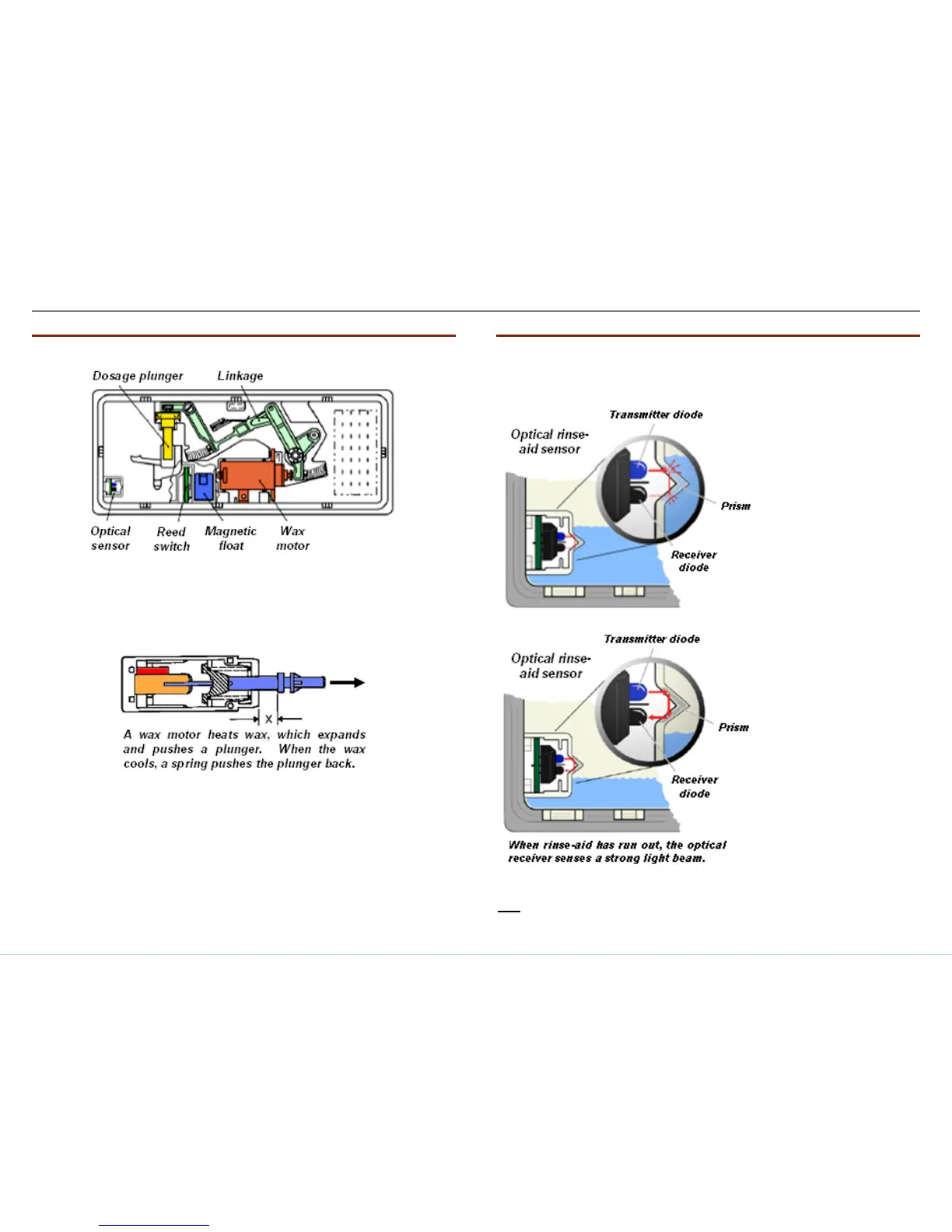

With rinse-aid
present, the optical
receiver senses a
diffused light beam.
When rinse-aid has
run out, the optical
receiver senses a
strong light beam.
TIP: It’s possible for some clear rinse-aid brands to not diffuse
light adequately to show rinse-aid isn’t needed.
