min 33” (84 cm)
max 43” (110 cm)
min 33” (84 cm)
max 43” (110 cm)

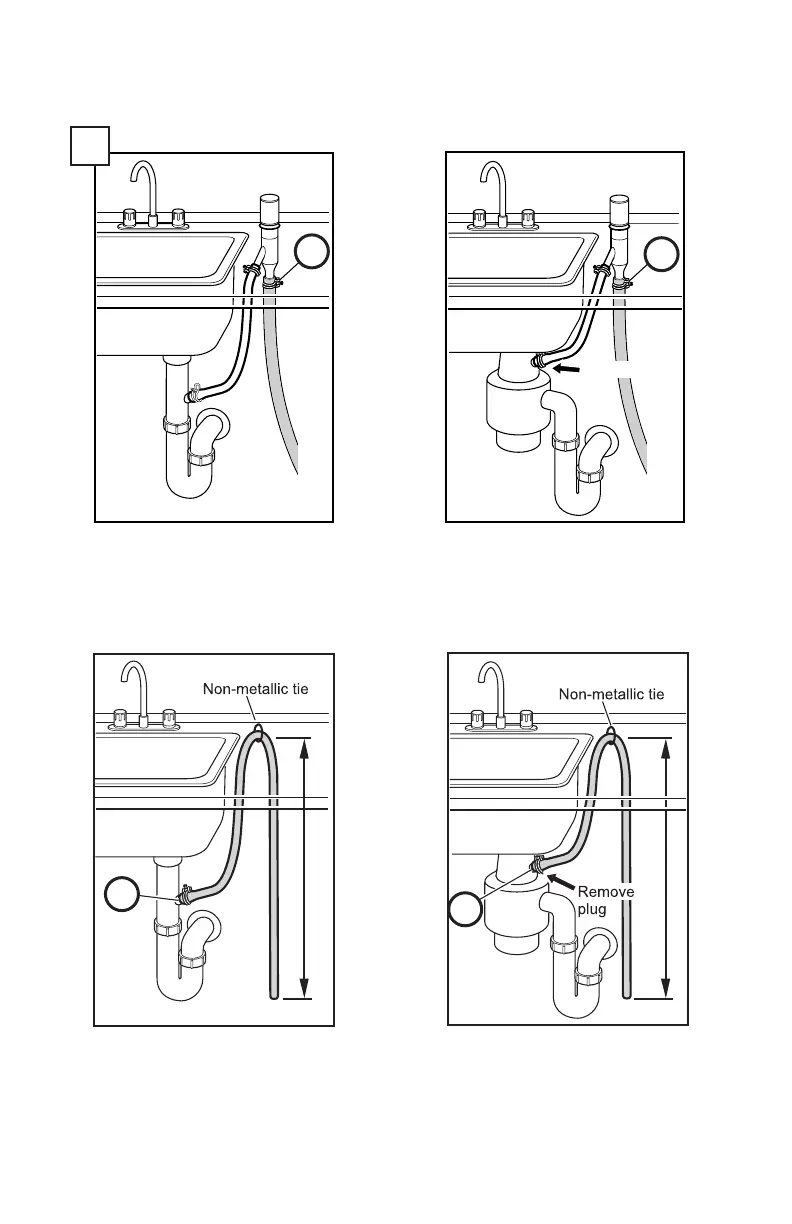

• The dishwasher drain hose may be connected to the drain plumbing
using an air gap in one of two ways:
- Connect to the under sink dishwasher drain connection (21a).
- Connect to a disposer dishwasher drain connection (21b).
NOTE: Place hose clamp (C) around end of drain hose BEFORE connecting
to the plumbing.
• The dishwasher drain hose may be connected to the drain plumbing
using a high loop in one of two ways:
- Connect to the under sink dishwasher drain connection (21c).
- Connect to a disposer dishwasher drain connection (21d).
21
a
c
b
d
C
C
C
C
