32
Custom Door Panel
Please see the included instructions and template for
installing a custom door panel.

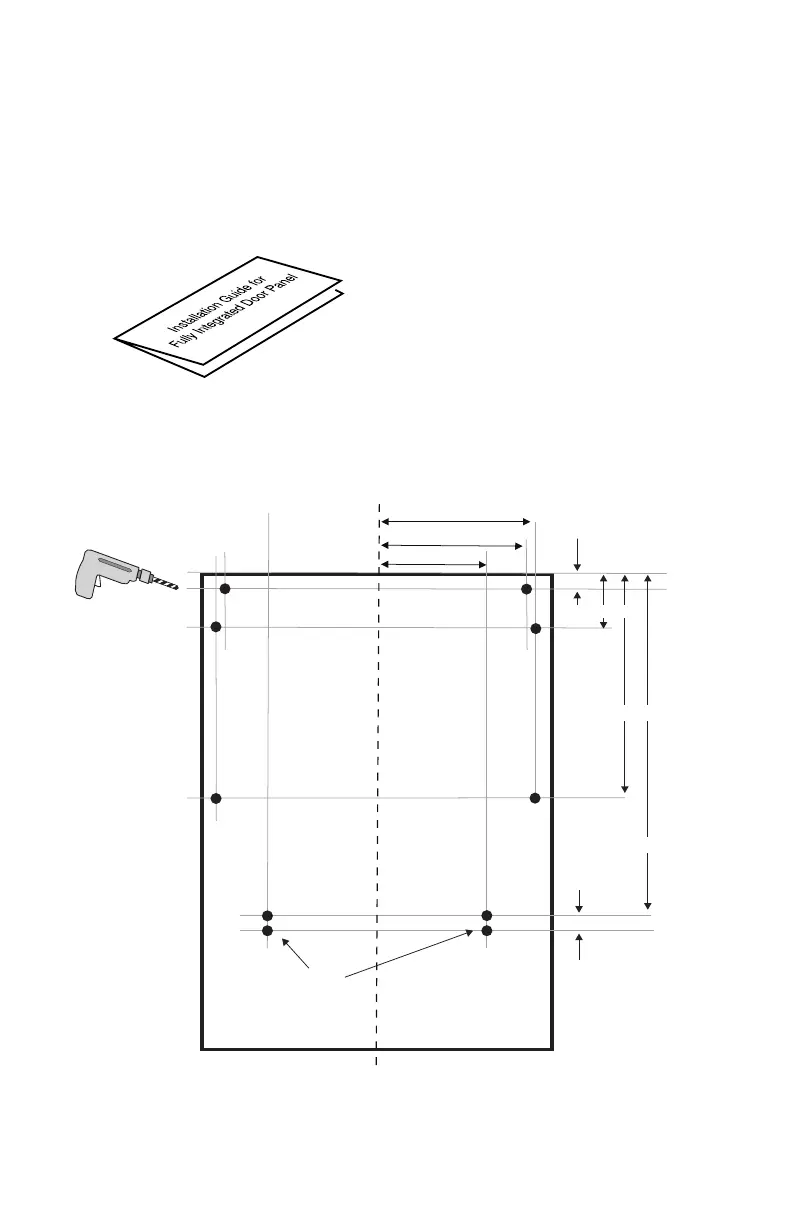

Below are the measurements for making a custom door panel
from the template. Measure the screw holes from the center line
and the top of the panel.
9 ⁷⁄8" - 251mm
10 ¼" - 261mm
11 ¹⁄8" - 283mm
³⁄8" - 9mm
3 ⁵⁄16" - 84mm
13" - 331mm
24 ¹⁄2" - 622.5mm
⁵⁄16" - 8.5mm
center line
holes for
T-bracket
screws
