1 695 105 790 2010-05-04| Robert Bosch GmbH
Use | TCE 4540 | 41 en

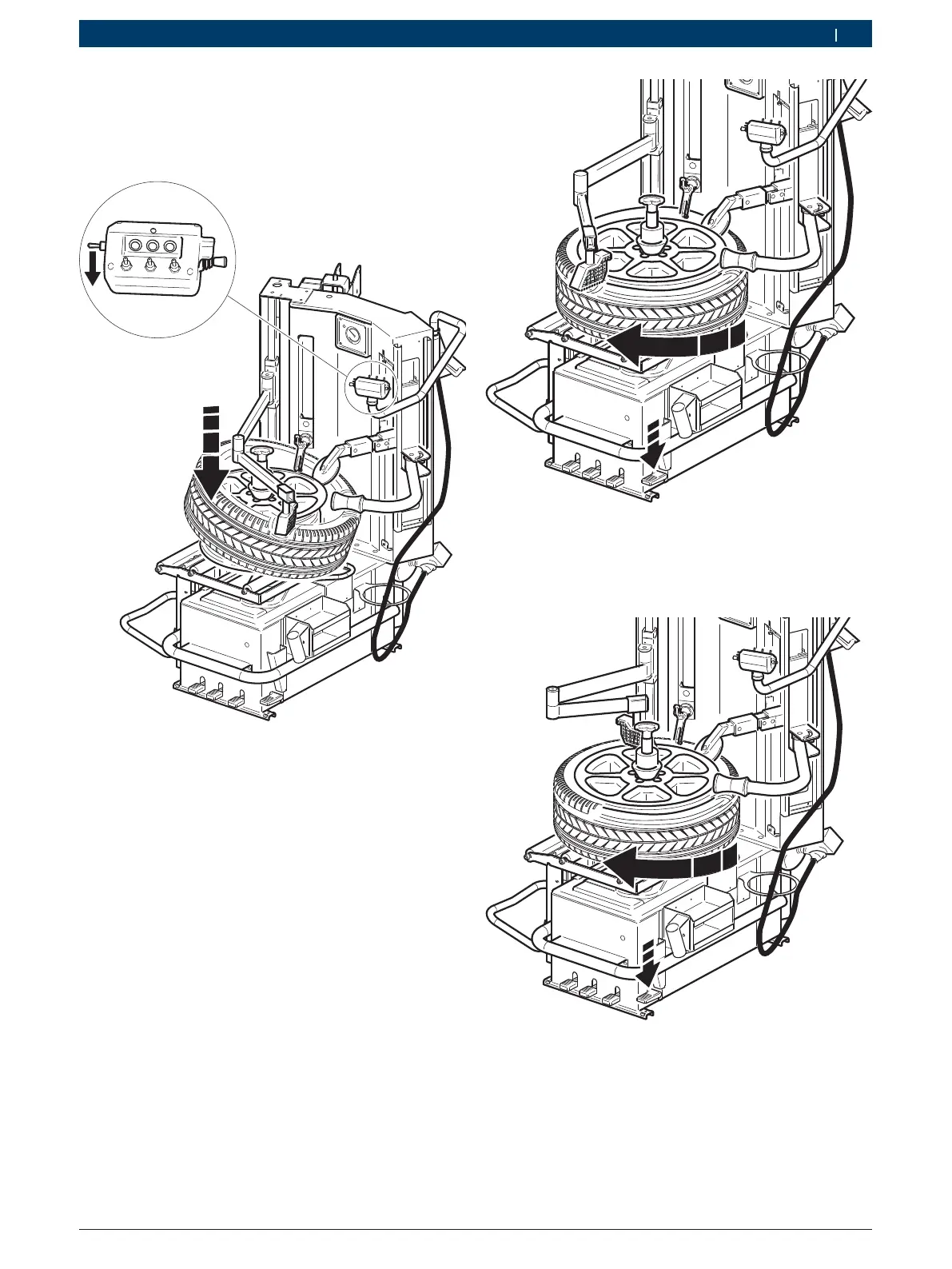

6. Place t
he bead pressing device on the tire and use
the side lever of the hydraulic control unit to move it
downwards placing it directly close to the adjustable
roller holding arm.
652061-21_Mi
i Be careful that the lower tire bead does not come
out (excessive pressure).
7. Lubricate the mounting tool and the adjacent part of
the bead with mounting paste.
8. Operate the locking flange pedal to rotate the tighte-
ning flange.
i During rotation, the pneumatic bead pressing device
pushes the tire bead inside the semi drop centre.
652061-22_Mi
i Mounting is complete when the bead pressing device
arrives close to the mounting tool thus releasing it
completely from the bead.
652061-23_Mi
Fig. 8: Bead fi tting concluded.
9. Move away from the tire or rotate them towards the
outside the pneumatic bead pressing device, the
lower and upper roller holding arm, the adjustable
roller holding arm and the mounting arm.
