1 695 105 790 2010-05-04| Robert Bosch GmbH
Technical data | TCE 4540 | 47 en
8. Technical data
8.1 TCE 4540
Function Specifications
Translation length of the tightening
flange in longitudinal direction
285 mm
Maximum noise level.
75 dB
Force of the hydraulic be-
ad breaking rollers
14000 N (1,4 t)
Hydraulic pressure 100 bar (10000 kPA)
Compressed air supply 8 – 12 bar
Power supply tension depending on the cho-
sen tension (see iden-
tification plate)
8.2 Dimensions and weights
Function Specifications
TCE 4540 (H x W x D) 1700 x 1880 x 1850 mm
Net weight
500 kg
Gross weight 542 kg
8.3 Reach
Function min / max
Tire width 3"– 22"
Maximum tire diameter
1250 mm
Rim diameter 10"– 30"
9. Glossary
Rim, structure and names
652001-26_Rf
1
1
3
4
3
2
D

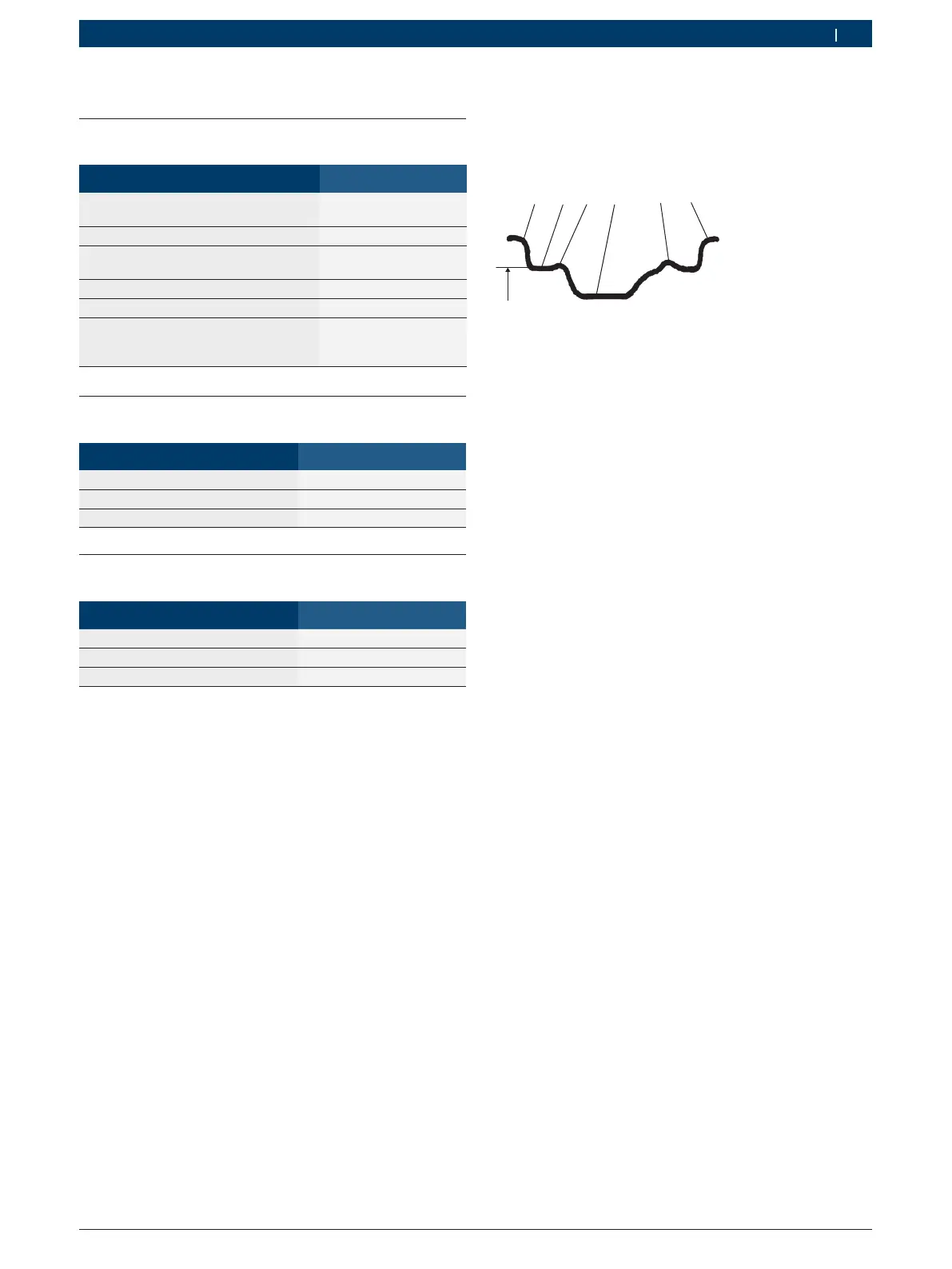

Fig. 11: Rim
1 Rim edge
2 Rim shoulder
3 Hump (lifted edge)
4 Semi drop centre
D Rim diameter
RFT
Run Flat Tyre, tire with emergency functioning features,
normal wheel and spare wheel at the same time.
TCE
Tyre Change Equipment, abbreviation for tire changer.
UHP
UltraHighPerformance tires, name of the brand of a tire
for high speeds.
wdk
German rubber industry association
(registered association).
