Bosch Tronic 3000T Manual For Installation

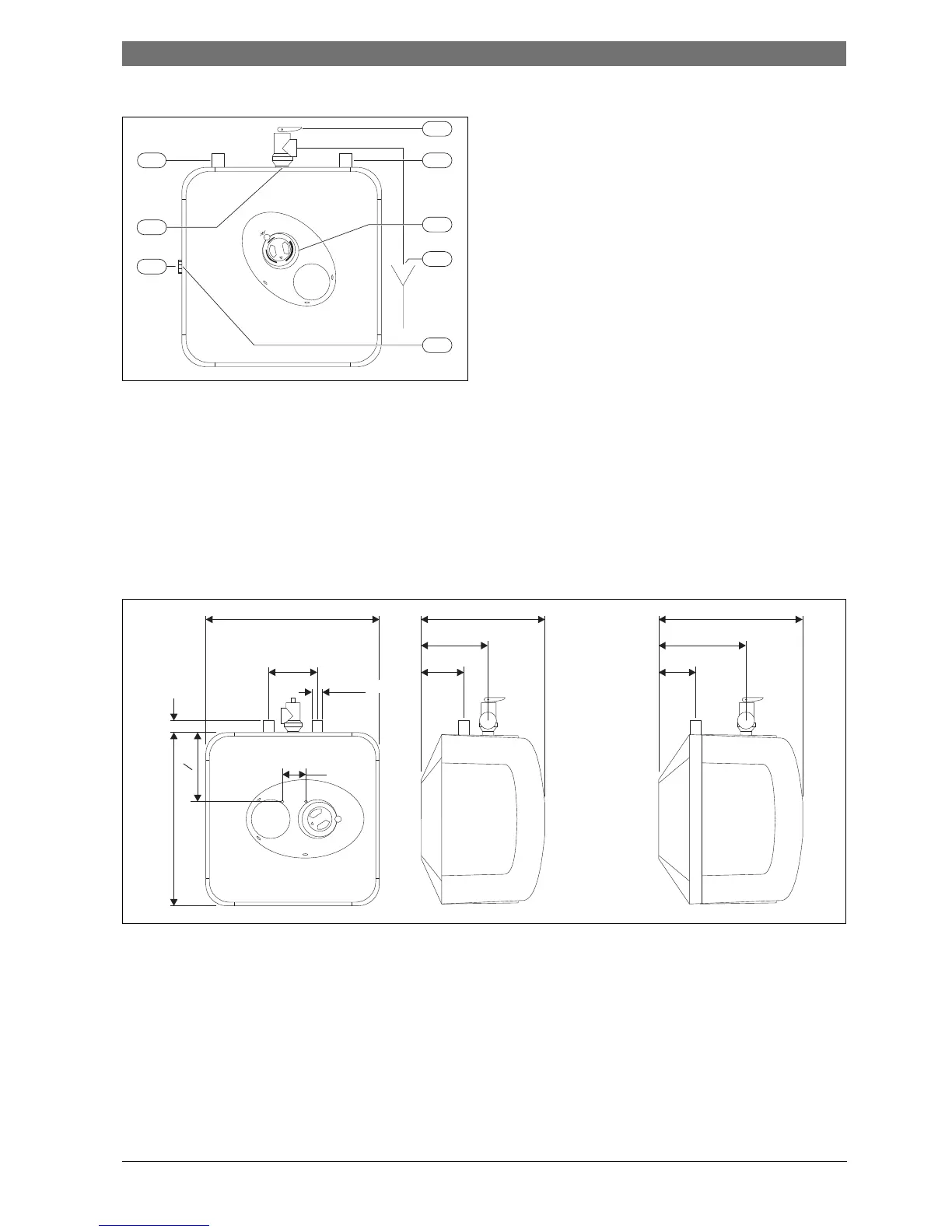

Information about the product | 5
6 720 801 072 (2013/05)Tronic 3000T
Models ES8 (Vertical installation)
Fig. 4
[1] Temperature & pressure relief valve, ¾ NPT male
[2] Cold water inlet ¾ NPT male
[3] Thermostat
[4] Temperature & pressure relief valve discharge line to drain
[5] ¾ NPT female tapping for relief valve
[6] Hot water outlet ¾ NPT male
[7] ¾ NPT male plug
[8] ¾ NPT female tapping for tap
2.2 Dimensions
Models ES2.5 and ES4 (Vertical installation only)
Fig. 5
1
2
4
5
3
6720801072-03.1V
6
7
8
M
IN
O
F
F
M
A
X
IDEAL
10 ¾”
6¼”
3½”
13 ½”
9”
3½”
2½”2 ½”
3¾”
13 ¾”
½ NPT male
13 ¾”
5”
3
8
1”
6720801072-04.1V
ES2.5 ES4

Bosch Tronic 3000T Specifications

General

Water Connection	1/2" NPT
Tank Material	Glass-lined
Type	Electric
Category	Water Heater
Capacity	2.5, 4, 7 gallons
Amperage	12 amps
Installation	Wall-mounted
Safety Features	Overheat protection
Water Pressure	Maximum 150 psi
Flow Rate	4.4 GPM
