6 720 220 376
Revised 02-13 Subject to change without prior notice
11TSTBM3H2CPH6W-A
UNIT WITH ACTIVE OR PASSIVE
DEHUMIDIFICATION AND HUMIDIFICATION RELAY
BASE MODULE
HUMIDIFIER
SOLENOID
W2
C
O
W/E
B
RH
RC
Y1
D
G
Y2
H
HVAC
EQUIPMENT
PASSIVE / ACTIVE
DEHUMIDIFICATION
COMMON FROM
HVAC EQUIPMENT
HUMIDIFIER
EQUIPMENT

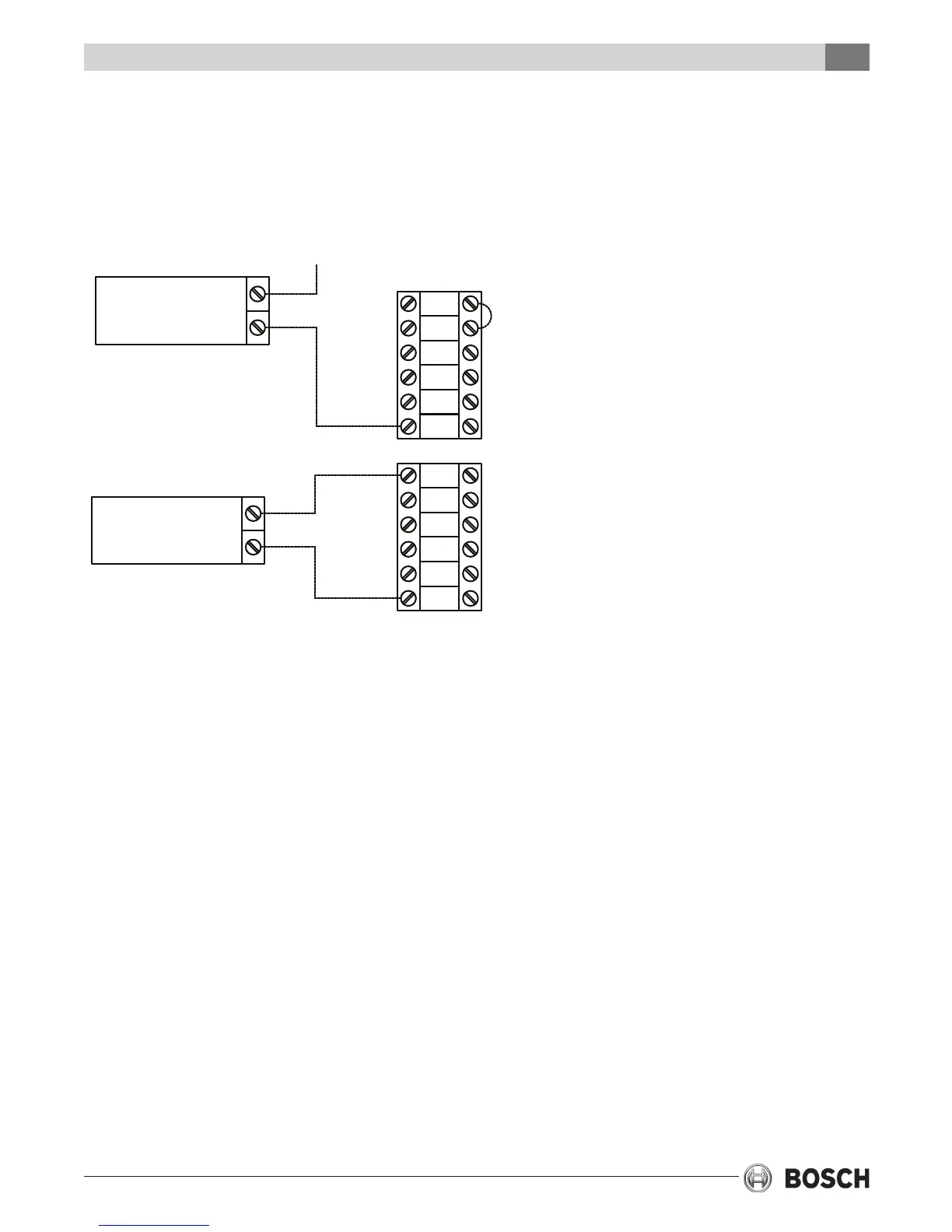

Wiring Schematics
