26 | WBE 5210 | Pneumatic systemen

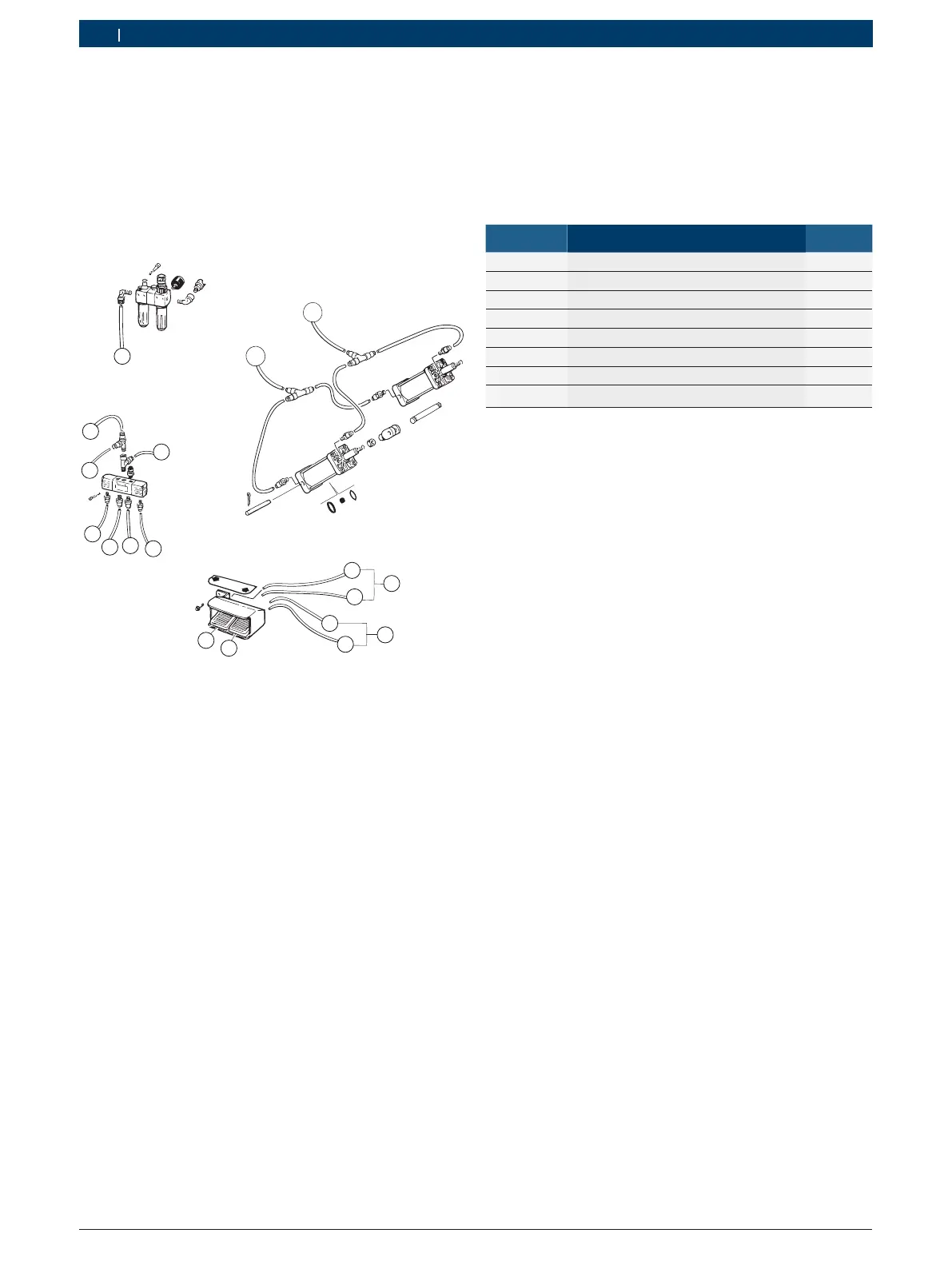

Pneumatic system9.
Here you are the pneumatic system belonging to the
lifting machine in order to check the system:
Check the pressure on the manometer (min 8bar).

Disconnect the pedals and check that the power 
supply gets to the pedals.
Disconnect the cylinders and check that the power 
supply gets to the cylinders.
V
T
U
S
SX
DX
DX
SX
Y
X
Z
U
V
S
Y
X
T
Z
Suggested spare parts10.
Fundamental tools for a correct assistance:
Allen screws set

Screwdriver (crosshead and slotted screwdrivers) 
Hex key set 
Tester (multimeter) 
Code Description Quantity
41335 Belt 1
654432 Detector 2
654549 Power board 1
654434 Optoelettronic device 1
653756 CPU board for SBM 855 1
653873 Panel+ Display board for SBM 855 1
42433 Micro Pedal 1
653957 Pneumatic valve 1
