10 | English
2 609 007 281 | (26.6.13) Bosch Power Tools

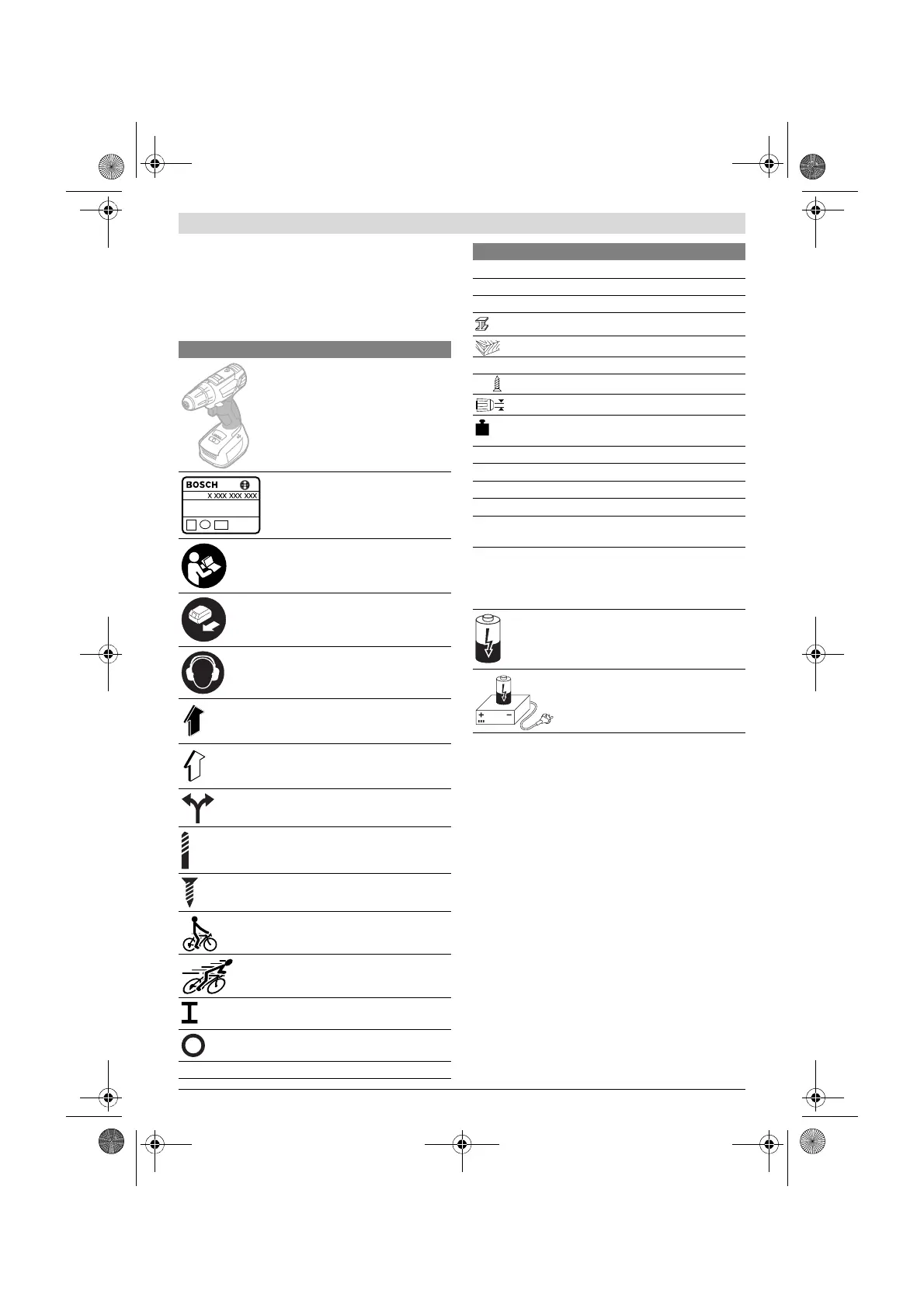

Symbols
The following symbols are important for reading and under-
standing the operating instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the machine in a better and safer
manner.
Delivery Scope
Cordless Drill/Driver.
Battery, application tools and other accessories shown or de-
scribed are not part of the standard delivery scope.
A complete overview of accessories can be found in our ac-
cessories program.
Intended Use
The machine is intended for driving in and loosening screws
as well as for drilling in wood, metal, ceramic and plastic.
The light of this power tool is intended to illuminate the power
tool’s direct area of working operation and is not suitable for
household room illumination.
Technical Data
The technical data of the machine are listed in the table on
page 70.
Please observe the article number on the type plate of your
machine. The trade names of the individual machines may
vary.
Declaration of Conformity
We declare under our sole responsibility that the product de-
scribed under “Technical Data” is in conformity with the fol-
lowing standards or standardisation documents: EN 60745
according to the provisions of the directives 2009/125/EC
(Regulation 1194/2012), 2011/65/EU, 2004/108/EC,
2006/42/EC.
Technical file (2006/42/EC) at:
Robert Bosch GmbH, PT/ETM9,
D-70745 Leinfelden-Echterdingen
Symbol Meaning
PSR 14,4 LI-2/PSR 1440 LI-2/
PSR 18 LI-2/PSR 1800 LI-2:
Cordless Drill/Driver
Grey-marked area: Handle
(insulated gripping surface)
Article number
Read all safety warnings and all instruc-
tions
Before any work on the machine itself,
remove the battery
Always wear ear protection.
Movement direction
Reaction direction
Right/left rotation
Drilling
Screwdriving
Low speed
High speed
Switching On
Switching Off
U Rated voltage
n
0
1 No-load speed (1. gear)
n
0
2 No-load speed (2. gear)
M Maximum torque according to ISO 5393
Metal
Wood
Ø Drilling diameter, max.
Ø Max. screw dia.
Chuck clamping range
Weight according to EPTA-Procedure
01/2003
L
wA
Sound power level
L
pA
Sound pressure level
KUncertainty
a
h
Vibration total value
Symbol Meaning
