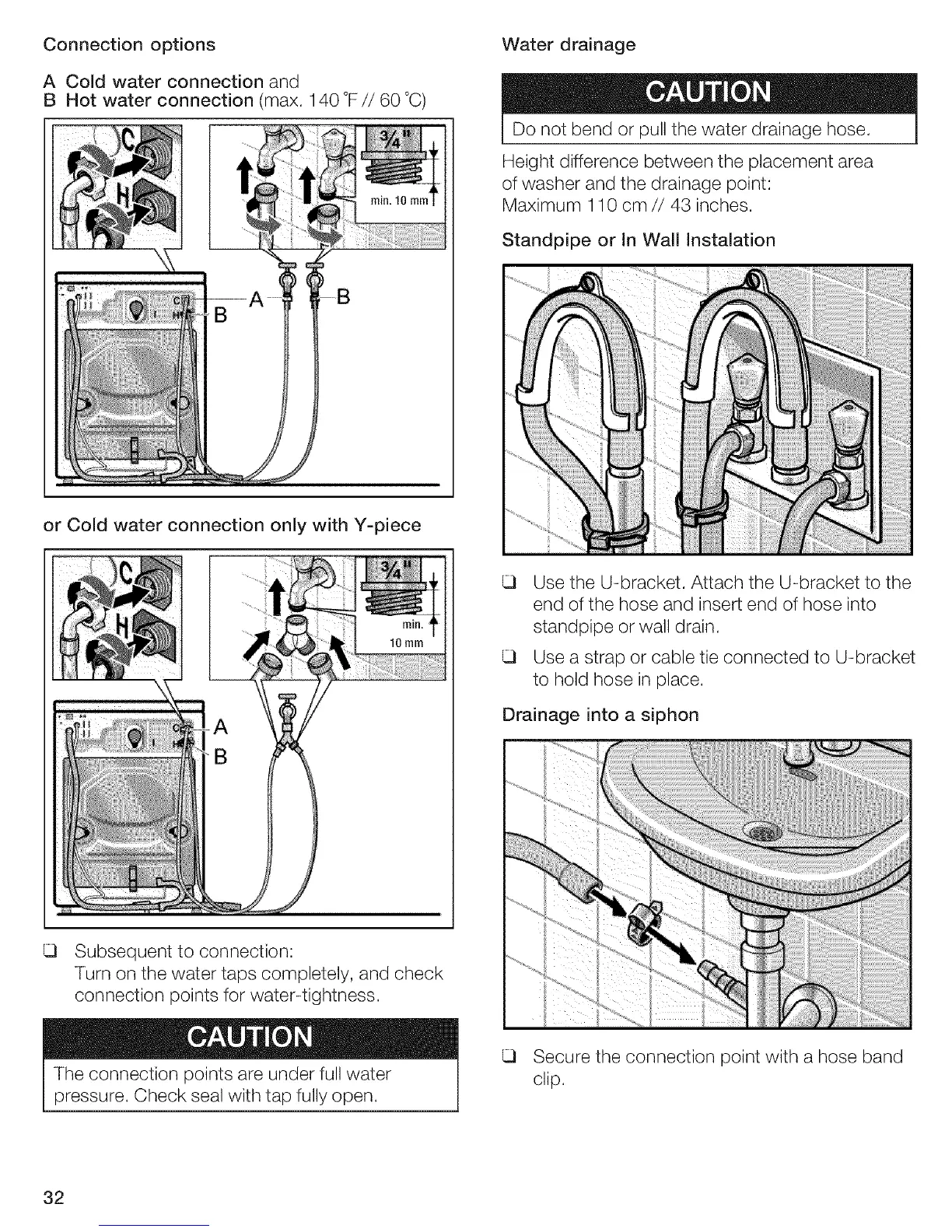

Connection options
A Cold water connection and
B Hot water connection (max,140°F//60 °C)
Water drainage
Do not bend or pullthe water drainagehose.
Heightdifferencebetweenthe placementarea
of washerandthe drainagepoint:
Maximum110 cm//43 inches.
Standpipe or In Wall Instalation
or Cold water connection only with Y-piece
Usethe U-bracket.Attach the U-bracket to the
end of the hoseand insertend of hoseinto
standpipeor wall drain.
Usea strap or cable tie connectedto U-bracket
to holdhose in place.
Drainage into a siphon
Subsequentto connection:
Turn onthe watertaps completely,and check
connection points for water-tightness.
Theconnection pointsare underfullwater
pressure.Check sealwithtap fullyopen.
Securethe connection point with a hoseband
clip.
