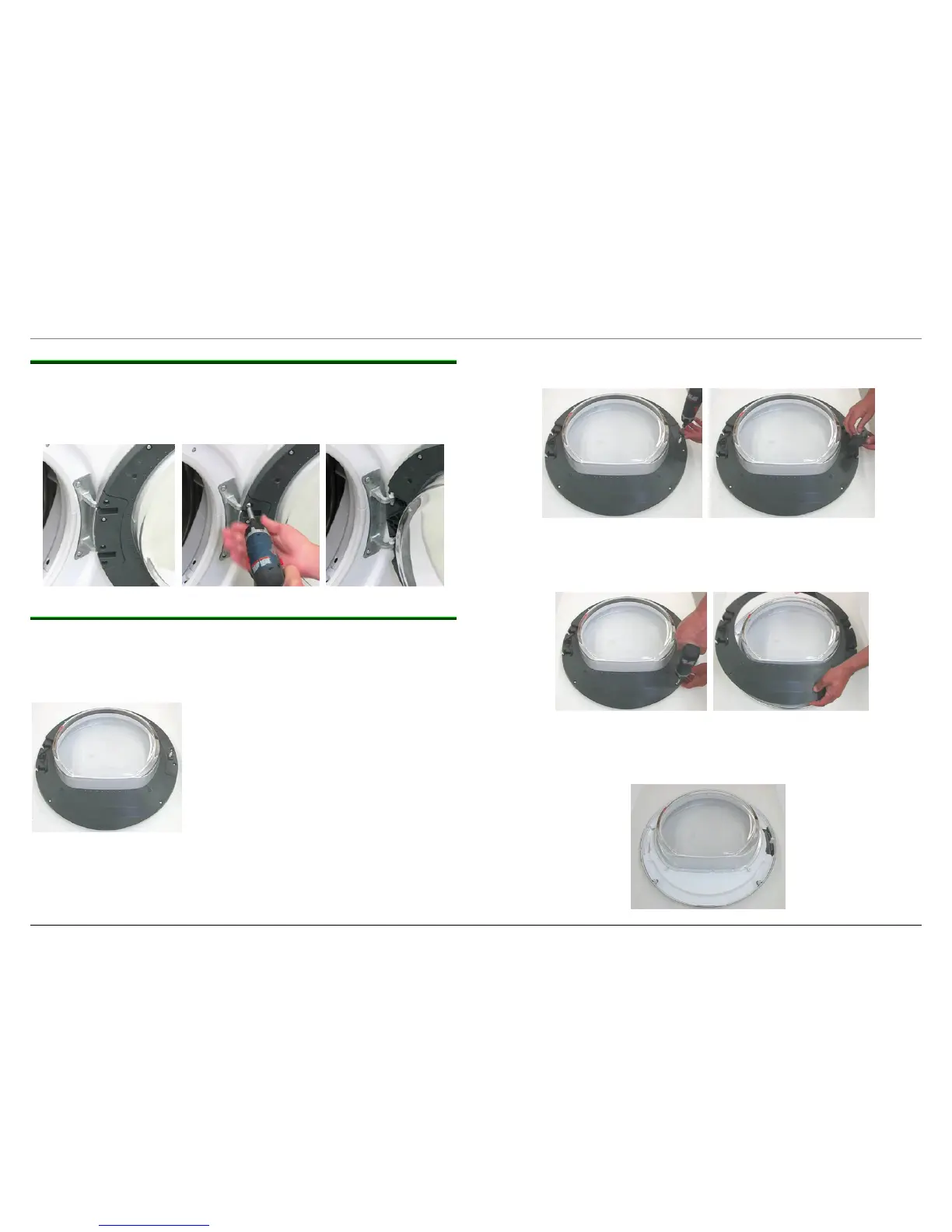

5.1.7 Door removal
To remove the door from the front panel, open the door, remove four
(4) M4.2x19 T-20 Torx hinge cover screws, remove the hinge cover
and lift the door up and away from the panel.
5.1.8 Door disassembly
The door isn’t available as a complete assembly, but is easily
disassembled and reassembled. It’s assembled using screws – no
plastic latches are used.
Turn the door inside-out (i.e. with inner
door glass facing up).
Remove two (2) M4.2x19 T-20 Torx latch cover screws and remove
the latch cover and latch out from the door.
Once latch has been removed, remove the remaining four (4) M4.2x19
and five (5) countersunk T-20 Torx screws from the inner door frame.
Lift the inner frame from the door.
The door glass bowl is shown here in the standard hinge right
position. Note the door glass and inner ring positions before removing
them as they change depending on the hinge position (right or left).
702_58300000143767_ara_en_a Page 17 of 33
