Bose 601 II Series User Manual

6

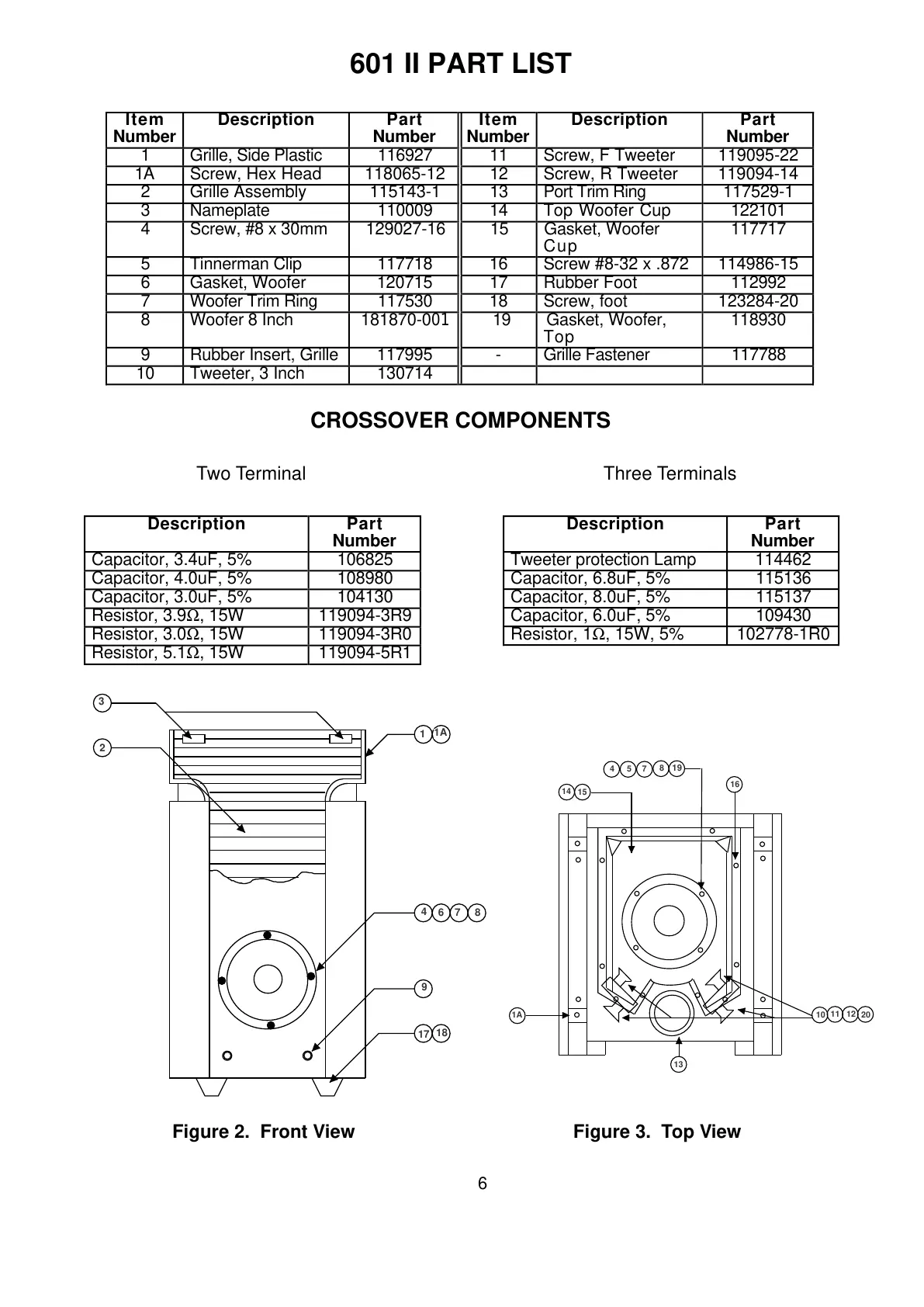

601 II PART LIST
CROSSOVER COMPONENTS
Two TerminalThree Terminals
Description Part
Number
Capacitor, 3.4uF, 5% 106825
Capacitor, 4.0uF, 5% 108980
Capacitor, 3.0uF, 5% 104130
Resistor, 3.9Ω, 15W 119094-3R9
Resistor, 3.0Ω, 15W 119094-3R0
Resistor, 5.1Ω, 15W 119094-5R1
Description Part
Number
Tweeter protection Lamp 114462
Capacitor, 6.8uF, 5% 115136
Capacitor, 8.0uF, 5% 115137
Capacitor, 6.0uF, 5% 109430
Resistor, 1Ω, 15W, 5% 102778-1R0
Figure 2. Front View Figure 3. Top View
Item
Number
Description Part
Number
Item
Number
Description Part
Number
1 Grille, Side Plastic 116927 11 Screw, F Tweeter 119095-22
1A Screw, Hex Head 118065-12 12 Screw, R Tweeter 119094-14
2 Grille Assembly 115143-1 13 Port Trim Ring 117529-1
3 Nameplate 110009 14 Top Woofer Cup 122101
4 Screw, #8 x 30mm 129027-16 15 Gasket, Woofer
Cup
117717
5 Tinnerman Clip 117718 16 Screw #8-32 x .872 114986-15
6 Gasket, Woofer 120715 17 Rubber Foot 112992
7 Woofer Trim Ring 117530 18 Screw, foot 123284-20
8 Woofer 8 Inch 181870-001 19 Gasket, Woofer,
Top
118930
9 Rubber Insert, Grille 117995 - Grille Fastener 117788
10 Tweeter, 3 Inch 130714
3
2
1
1A
4
9
17
18
6
7 8
4
7
8
16
14
15
1A
13
10
11 12
20
5
19
