8
SETTING UP
EnglishFrançais Español
2. Use the supplied 50-ft (15.2 m) speaker cables for the speakers at the rear of your room
(Figure 5).
Insert them into the jacks on the module as follows:
• RR goes into the jack labeled Right Rear.
• LR goes into the jack labeled Left Rear.
3. At the other end of each cable, insert the red-collared (+) wire into the red (+) terminal on
one speaker. Insert the other wire into the other terminal (Figure 5).
Notice a label on each red-collared wire that matches it to the proper speaker:
• L for the speaker at the left front • LR for the speaker at the left rear
• R for the speaker at the right front • RR for the speaker at the right rear
• C for the speaker at the center front

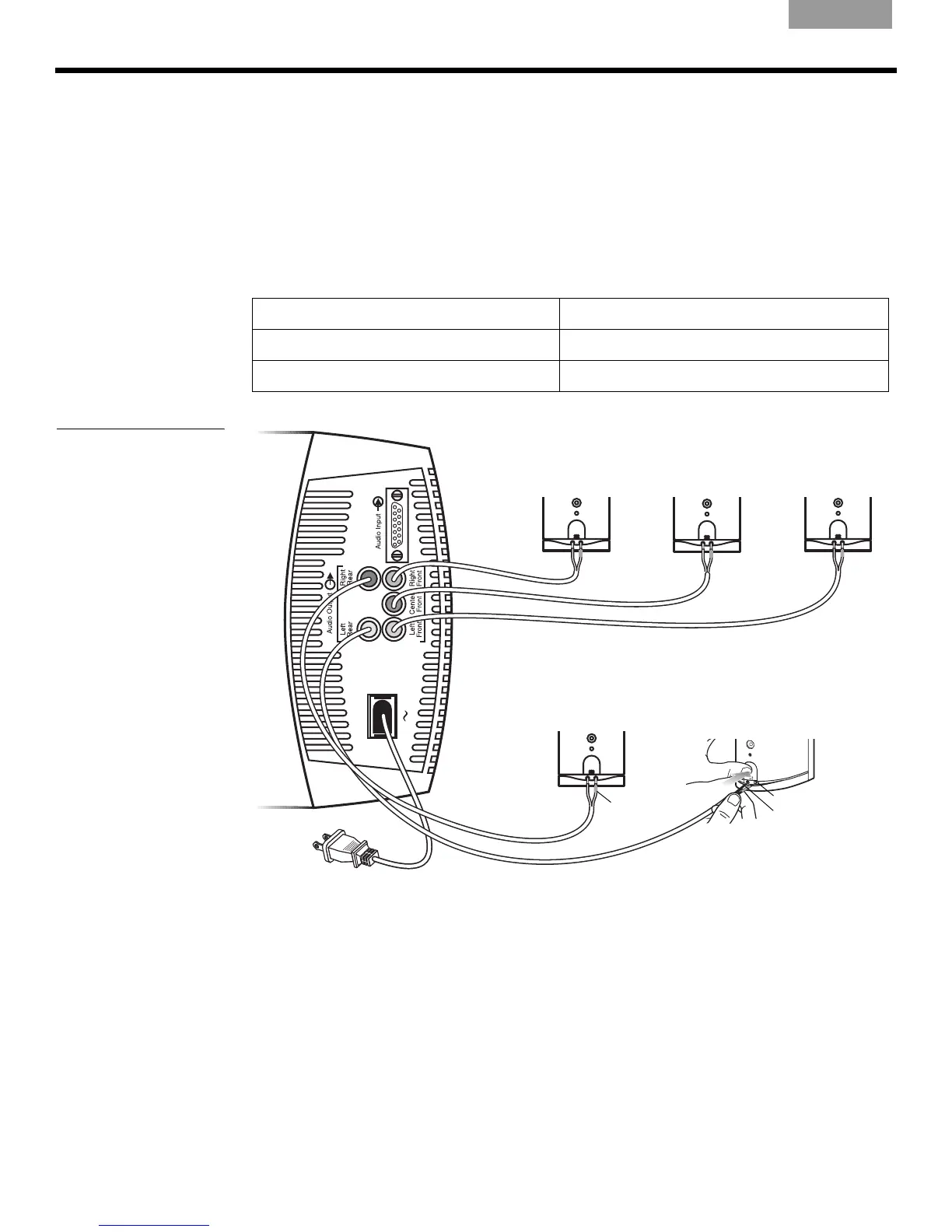

Figure 5
Completing connections of
the small speakers to your
Acoustimass
®
module
Red-collared wire
labeled LR
Red terminal
Right
front speaker
Left
front speaker
Center
front speaker
RR
label
Acoustimass
®
10 system module
