Setting Up

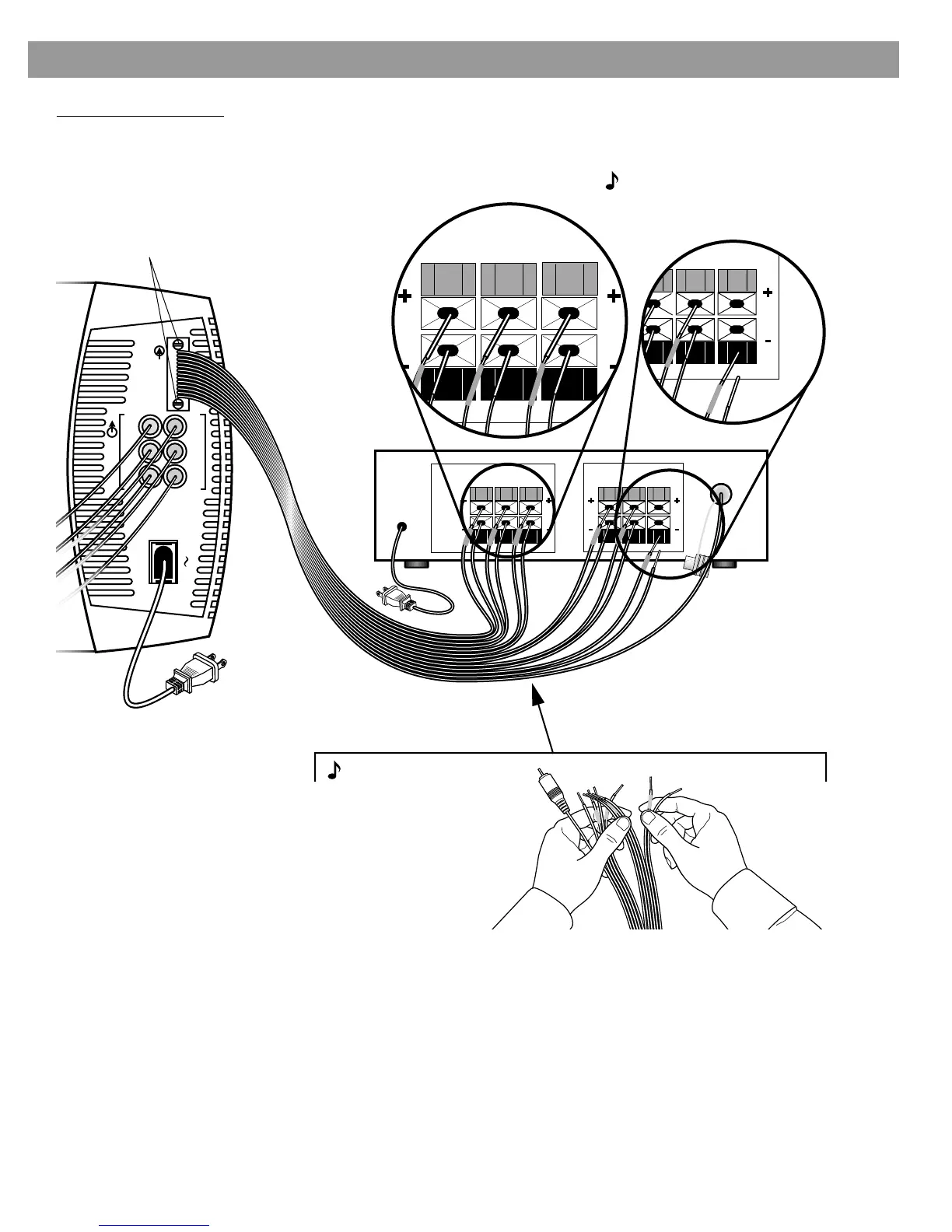

Figure 6
Acoustimass
®
module to
receiver connections
Audio Output
Left
Rear
Center
Rear
Right
Rear
Left
Front
Center
Front
Right
Front
Audio Input
SURROUND SPEAKERS
R CENTER
FRONT SPEAKERS A
L
LFE/SUBWOOFER
OUT
R CENTERL
R CENTERL
FRONT SPEAKERS A
R CENTERL
Note: The center surround connection
is used only when a center rear
speaker is installed.
Note: Cables may be
separated or “unzipped”
as much as needed to
comfortably reach the
surround receiver
connections.
Thumbscrews
AM264924_00 _V.pdf • August 13, 2002

Bose Acoustimass 16 Specifications

General

Speaker Type	Home theater speaker system
Components	5 satellite speakers, 1 subwoofer
Impedance	4-8 ohms
Power Handling	10 - 200 watts per channel
Configuration	5.1
Satellite Speaker Weight	2.2 lbs
Frequency Response	20 Hz - 20 kHz
Subwoofer Weight	35 lbs
