COMPLETE SYSTEM CONNECTIONS
EnglishTAB 6TAB 8 TAB 7 TAB 3TAB 5 TAB 2TAB 4

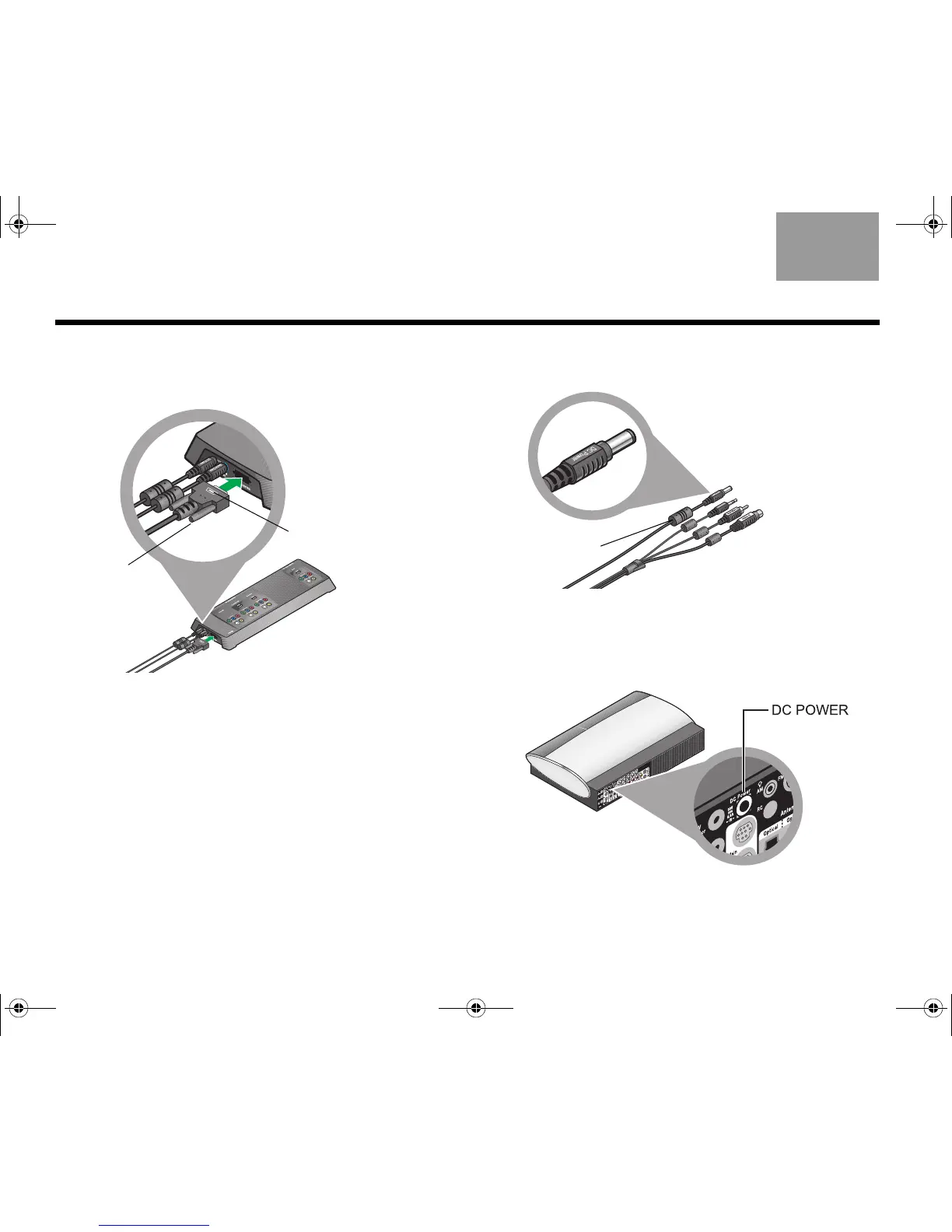

9. Attach the large plug on the cable, with the white
symbol facing up, into the remaining connector on
the VS-2 connector.
Be sure to tighten the thumb screws on either side
of the plug to secure it.
10. At the other end of the VS-2 cable, locate the plug
labeled DC power.
The cable for this plug has a large cylinder
attached.
11. On the rear of the media center, locate the
connector labeled DC Power.
White
symbol
Thumb
screw
Large
cylinder
