21
COMPLETE SYSTEM CONNECTIONS
TAB 5TAB 4TAB 6TAB 8TAB 7English TAB 3TAB 2

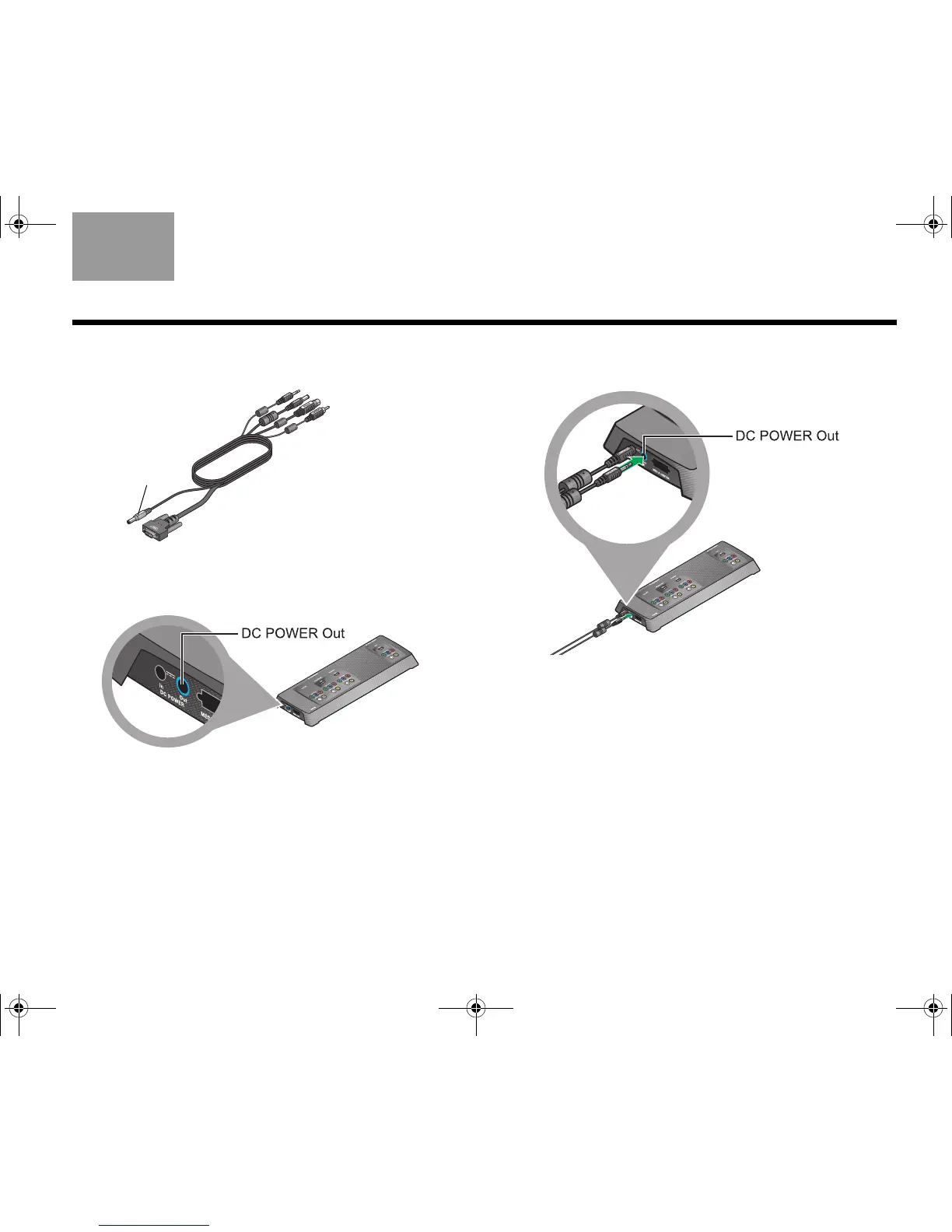

6. Choose the VS-2 cable and notice the small plug at
one end.
7. Locate the connector labeled DC POWER Out on
the VS-2 video enhancer.
8. Insert the gray plug labeled DC Power into this
connector.
Important Note: The two power cables that plug into
the end of the VS-2 contain antennas for the radio
frequency (RF) remote control.
BE SURE to fully extend both cables and keep them
away from other system cables as much as possible.
