Bose DesignMax DM5SE User Manual

English • 3Installation Guide • DesignMax DM5SE
BoseProfessional.com
Overview

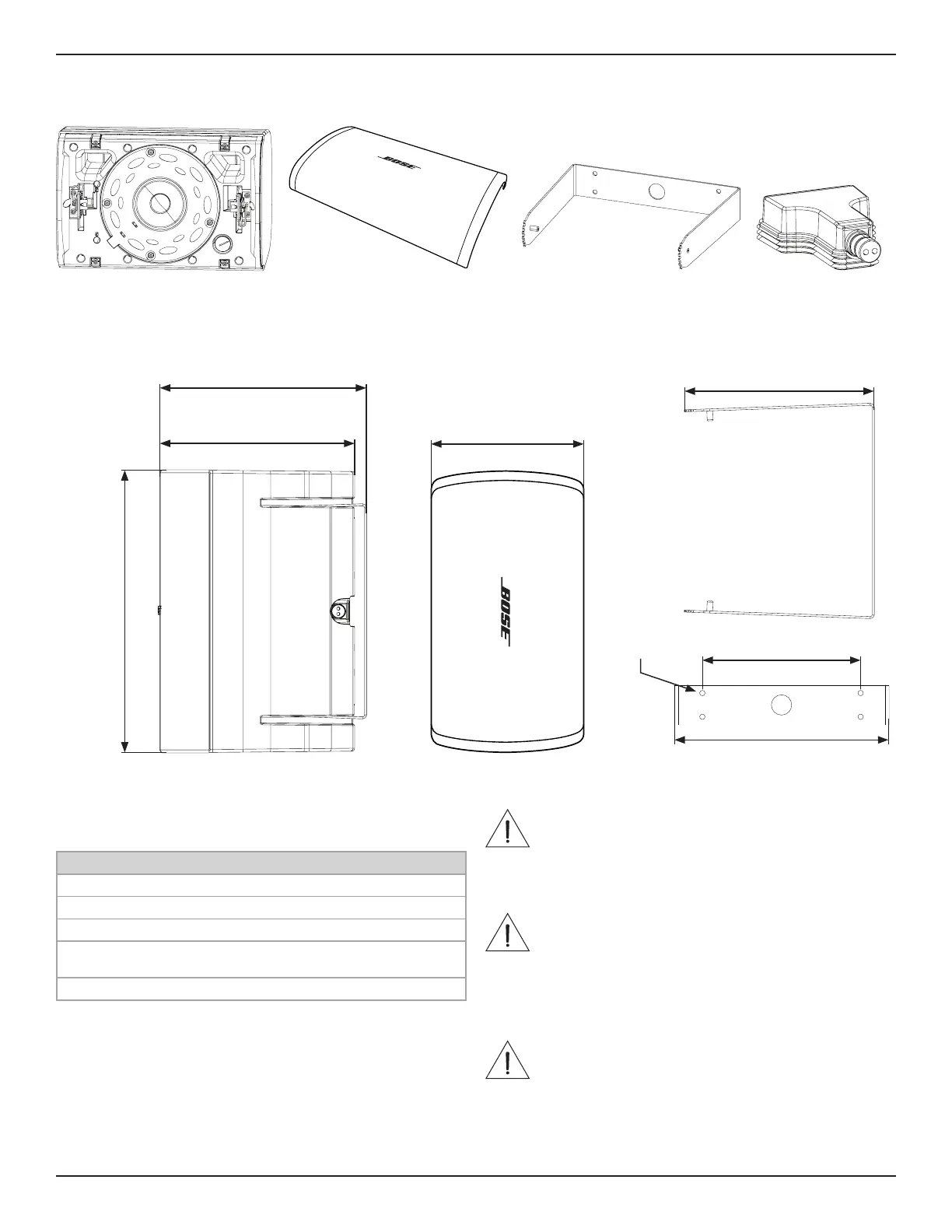

Package Contents
Product Dimensions
× 2 × 2 × 2 × 2
223 mm
8.78 in
160 mm
6.30 in
192 mm
7.56 in
192 mm
7.56 in
197 mm
7.75 in
208 mm
8.19 in
286 mm
11.25 in
Technical Specifications
For additional specifications, see the DesignMax DM5SE technical
data sheet at BoseProfessional.com.
Physical
Product Dimensions Height: 286 mm (11.25 in)
Width: 192 mm (7.56 in)
Depth: 197 mm (7.75 in)
Net Weight, Loudspeaker with
grille and bracket (single)
4.75 kg (10.5 lb)
Shipping Weight (pair) 11.43 kg (25.2 lb)
Important Installation Information
It is the installer’s responsibility to ensure installation of the loudspeakers
and mounting system is performed in accordance with all applicable
codes, including local building codes and regulations. Consult the local
authority having jurisdiction before installing this product.
It is the responsibility of the installer to ensure the safety of the
loudspeaker installation. Failure to properly install the loudspeaker could
result in damage, injury, or death.
This product is not intended for installation or use in indoor water facility
areas (including, without limitation, indoor pools, indoor water parks, hot
tub rooms, saunas, steam rooms and indoor skating rinks).
The hardware for securing the loudspeaker to the mounting surface is
not supplied. Consult a building professional for the proper mounting
hardware before installing the loudspeaker.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produces heat.
Do not mount on surfaces that are not sturdy, or that have hazards
concealed behind them, such as electrical wiring or plumbing. If you are
not sure about installing the bracket, contact a qualified professional
installer. Ensure the bracket is installed according to local building codes.
Do not expose loudspeaker or mounting components to any chemical
substances that are not specified by Bose Professional, including but
not limited to lubricants, cleaning agents, contact sprays, or other
hydrocarbon-based solvents. Exposure to such substances can lead to
degradation of the plastic material, resulting in cracking and creating a
falling hazard.
Ø 5.5 mm
0.22 in

Bose DesignMax DM5SE Specifications

General

Woofer	Yes
Speaker type	2-way
Woofer diameter	133.35 mm
Tweeter diameter	25.4 mm
Number of drivers	2
Speaker placement	Wall-mountable
Audio output channels	- channels
Number of woofer drivers	1
Woofer diameter (imperial)	5.25 \
Tweeter diameter (imperial)	1 \
Certification	IP55, UL14804, S5591/UL, NFPA701, IEC 60268-5, RoHS, CE
Product color	Black
Housing material	Plastic
Recommended usage	Conferencing system
Impedance	8 Ω
Sensitivity	111 dB
Frequency range	65 - 20000 Hz
RMS rated power	50 W
Crossover frequency	1800 Hz
Peak Music Power Output (PMPO)	240 W
Operating temperature (T-T)	-25 - 70 °C
Package weight	11400 g
Quantity per pack	2 pc(s)
Connectivity technology	Wired
Harmonized System (HS) code	85182200

Weight and Dimensions

Depth	197 mm
Width	192 mm
Height	286 mm
Weight	4800 g
Depth (with stand)	208 mm
