Setup
Installation Options

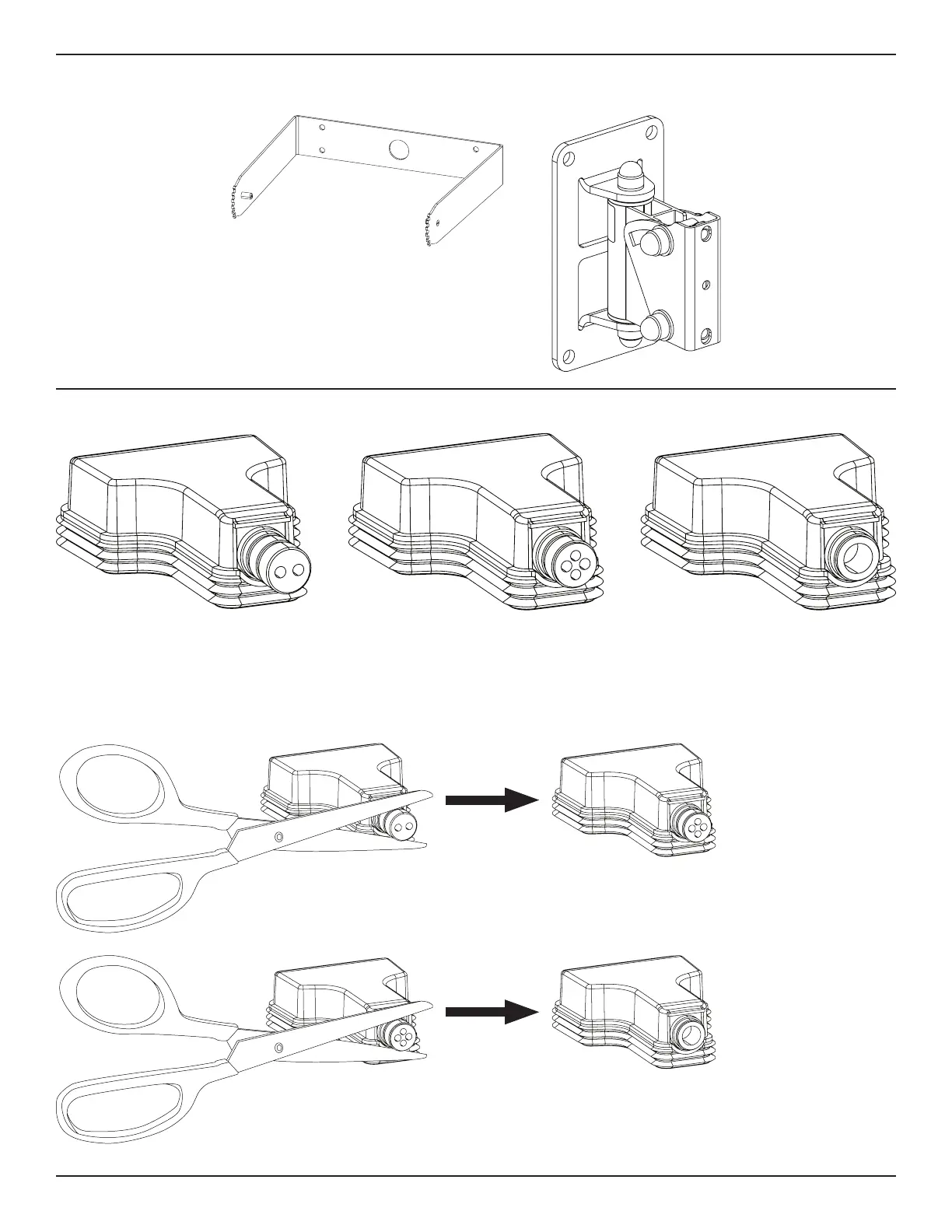

Installation Options and Accessories
q Mounting bracket (included)
w MBPWR-50 pan-and-tilt bracket (optional)
q w
Preparing the Weather-resistant Input Cover
The weather-resistant input cover is designed for three dierent wiring scenarios (see above). To change the configuration of the input
cover to support your wiring scenario, cut along the perforation on the rubber conduit.
Note: Indoor-only applications do not require use of the input cover.
Single In
In and Out Wide Open
Note: If using the wide open rubber conduit configuration, it is the
installer's responsibility to seal against water ingress into the Euroblock
connector.
Note: If installing the loudspeaker with the rubber conduit facing
upward, it is the installer's responsibility to seal against water ingress
into the Euroblock connector.

Bose DesignMax DM5SE Specifications

General

Woofer	Yes
Speaker type	2-way
Woofer diameter	133.35 mm
Tweeter diameter	25.4 mm
Number of drivers	2
Speaker placement	Wall-mountable
Audio output channels	- channels
Number of woofer drivers	1
Woofer diameter (imperial)	5.25 \
Tweeter diameter (imperial)	1 \
Certification	IP55, UL14804, S5591/UL, NFPA701, IEC 60268-5, RoHS, CE
Product color	Black
Housing material	Plastic
Recommended usage	Conferencing system
Impedance	8 Ω
Sensitivity	111 dB
Frequency range	65 - 20000 Hz
RMS rated power	50 W
Crossover frequency	1800 Hz
Peak Music Power Output (PMPO)	240 W
Operating temperature (T-T)	-25 - 70 °C
Package weight	11400 g
Quantity per pack	2 pc(s)
Connectivity technology	Wired
Harmonized System (HS) code	85182200

Weight and Dimensions

Depth	197 mm
Width	192 mm
Height	286 mm
Weight	4800 g
Depth (with stand)	208 mm
