6 • English DesignMax DM5SE • Installation Guide

BoseProfessional.com

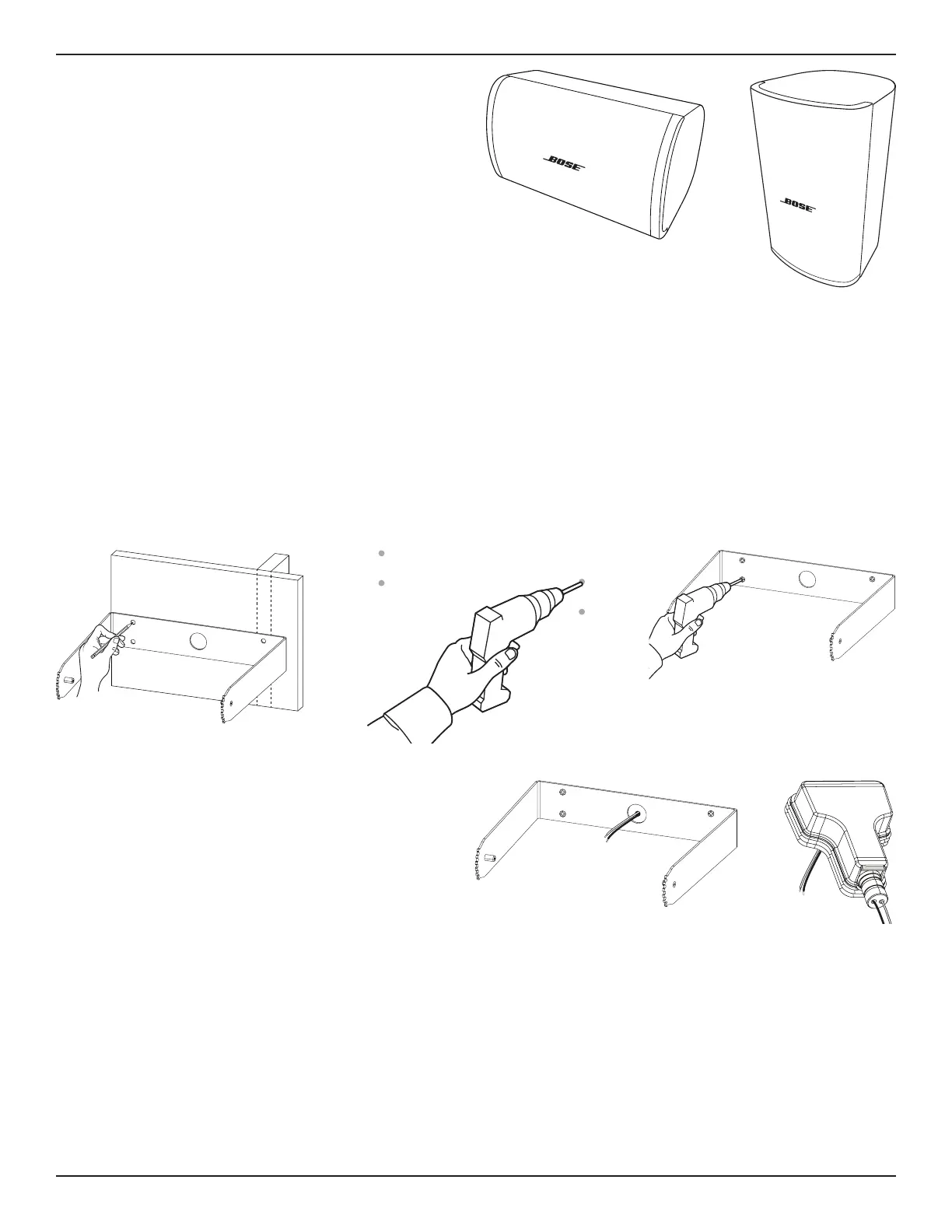

Setup

Loudspeaker Orientation

Choose the loudspeaker orientation best suited for your

installation.

q Horizontal

w Vertical

q w

Installing the Bracket

Note: When choosing an installation location, at least one of the mounting bracket's attachment points must be secured to a support

structure. Attachment points not secured to a support structure must be secured using appropriate hardware for the installation. Choose

fasteners that are consistent with all local building codes and requirements.

Note: Choose appropriate fasteners to support the weight of the loudspeaker (4.75 kg [10.5 lb]).

1. Mark the drill holes.

2. Drill four holes (sized for appropriate fasteners) into the wall.

3. Secure the bracket to the wall with four screws (not included). Note: Use M5 or #10 sized screws.

q w e

Wiring the Connector

1. Feed the wires through the center hole of the bracket.

2. Remove the connector from the loudspeaker.

3. For outdoor installations, insert the wires through the

bottom of the input cover. See Preparing the Weather-

resistant Input Cover on page 4.

4. Wire the connector. For wiring information, see Wiring

the Loudspeaker on page 5.

q e

Note: Installation in close proximity to cooking surfaces where the loudspeaker may be directly exposed to cooking oils, such as in

commercial cooking environments, may decrease the performance or functionality of the loudspeaker.
