5.88 (149.23mm)
1.88 (47.63mm)
2.63 (66.68mm)
3.03 (76.99mm)
3.03 (76.99mm)
3.03 (76.99mm)

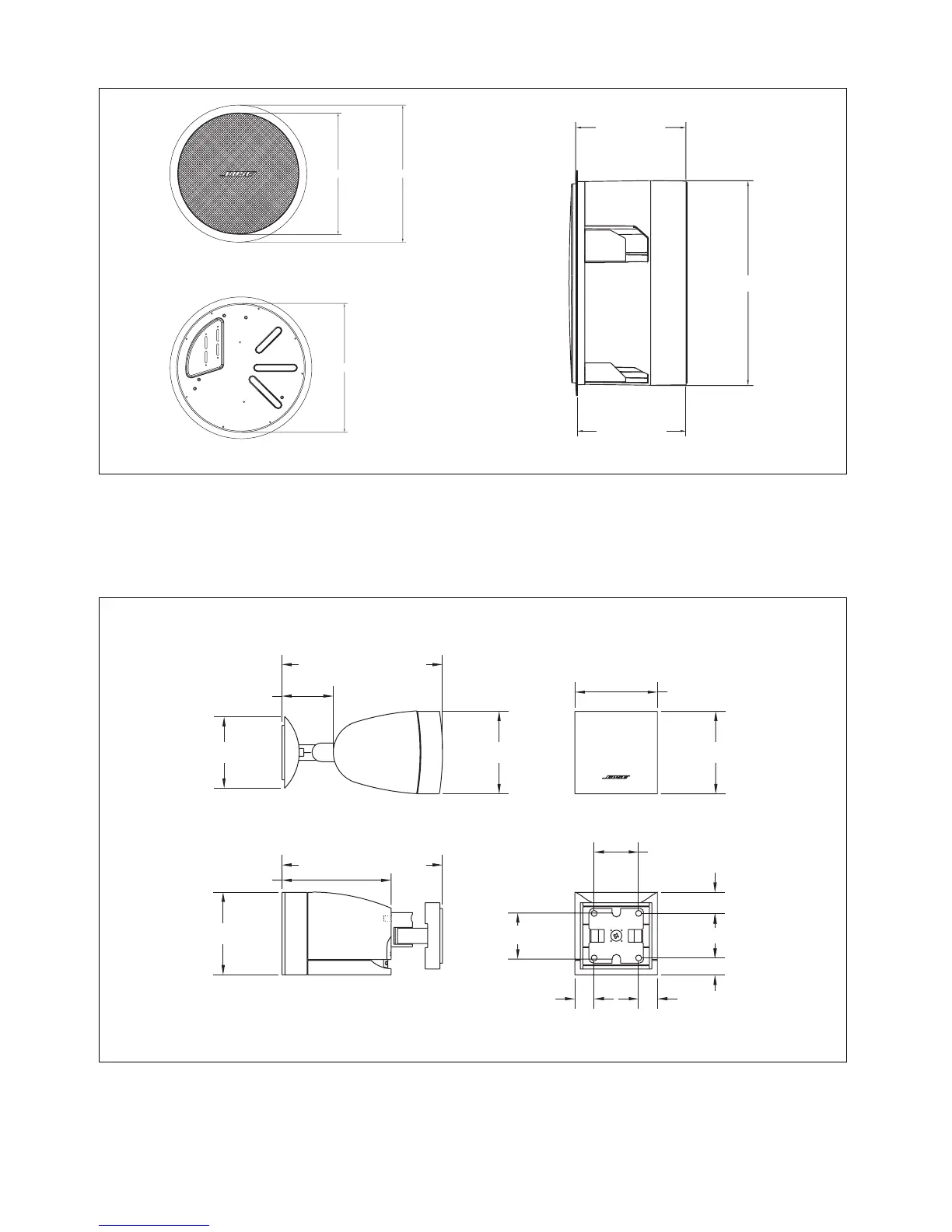

FREESPACE 3 SURFACE-MOUNT SATELLITE
FREESPACE 3 ACOUSTIMASS MODULE (FS3B)
FRONT VIEW
TOP VIEW
SIDE VIEW
FRONT VIEW
REAR VIEW
REAR VIEW SIDE VIEW
13.65 [346.7mm] 15.40 [391.2mm]
14.00 [355.6mm]
7.43 [188.6mm]
5.88 [149.23mm]
1.88 [47.63mm]
2.63 [66.68mm]
4.00 [101.60mm]
3.03 [76.99mm]
5.88 [149.23mm]
1.69 [42.88mm]
0.70 [17.86mm] 0.70 [17.86mm]
0.62 [15.75mm]
1.63 [41.28mm]
0.79 [19.96mm]
1.63 [41.28mm]
3.03 [76.99mm]
3.03 [76.99mm]
3.03 [76.99mm]
7.55 [191.8mm]
14.00 [355.6mm]
