Bose FREESPACE 3-II - Technical Information

Bose
®
FreeSpace
®
3-II system
TECHNICAL INFORMATION
FREESPACE 3-II SYSTEM
Frequency range
50 Hz to 16 kHz (±3dB)

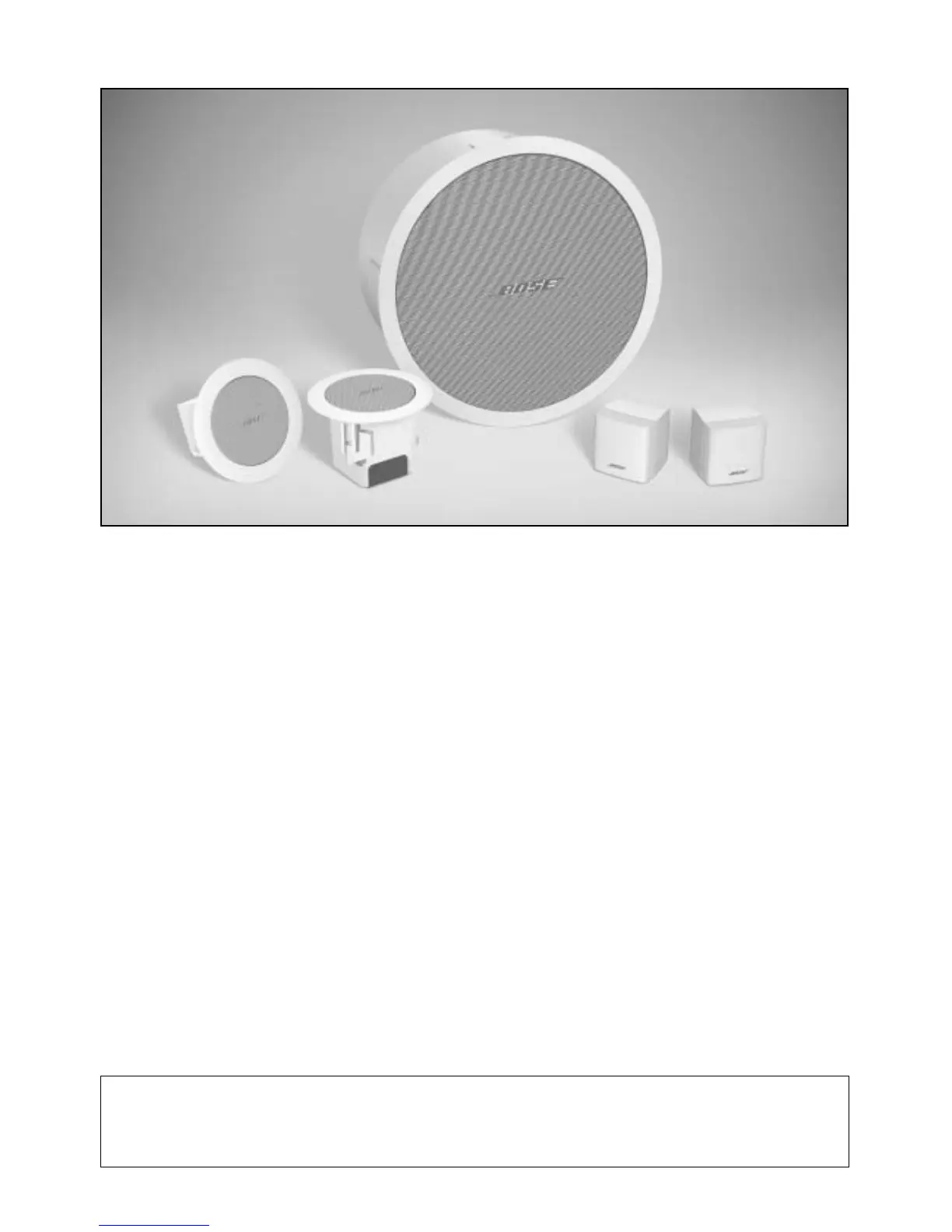

System components
•FreeSpace 3-II Acoustimass
®
module
70V/100V/6 ohm (25W, 50W,
100W, 200W taps in mono or 6 Ω;
100W in mono or stereo)
PC 029386 white - one per box
PC 029686 black - one per box
•FreeSpace 3 satellite speaker
(surface-mount with bracket)
PC 025596 white - two per box
PC 025595 black - two per box
•FreeSpace 3F satellite speaker
(flush-mount)
PC 029387 white - two per box
PC 029827 black - two per box
Sensitivity
1
82dB-SPL @ 1W, 1 m (pink noise)
Maximum acoustic output
93dB-SPL average in a 45,000 ft
3
room, with an RT
60
of 1 second, ±3dB
Long-term power handling
4
70/100V: 200W continuous
Low impedance: 100W continuous
Nominal impedance
2-satellite and 4-satellite, direct:
6Ω per channel
FREESPACE 3-II ACOUSTIMASS MODULE
(FS3B)
Frequency range
50 Hz to 210 Hz (±3dB)
Sensitivity
1
76dB @ 1W, 1 m (pink noise) per channel
79dB-SPL @ 1W, 1 m (pink noise) mono
Maximum acoustic output
2
96dB-SPL @ 1 m (pink noise and IEC
3
noise)
per channel
102dB-SPL @ 1 m (pink noise and IEC noise)
Long-term power handling
4
70/100V: 200W continuous (mono)
Low impedance: 50W per channel
stereo or 100W mono, continuous
Nominal impedance
Direct: 6Ω
Dispersion
Omnidirectional
Mechanical specifications
Dimensions:
15.4" (39.1 cm) outer flange diameter;
14.25" (36.1 cm) ceiling hole diameter;
7.5" (19.01 cm) height to top of housing
Weight: 14 lb (6.36 kg)
Fuses/protection: internal over-power
protection
FREESPACE 3-II SATELLITES
Frequency range
210 Hz to 16 kHz (±3dB)
Sensitivity
1
84dB-SPL @ 1W, 1 m (pink noise)
Maximum acoustic output
2
95dB-SPL @ 1 m (pink noise)
95dB-SPL @ 1 m (pink noise)
1 Full bandwidth pink noise is amplified to a level at the loudspeaker terminals corresponding to 1W as referenced to the nominal impedance.The average sound pressure level (dB-SPL) is measured at 1 metre from
the speaker in an anechoic environment.
2 Full bandwidth pink noise is amplified to a level at the loudspeaker terminals corresponding to the long-term rated power handling of the speaker.The average sound pressure level (dB-SPL) is measured at 1 metre
from the speaker in an anechoic environment.
3 Full bandwidth pink noise,meeting International Electrotechnical Commission (IEC) Standard #268-5, with a spectrum corresponding to average program material.
4 Full bandwidth noise,meeting the IEC Standard #268-5 is amplified to a level at the loudspeaker terminals corresponding to the power handling of the loudspeaker.The loudspeaker must show no visible damage or
measurable loss of performance after 100 hours of continuous testing.
