Bose FreeSpace 3

7
English
Channel 2
in Stereo
Channel 1
in Stereo
Refer to installation manual
PN254410 for proper installation
and operation instructions
FreeSpace 3
Acoustimass Module
®
Note: Jumpers required
for 70V/100V operation.
For transformer bypass,
remove jumpers from
transformer settings and
use 4-8Ω input.
SATELLITE
CONNECTIONS
4-8Ω
INPUT
STEREO
CH 2
STEREO
CH 1
SAT 1
SAT 2
MONO
USE JUMPERS
SAT 4
SAT 3
SAT 2
SAT 1
+
100W 50W 25W 12W NC
TRANSFORMER SETTINGS
+100V
+70V
COMM
MONO
70V/100V
INPUT___

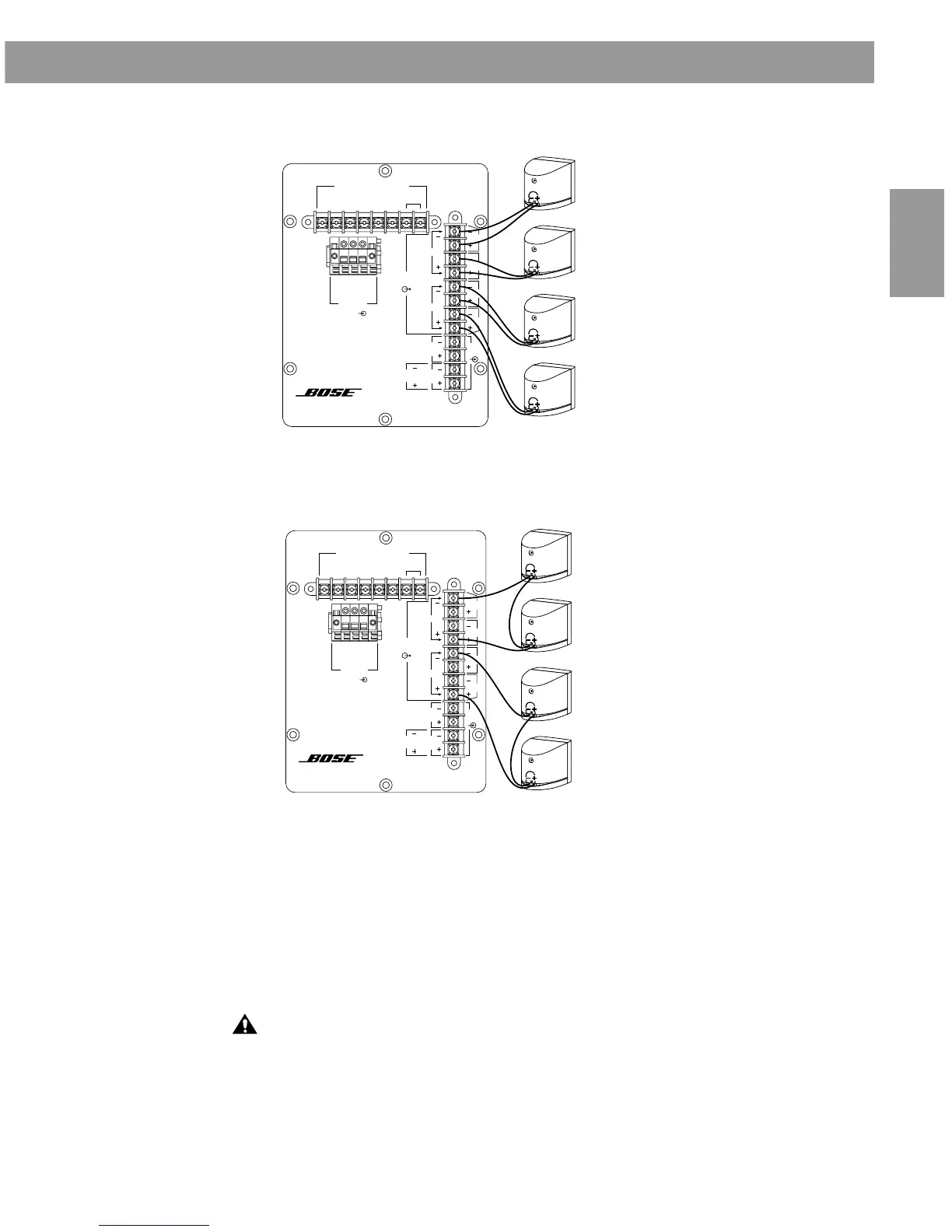

• Using 4 satellite speakers with direct connections
• Using 4 satellite speakers with daisy-chained connections
Channel 2
in Stereo
Channel 1
in Stereo
Refer to installation manual
PN254410 for proper installation
and operation instructions
FreeSpace 3
Acoustimass Module
®
Note: Jumpers required
for 70V/100V operation.
For transformer bypass,
remove jumpers from
transformer settings and
use 4-8Ω input.
SATELLITE
CONNECTIONS
4-8Ω
INPUT
STEREO
CH 2
STEREO
CH 1
SAT 1
SAT 2
MONO
USE JUMPERS
SAT 4
SAT 3
SAT 2
SAT 1
+
100W 50W 25W 12W NC
TRANSFORMER SETTINGS
+100V
+70V
COMM
MONO
70V/100V
INPUT___
2.4.1 Using other compatible Bose
®
speakers
You can use the FreeSpace
®
Acoustimass
®
module with other Bose
®
speakers, such as the FreeSpace Model 8, Model 32, Model 32SE
or FreeSpace 6 speakers. Just be sure to connect both the speak-
ers and the module directly to the amplifier, using separate chan-
nels.
Caution: Do not connect any speakers, other than FreeSpace
®
3
satellite speakers, directly to the module.
Installation
