Figure 1. Bass Channel Frequency Response Curve
Figure 2. Left/Right Channel Frequency Response Curve

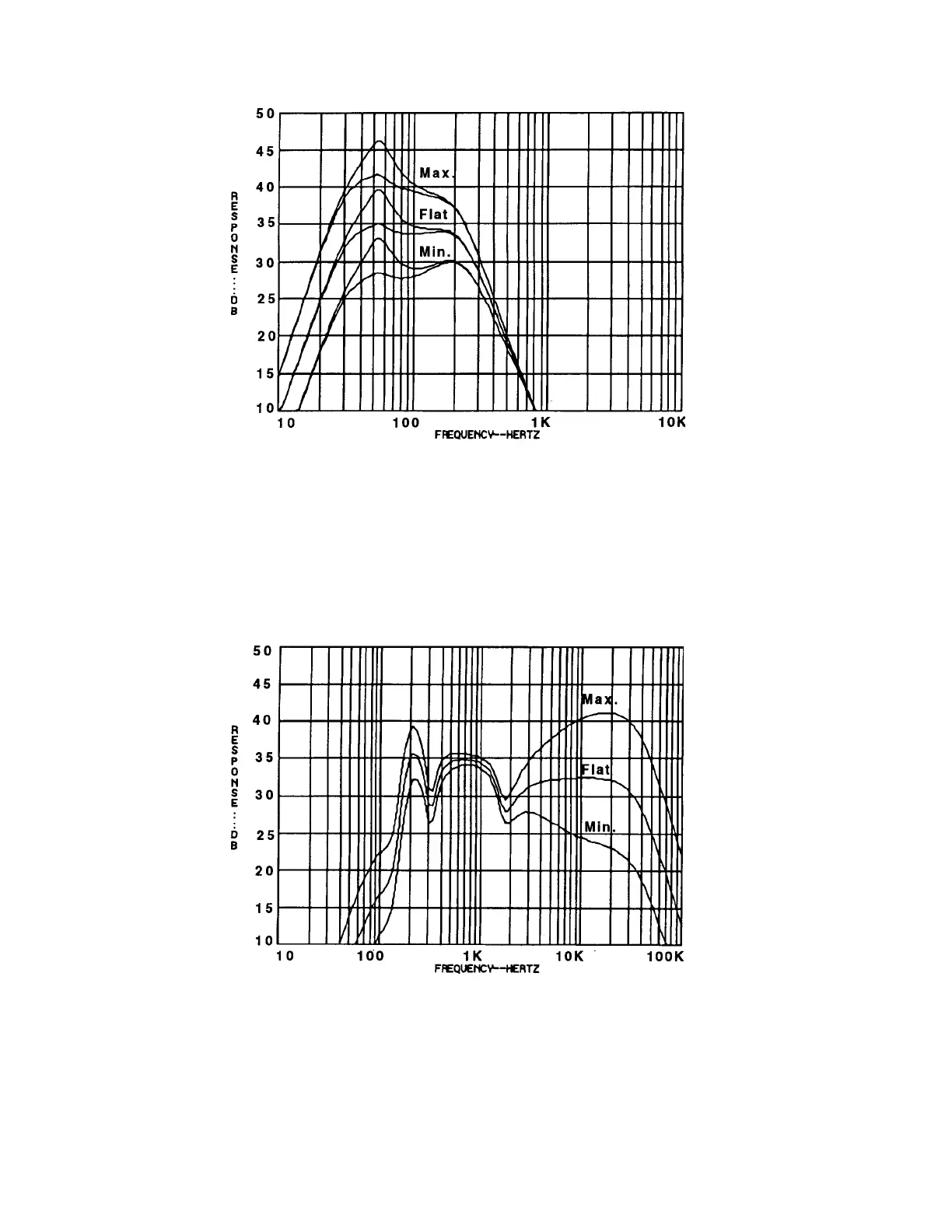

Frequency Response Curves
Bass channel frequency response curve with tone controls at min.,
max., and flat positions (for 30 and 200 mVrms input level)
Left/right channel frequency response with tone controls at min.,
max.,and flat positions.
